SkyLink ATOMS Series User Manual

NOTE
1. To avoid twisting the chain-cable / belt assembly, place the
holding hook [K4]
on the rail and insert the long end
through the turnbuckle connector as shown.
2. Hold the threaded end of the turnbuckle with one hand while
turning the turnbuckle with the other to tighten the
chain / belt until the chain / belt is approximately 5/16”
(8mm) above the base of the rail at its midpoint.
3. Remove the “U” pin from the turnbuckle.
4. Attach sprocket cover [J6] by clipping it onto the motor unit.
You have now finished assembling your garage door opener.
Please proceed to the installation section.
During future maintenance, ALWAYS pull the emergency
release handle to disconnect the trolley before adjusting
the chain.
K4
Remove
U pin
J6
5/16”(8mm)
Rail
Chain / Belt
Turn
Turnbuckle
Hold
Threaded End

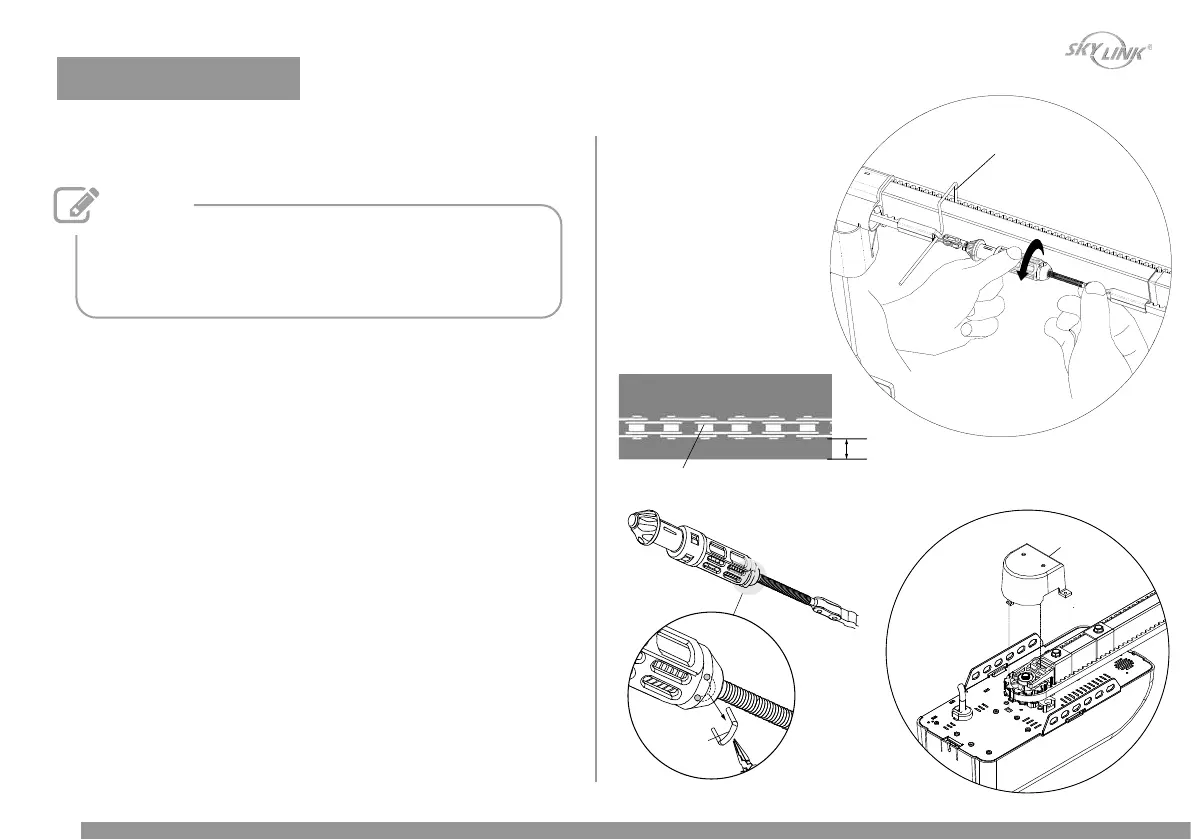

Step 4 – Tighten the chain / belt
10
ASSEMBLE THE RAIL

SkyLink ATOMS Series Specifications

General

Motor Type	DC
Horsepower	1/2 HP
Smartphone Control	Yes
Lighting	LED
Type	Garage Door Opener
Power Source	AC
Security	Rolling Code Technology
Operating Frequency	315 MHz
Compatibility	Most standard garage doors
Mounting Type	Ceiling Mount
Drive Type	Chain
Battery Backup	Yes
Safety Feature	Auto-reverse, Obstruction detection
Smart Features	IFTTT integration
Battery Type	12V
Number of Buttons	3
Operating Range	100 feet
