SkyLink EQ SERIES User Manual

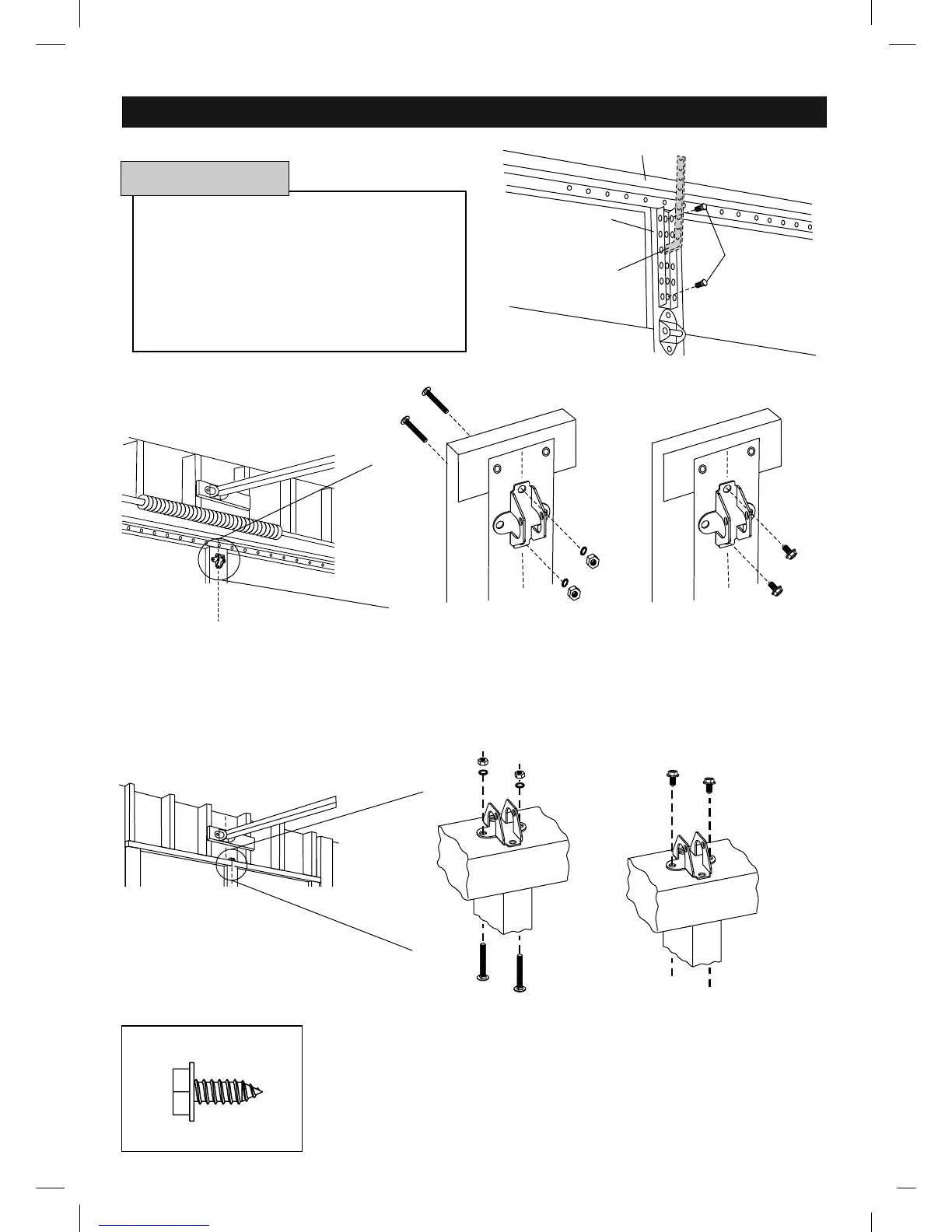

INSTALL THE DOOR BRACKET
Sectional Door
One-Piece Door
For wood doors, drill 5/16” holes
through the door and secure
bracket with 5/16” X 2” carriage
bolts, lock washers and nuts
(not provided)
Wood doors
Metal doors
For wood doors, drill 5/16” holes
through the door and secure
bracket with 5/16” X 2” carriage
bolts, lock washers and nuts
(not provided)
Align the door bracket on the centerline
2” to 4” below the top edge of the door,
or directly below any door structural
support.
Drill two 3/16” pilot holes, use 2 self-
threading screws to secure the door
bracket.
Drill two 3/16” pilot holes, use 2 self-
threading screws to secure the door
bracket.
Wood doors
Metal doors
Center the door bracket on the top of the door.
Actual Size
-11-
B3x2
B3x2
Lightweight garage doors are not designed
for use with garage door opener must be
equipped with a door reinforcement kit. Check
with the garage door manufacturer for more
information. Many door reinforcement kits
provide for direct attachment of the clevis pin
and door arm. In this case, you will not need
the door bracket, proceed to “Install the Door
Arms” section.
B3
Bolt 5/16”x2”
(not provided)
Bolt 5/16”x2”
(not provided)
Door
Bracket
Location
Door Arm connects
Directly to Vertical
Reinforcement
Hardware
(not provided)
Top of Door
CAUTIONCAUTION
