SkyLink EQ SERIES - INSTALL THE DOOR ARMS; Attach Emergency Release Rope; Connect Door Arm to Bracket; Connect Door Arm to Trolley

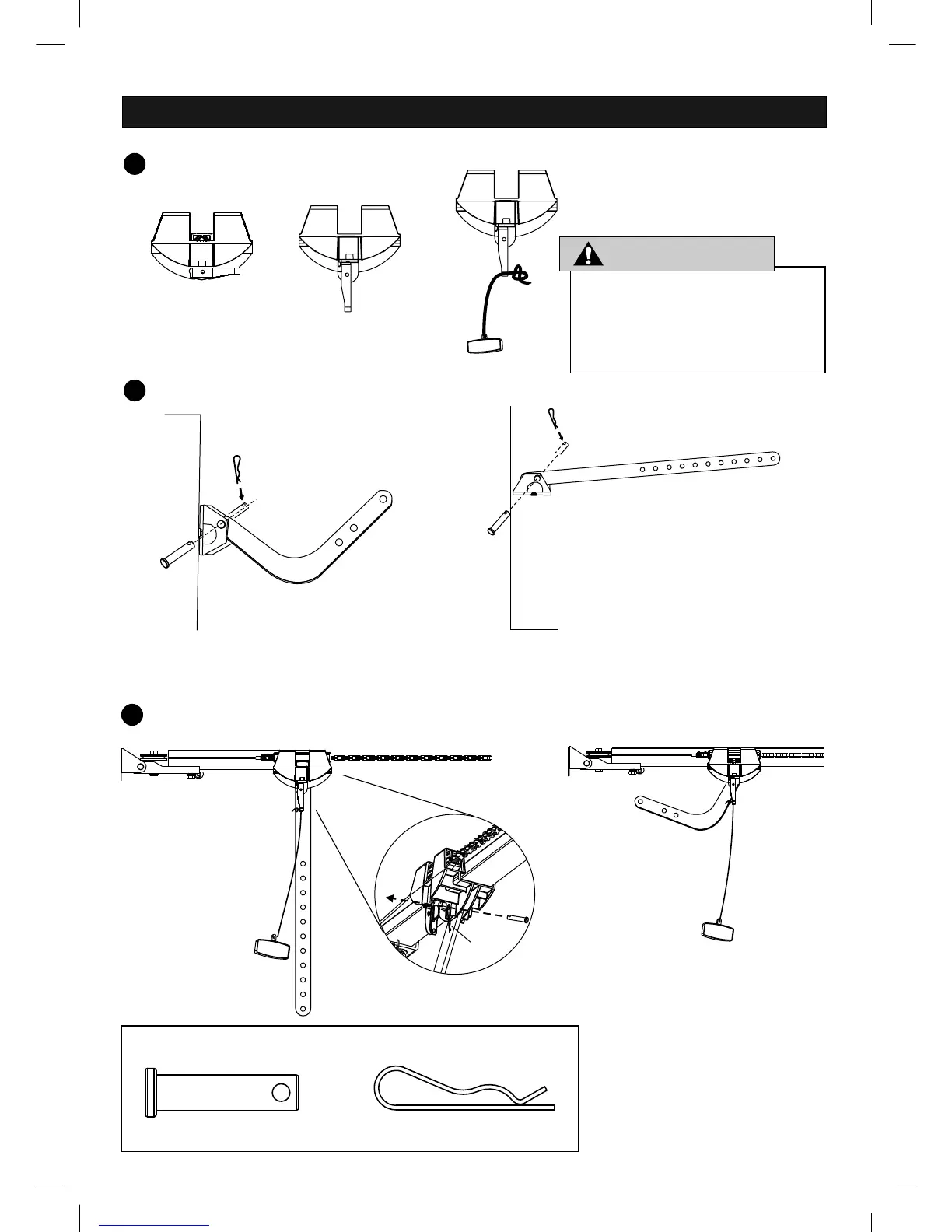

INSTALL THE DOOR ARMS
1
Attach Emergency Release Rope
1
Thread the red rope through the hole in
the trolley release handle and tie an
over-hand knot. Leave the trolley release
lever in the released position until further
testing is completed.
1
Connect the Door Arm to Door Bracket
2
Engaged
Released
Sectional Door
Sectional Door
Jamb Door
1
Connect the Door Arm to the Trolley
3
Connect the curved door arm to the door
bracket with clevis pin and hitch pin
Connect the straight door arm to the door
bracket with clevis pin and hitch pin
Connect the straight door
arm to the trolley with clevis
pin and hitch pin
Connect the curved
door arm to the trolley
with clevis pin and
hitch pin
Actual Size
B4
-12-
B6x1
B6x1
B4x1
B4x1
B6
Jamb Door
- Use extreme care when pulling
release handle. DO NOT use
handle to pull door open or closed.
- Never use emergency release
handle unless garage doorway is
clear of persons and obstructions.
Note: Emergency Release Handle should
hang 6 feet (1.5m) above floor. Adjust rope
length if it is necessary.
B6x1
B4x1
WARNINGWARNING
