SkyLink EQ SERIES User Manual

1

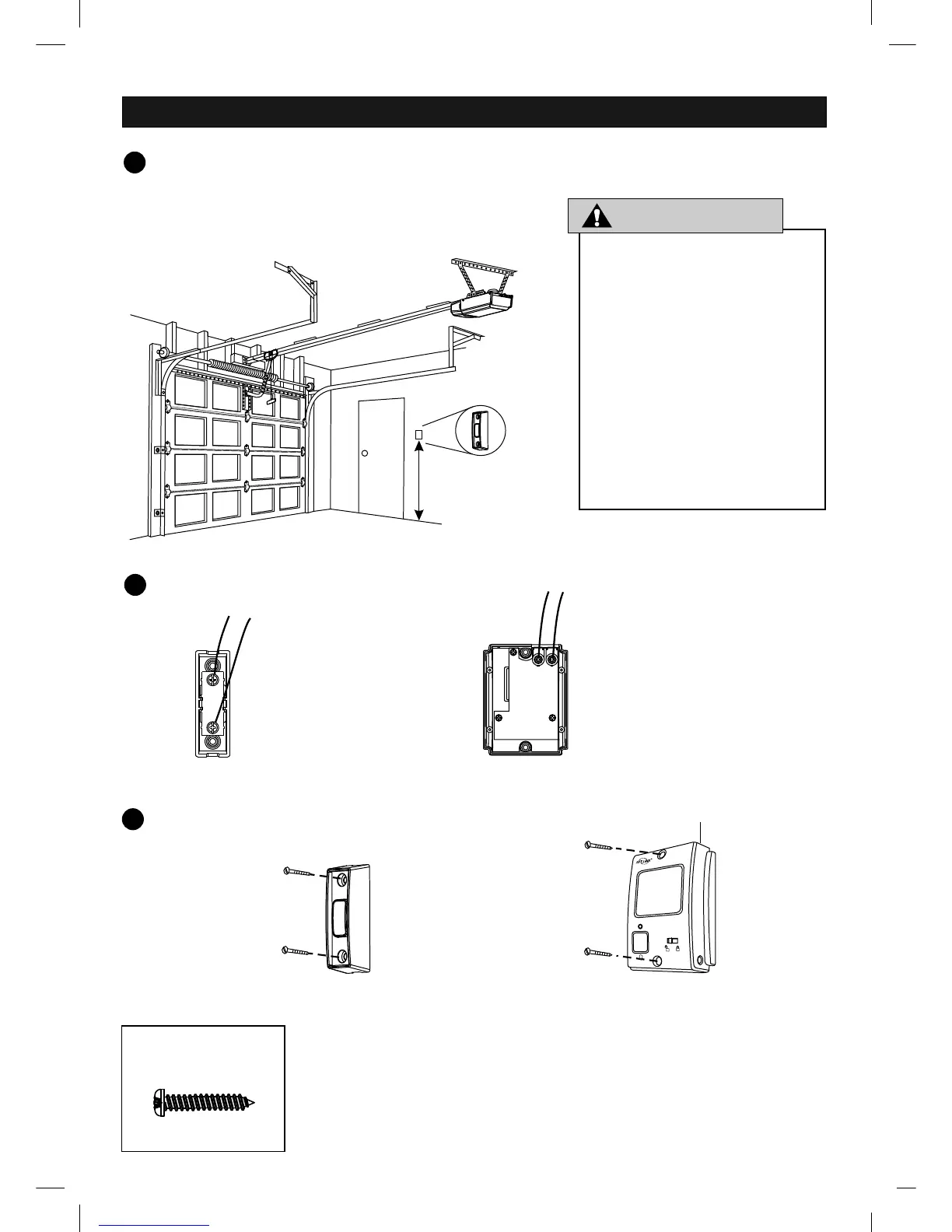

Install the Wall Button
INSTALL THE WALL BUTTON
1
1
Install the Wall Button
3
Locate the wall
button at least
5 feet above
the floor
Secure the Push Button
with two screws
C4x2
1
Wire the Wall Button
2
Connect the bell wires
to the 2 terminal screws.
Wires are not polarity
sensitivity
-14-
5 ft
- Wall Button must be installed
within sight of the garage door,
out of reach of children at a
minimum height of 5 feet
(1.5 meters), and away from all
moving parts of door.
- Be sure power is not connected
before installing the Wall Button.
- Wall Button should only be
activated when door can be seen
clearly, is properly adjusted and
there are no obstructions to door
travel.
- Always keep garage door in sight
until completely closed. Never
permit anyone to cross path of
closing garage door.
Connect the bell wires to
the 2 terminal screws.
Wires are not polarity
sensitivity
Secure the Wall Console
with two screws
C4x2
Actual Size
C4
Note: There are 2 types of Wall Button, Push Button,
or Wall Console. Refer to the model number you have
and determine which type is included in your kit.
