01/10/2016
9/26

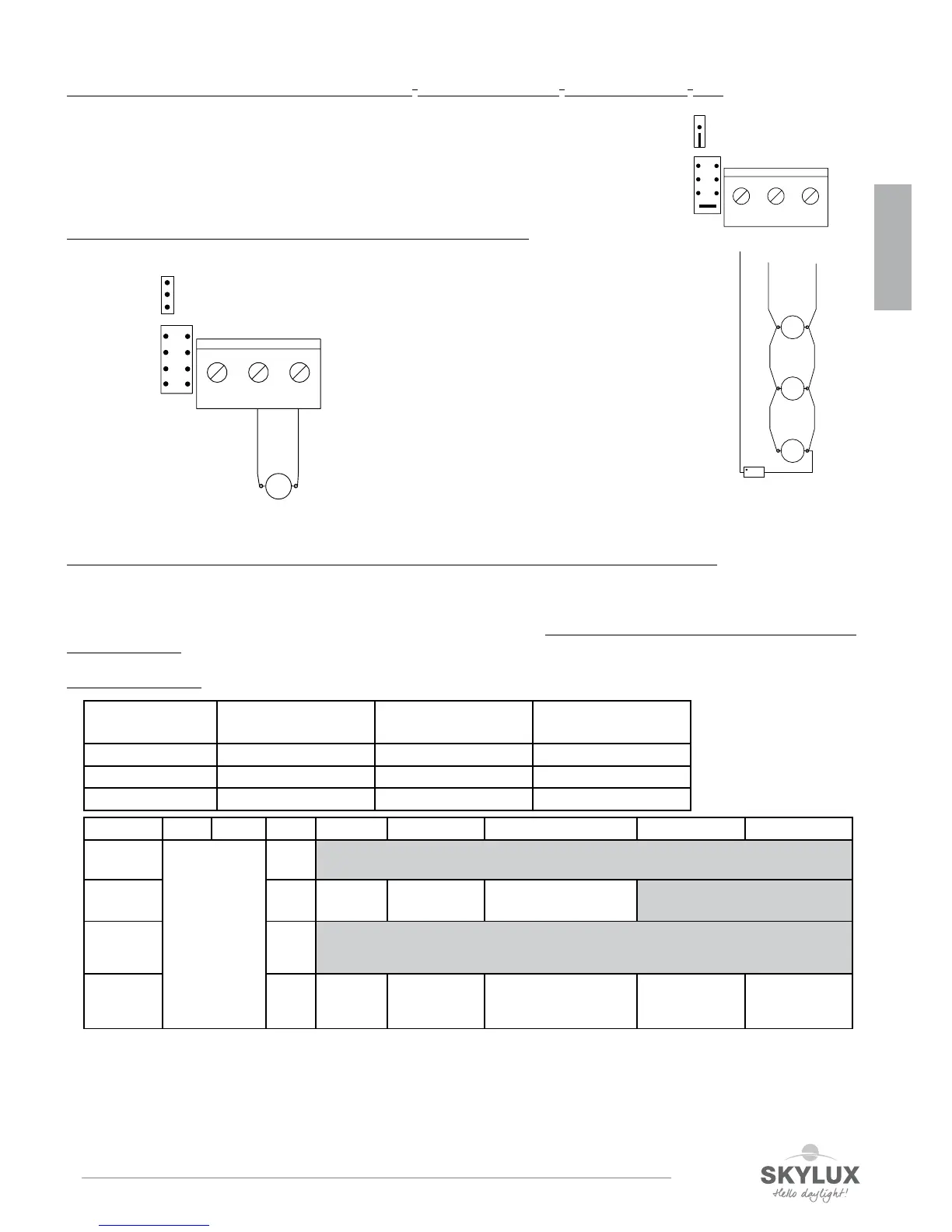

E_MH_Installation_instruction_Skycom_Skymax_CE
b. Jumper J2 in pos. “Ext 3 wire” (Setting for Skymax
®
standard / Cintramax
®
CE (old) / Skyvent
®
CE)
Unknown motor: line monitoring (1-3) with 3 wired motor connexion.
With jumper J3 (actuator output): you choose how many lines (number of 27KΩ)
you wish to detect - the same way as the motor line.
This setting demands 3 wire cable from motor output to motor.
c. Jumper J2/J3 is not mounted - No line monitoring for actuator output
Electronic current limiter, type LIP function and setting (Skylux 160°CE, Cintramax CE, Skymax CE)
The current limiter type LIP (mounted on the opening system) is used as current limiter for the actuator. On the LIP5, and
younger version max. 3 times overload cut outs in the same direction is allowed. After which it will not be possible to run
in this direction again, before the motor has run in the opposite direction. Please note that when opening, the red LED in
the LIP must light. This indicates that polarity of the actuator is correct.
Table of LIP settings
* SA Power LM Large - parallel operation: Jumper OPT mounted - both motors stop at the same time if one stops
because of overload.
** When DIP4 is OFF = Tandem Mode - both motors stop at the same time if no current ows in one (1,5 sec. reaction
time).
*** Required: an actuator with “read” sensor (3-wire sensor black cable included).
Actuator
24V Out
1
+
21
Line 1
-
3
2
3
4
J2
J3
Mn M2 M1
Actuator
Motor line monitor
Ext 3 wire monitor
(line 1)
27K Ohm
(Only last
actuator)
Opening system
Skylux 160° LM Skylux 160° LM Skylux 160°: Mini + RM
Cintramax Skymax
current limit
3A 4A 2,5A
DIP 1 ON OFF ON
DIP 2 OFF ON ON
Type DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8
LIP5
Single
See diagram
above
27K
ON
not present
LIP6 *
Double
ON OFF ** =
Tandem
27K ON M1-M2 delay=OFF not present
LIP7
Single
Basic
27K
ON
not present
LIP7
Single
Tandem
27K
ON
ON =
COM
OFF = Slave
ON = Master
OFF = Synchro Mode
ON = Tandem Mode
off: no delay
on: 7s delay
no function
1
2
