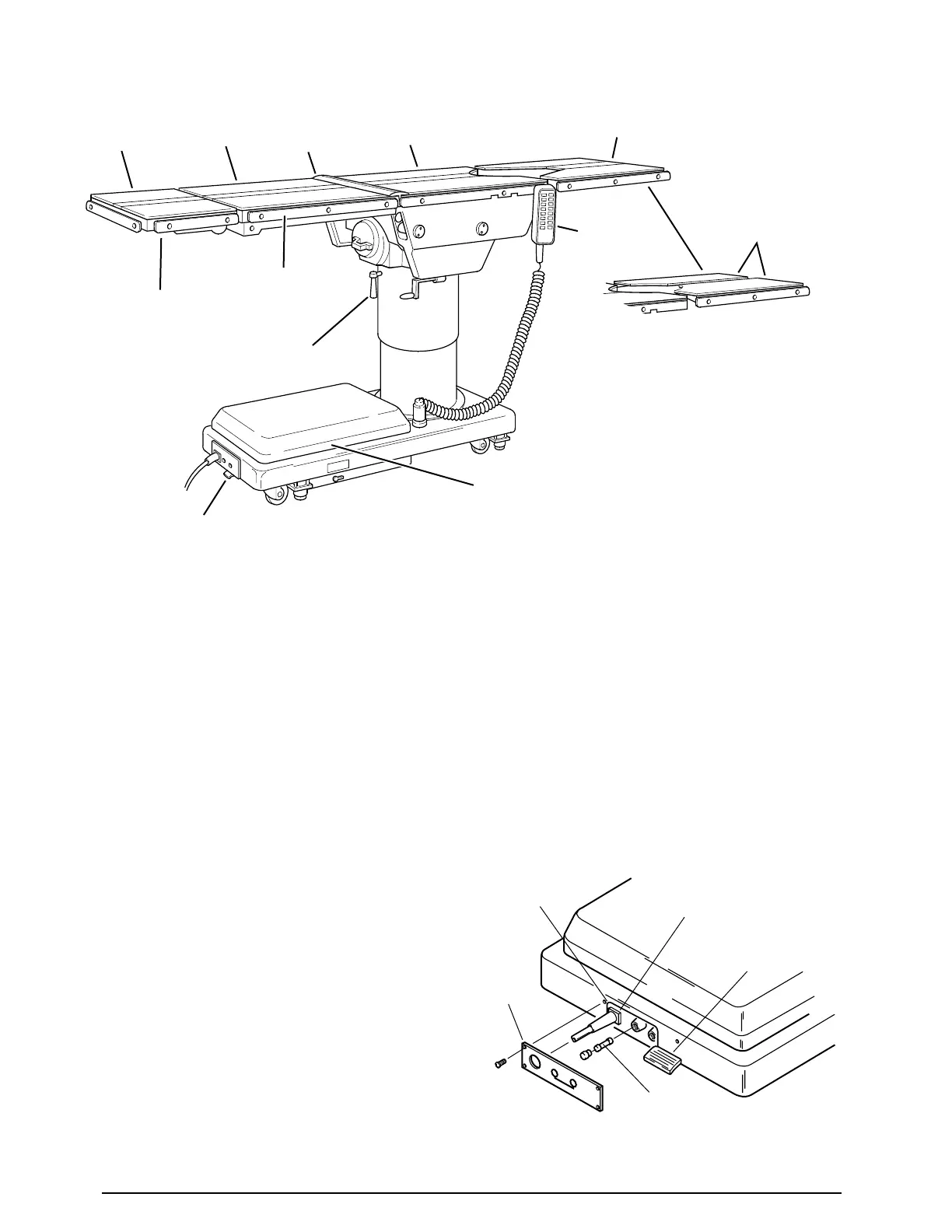

Figure 1-1. Elite 6000/6001(K)
1-2. Power Requirements
The Elite 6000/6001 series Surgical Tables re-
quire a 120VAC, 60 Hz electrical power supply.
The table is equipped with a 15 foot long power
cord with a standard three prong, hospital grade
plug. The electrical protection fuses are located
behind a cover plate in the electrical enclosure on
the front edge of the base. See figure 1-2. The
main power ON/OFF switch is located on the
electrical enclosure.
1-1. General
SKYTRON’s Elite 6000 and 6001 Series Surgical
Tables are electro-hydraulically operated, general
purpose surgical tables. See figure 1-1.
The two models are identical except for the leg
sections. The 6000 series has manually posi-
tioned, independent, split-leg sections. The 6001
series has a single, electro-hydraulically operated
leg section.
A"K" after the model number designates a built-in
kidney bridge.
An "R" after the model number designates the
return to level feature.
The electro-hydraulic positioning functions oper-
ated by the hand-held, push button, pendant con-
trol unit are: trendelenburg, lateral tilt, back section,
elevation, leg section (6001 only), flex/reflex, return
to level, and the floor lock/brake system.
Manual controls are provided for head section
positioning, table top rotation, emergency brake
release, leg section (6000) and kidney lift.
Figure 1-2. Power Switch and Fuse Location
SECTION I INTRODUCTION
MAIN POWER
SWITCH
SERVICE ACCESS
COVER
MODEL 6001(K)
HEAD SECTION
RELEASE BAR
(NOT SHOWN)
HEAD
SECTION
BACK
SECTION
OPT. KIDNEY
LIFT
SEAT
SECTION
LEG
SECTION
MODEL 6000(K)
SPLIT LEG
SECTIONS
PENDANT
CONTROL
SIDE
RAIL
TOP ROTATION
HANDLE
FUSE
MAIN POWER
SWITCH
POWER
CORD
ELECTRICAL
ENCLOSURE
COVER
PLATE
