4
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
LEG
UP
LEG
DOWN
FLEX REFLEX
RETURN
BRAKE
UNLOCK
POWER ON
REVERSE
TRENDELENBURG
LATERAL
TILT LEFT
BACK UP
TABLE UP
LEG UP
FLEX
RETURN
(KR ONLY)
TRENDELENBURG
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
REFLEX
BRAKE
RELEASE
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
*
PRESS TO LOCK BRAKES
BATTERY
BATTERY POWER
INDICATOR LIGHT
(AMBER)
BATT
BATTERY ON/OFF
SELECTOR BUTTON
*
BATTERY CHARGING
INDICATOR LIGHT
MAIN POWER SWITCH
ELECTRICAL ENCLOSURE
2-1. AC 120V Operation
a. Be sure the power cord is plugged into a
properly grounded, Hospital Grade, 120VAC out-
let. Make sure the power cord is routed to the outlet
to prevent it from being in the way of operating
personnel.
b. Depress the main power ON/OFF switch
located on the electrical enclosure. See figure 2-1.
The green AC 120V, Power-On indicator light
located in the lower right corner of the pendant
control will illuminate. See figure 2-2.

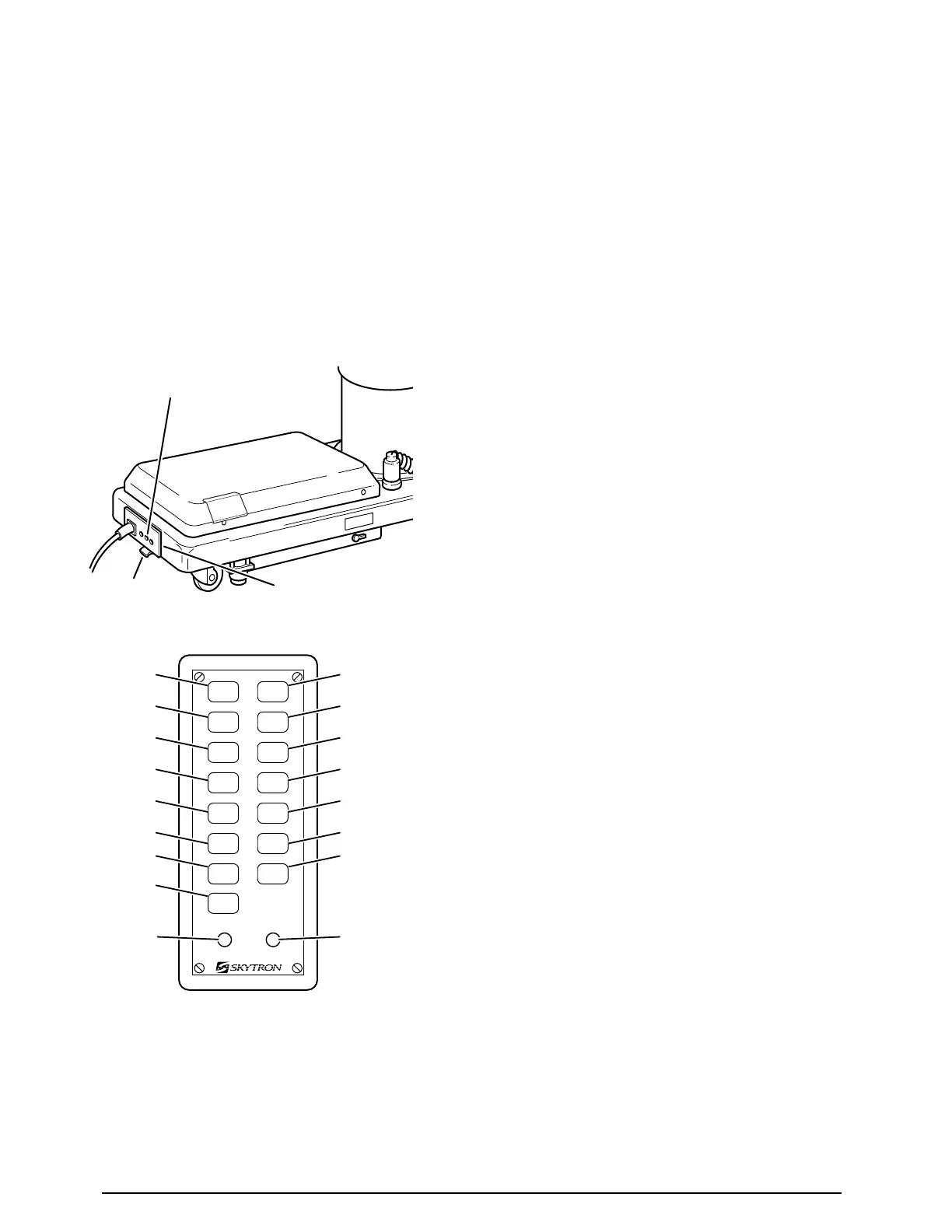

Figure 2-1. Main Power Switch
SECTION II BATTERY TABLE OPERATION
Figure 2-2. Pendant Control
c. The table is now ready for 120VAC operation.
Press the TABLE UP button on the pendant control
to set the table’s brakes. An electronic timer will
activate the brake system until the brakes are
completely set, approximately 8-10 seconds. Press
the desired function button to position the table.
NOTE
•If brakes fail to set, make sure the
Emergency Brake Release Lever is
tight (clockwise).
•If the Emergency Brake Release Valve
has been operated, the BRAKE UN-
LOCK button on the pendant control
will have to be pressed before brakes
will lock again.
NOTE
•Turning the Main Power Switch ON
will change the table operation to 120
VAC power regardless of the position of
the BATT button.
•If Battery operation is activated while
Main Power Switch is ON there will be
approximately a 4 second delay before
Battery operation activates.
2-2. Battery Operation
a. Make sure the green, AC 120V, Power-On
indicator light, on the hand-held pendant control, is
OFF. See figure 2-2. If the indicator light is ON,
depress the main power ON/OFF switch, located
on the electrical enclosure to turn AC120V opera-
tion OFF.
NOTE
The table will operate correctly on bat-
tery power with the power cord con-
nected to a wall outlet or disconnected.
b. Press the BATT button on the hand-held
pendant control. The amber BATTERY indicator
light, located in the lower left corner of the pendant
control, will illuminate. This confirms that the table
is now being operated with battery power.
c. The table is now ready to operate on battery
power. Press TABLE UP button on the pendant
control to set the table’s brakes. An electronic
timer will activate the brake system until the brakes
are completely set, approximately 8-10 seconds.
Press desired function button to position the table.
d. To extend the battery charge life, turn the
BATTERY power OFF with the pendant control
when the table is not going to be used.
