15. Insert the open end of the chain through the plastic
chain faring opening.
16. Thread the chain over the top sprocket, then down to
the second drive sprocket on the flywheel drive shaft.
17. Thread the chain over the large plastic pulley, then down
towards the footplate.
18. Insert the chain around the small pulley on the bungee/
chain block.
19. Thread the chain back up and over the small idler pulley
then back down to the chain/bungee block pulley.

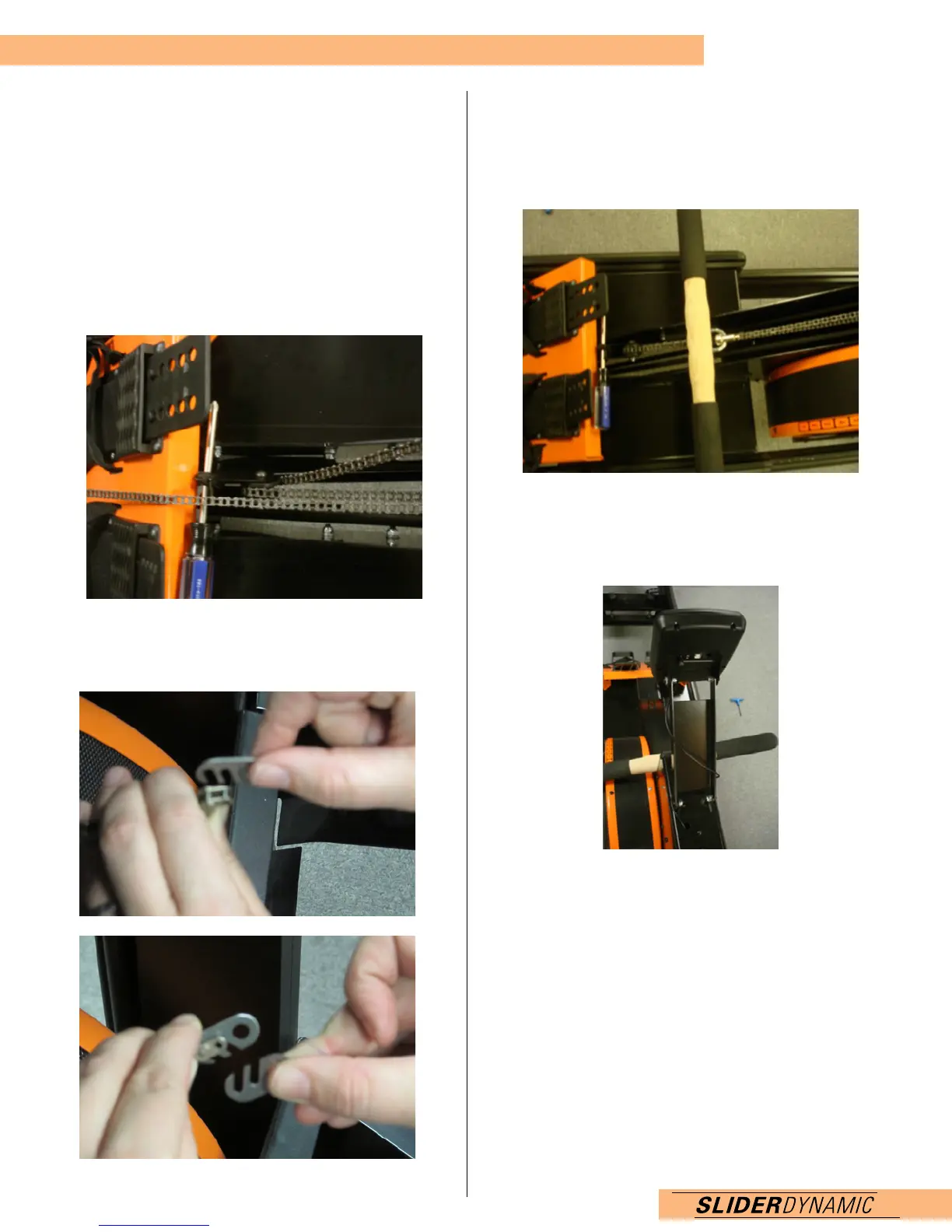

20. Holding the chain, insert one chain clip into the two
end links on the chain. Insert the other chain clip in the
opposite direction of the same two links the first chain
clip is attached to.
21. Thread the bolt through the connector plate and tighten
the nut.
22. Pull the handle to make the bungee/chain block plate
move up, and remove the screwdriver that was securing
the block in place.
23. Check that the chain is running smoothly and correctly
around all sprockets and pulleys. Use the threading
procedure picture as a guide.
24. Replace all covers and reattach monitor cable.
SLIDER CHAIN REPLACEMENT
