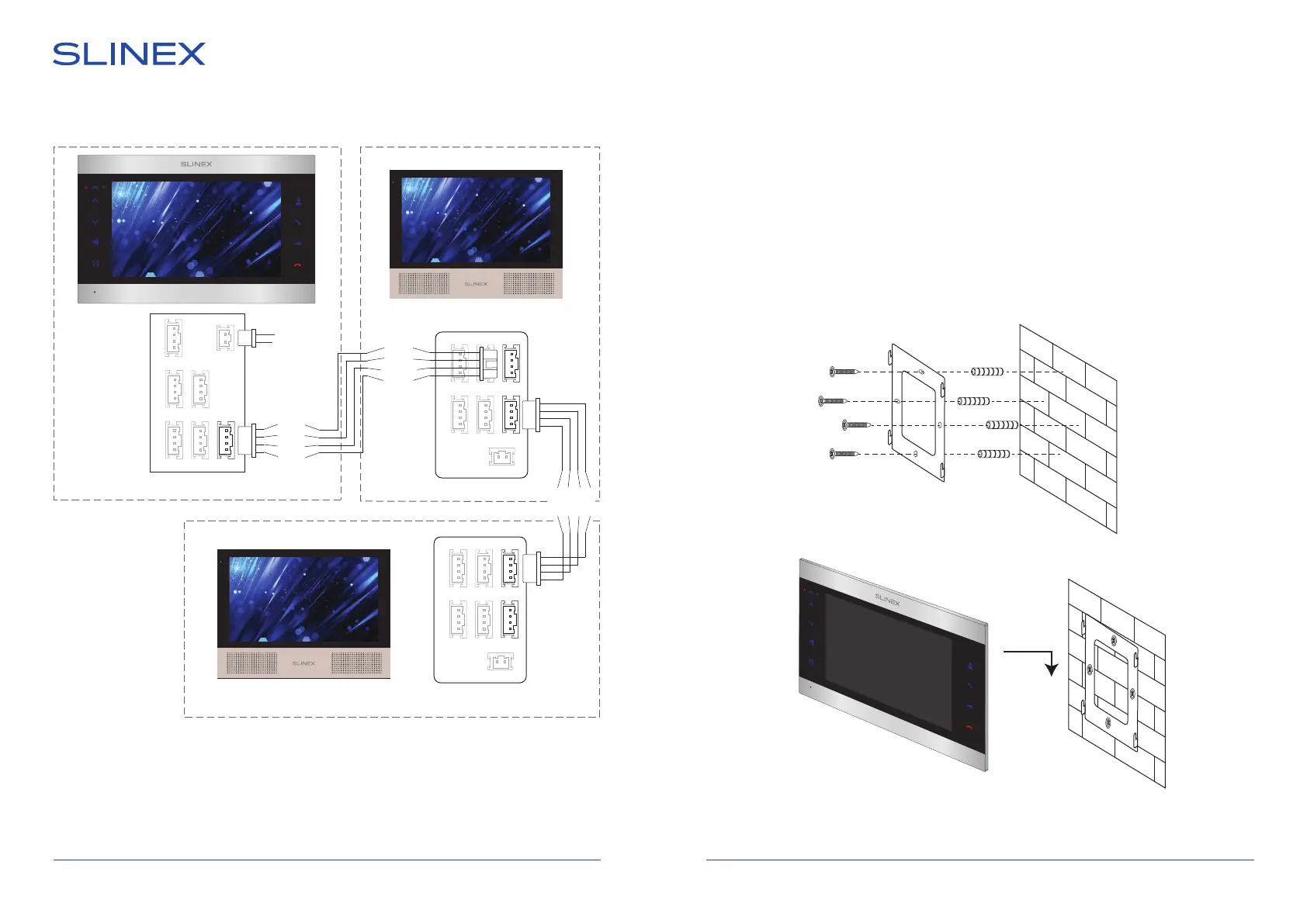

Diagram 2. SL-10N Cloud and Sonik 7 system connection.
SL-10N Cloud (Master)
SL-10N Cloud
7 8
Audio
GND
Data
Video
GND
+13,5 V
*
Door 1
Door 2
CCTV 1
CCTV 2
Input
Output
Power
Door 1
Door 2
CCTV 1
CCTV 2
Input
Output
Power
Sonik 7 (Slave)
Sonik 7 (Slave)
Notes:
* Use «Power» plug to connect external power supply +13,5 V. While use external power supply please
keep main power cord ~100-240 V disconnected from the outlet, otherwise it can damage monitor
circuits.
** Outdoor panels, cameras, power supplies, locks and motion sensors illustrated on the schemes are
optional devices and aren’t included into monitors kit.
Audio
GND
Data
Video
Audio
GND
Data
Video
4.3. Unit mount
1) Take the surface mount bracket from the kit and place it on 150-160 cm height.
2) Mark and drill four halls in the wall.
3) Take four anchors from the kit and hammer them into the drilled halls.
4) Fix surface mount bracket on the wall with four screws from the kit.
5) Connect all communication wires and x the monitor on the surface mount bracket.
Door 1
Camera 1
Door 2
Camera 2 Output
Power
RJ-45 connector
