Built-in measurements
The dimensions of the opening to be made on the cabinet for fitting the oven are
indicated in the figures. Ensure that the cabinet where the oven is to be installed is
able to support the weight of 30 kg for FI-A36 – FI-45; 45 kg. for FI-90 , FI-88 and
FI-70;. For the opening in the cabinet follow the respective dimensions of the type
of oven purchased, indicated in fig.01 for FI-70, fig.02 for FI-88 fig.03 for FI-90
fig.05 for FI-A36 and fig.04 for FI-45.
It is necessary to create an opening in the rear part of the bottom of the cabinet or
in the oven support shelf, to allow sufficient air to circulate for the cooling of the
oven during functioning.

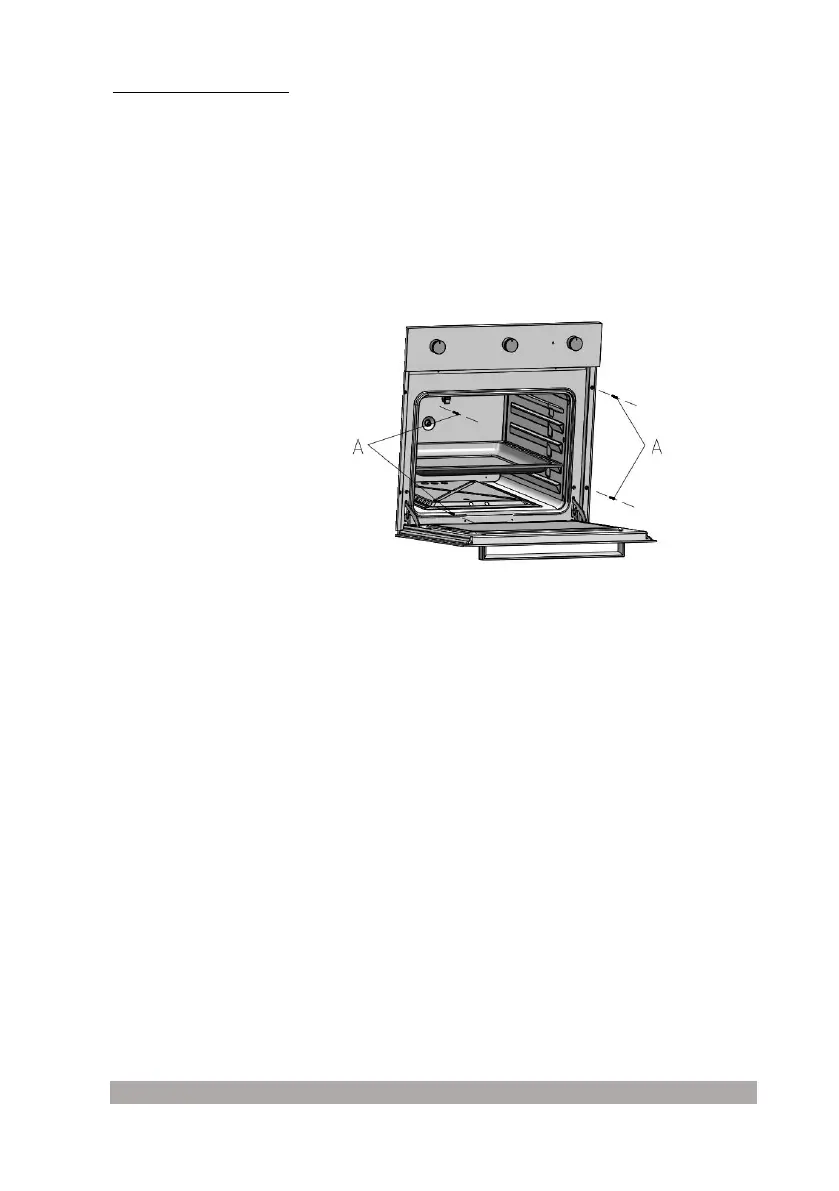

Ensure the oven is safely installed inside the cabinet. Use screws A for fixing of the
oven.
