Smappee Infinity - Connection diagram - 3 P (3*230 V)

Smappee Infinity – Installation manual – English
16

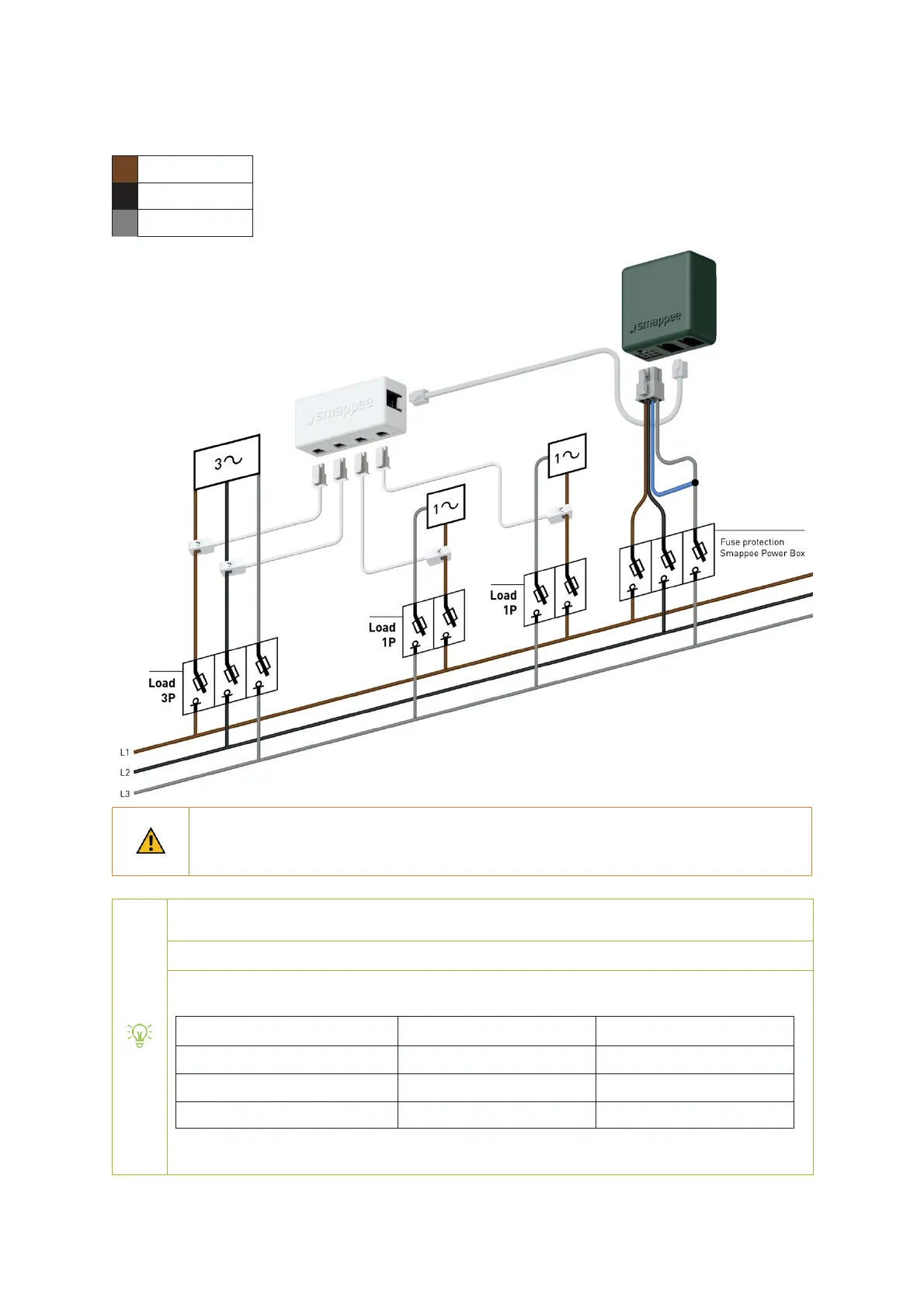

Connection diagram – 3P (3*230V)
WARNING: The above wiring and colour scheme is indicative. National regulations
must be respected. Wiring for Europe must be at least 1mm2 / 600 V and protected by
a 6A circuit breaker.
All 3-phase loads must be measured with L1 and L2 (grid, solar, sub circuits).
Never ever use "Reverse", install the Clamp always in the right direction.
For single phase loads, connect and configure the clamp as follows:
Single phase load powered by
Connect the clamp around
Phase measured by this CT
L1 and L3
L1
L1
L2 and L3
L2
L2
L1 and L2
L1
L3
Brown – L1
Black – L2
Grey – L3
