Smappee Infinity - Connection diagram - 2 P+N (2*120 V)

Smappee Infinity – Installation manual – English
17

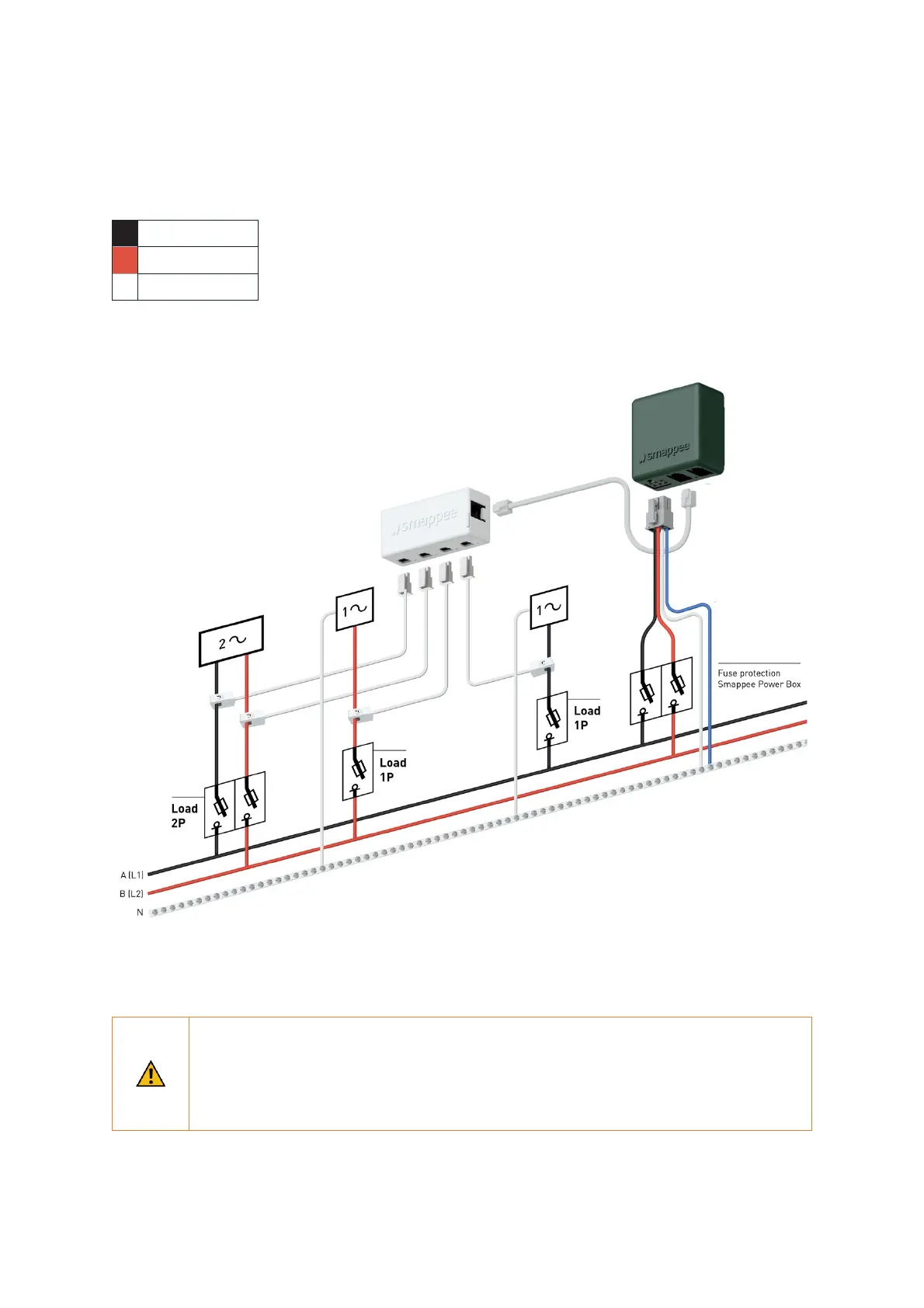

Connection diagram – 2P+N (2*120V)
Typical for the America’s region
Black – L1
Red – L2
White – Neutral
WARNING: The above wiring and colour scheme is indicative. National regulations
must be respected. Wiring for the Americas region should be minimum 18 AWG/600 V
UL-style 1015 protected by a 6 A circuit breaker and maximum 16 AWG/600 V UL-style
1015 protected by a 6 A or 10 A circuit breaker. The circuit breaker must comply with
UL 489.
