Smappee Infinity – Installation manual – English
11. Configuration of Smappee Output module
The Smappee Output module only works with a Smappee Infinity setup including a Genius as
gateway. It is not compatible with the Connect series.
You can connect up to 10 Smappee Input and/or Output modules to one gateway.

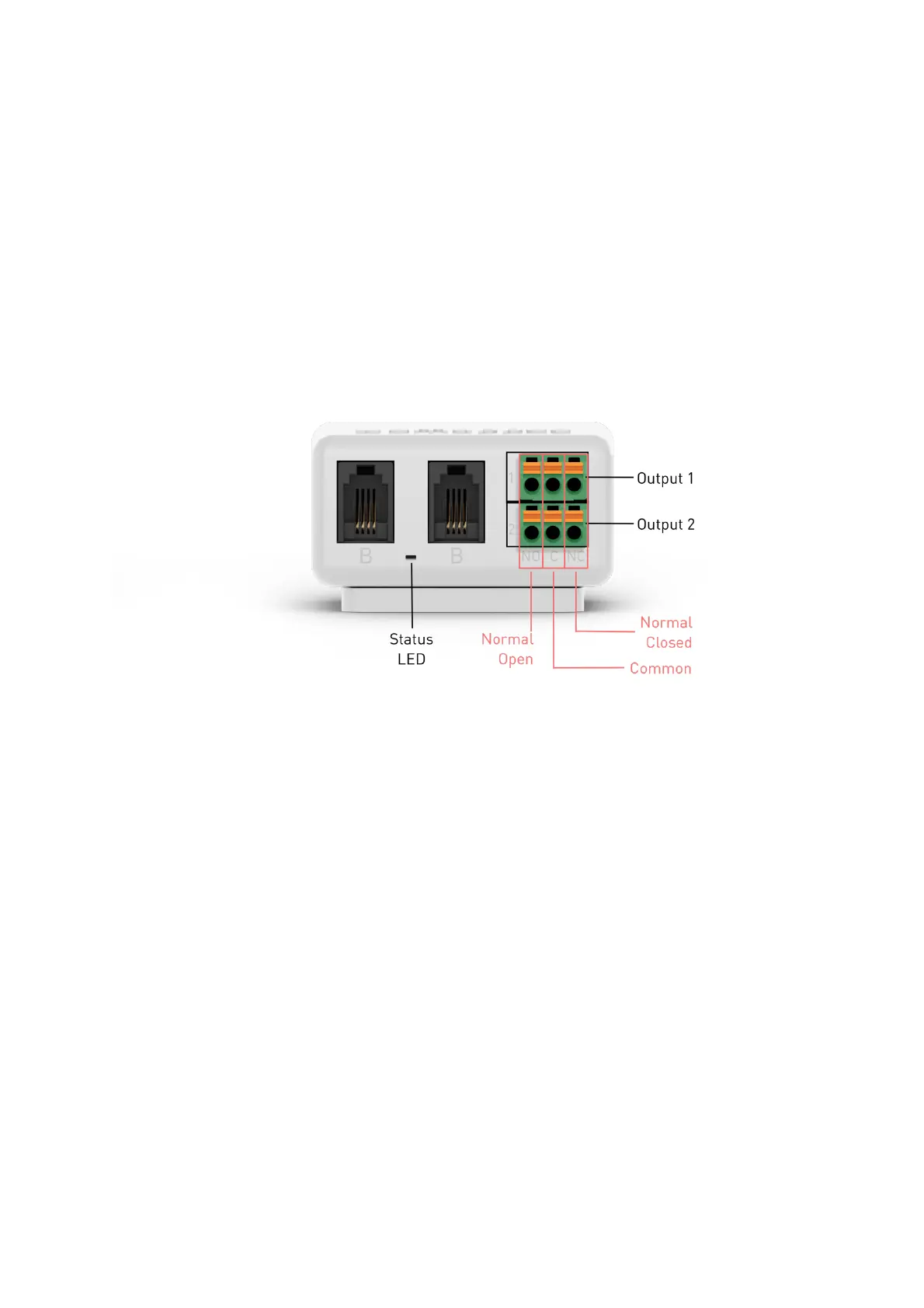

The Output module has 2 insulated relay outputs. Each output has 3 contacts per output: NO
(Normal Open), C (Common) and NC (Normal Closed). These 3 contacts are mounted horizontally
from left to right for each output.
