SMART Board X885 Troubleshooting Guide

SBX800 Troubleshooting Diagram
Back
Home
2.4.2 Powered by projector
Harness Cable.
Revision History
Powered by Projector
Harness cable.
Verify the connections on
the projector. Is the issue
resolved?
Ensure that the 5. V DC
jack is connected to the
correct spot (second spot
from the camera port) on
the pentray. Is the issue
resolved?
Use the known working
external power supply for
the pentray. Is the issue
resolved?
Yes
Yes
No
Yes

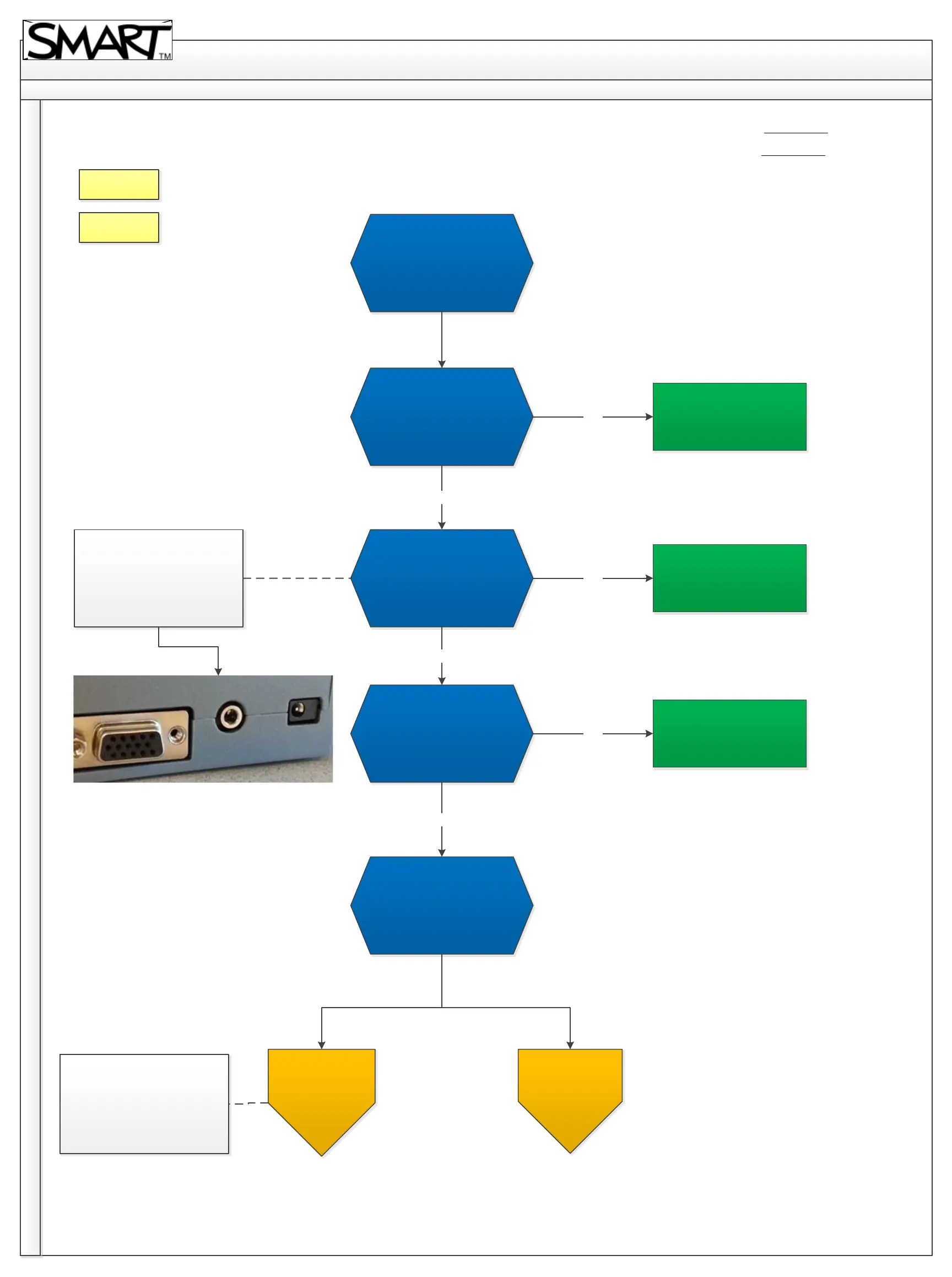

Here’s the diagram
Left: Camera port
Next to that (middle): 3.5 mm
audio jack
Next to that (right side): Power
connector
Issue resolved.
Issue resolved.
Issue resolved.
No
Try swapping and
connecting the projector
power cable. Part # 93-
00630-20. Is the issue
resolved?
No
- Please note that CAT5-XT800/
ECP/ WC8 module will not be
part of replacement pentray.
- CAT5-XT800/ ECP/ WC8 need
to be taken off before swapping
the pentray.
For further
assistance, contact
SMART Technical
Support.(A)
For further
assistance, contact
SMART Technical
Support.(B)
Contact Support
