age, the electric cables could be overloa-
ded. This may result in a fire. There is a risk
of an accident and injury.
Always replace faulty fuses with specified
new fuses of the correct amperage.
!
Only use fuses that have been approved
for smart vehicles and which have the cor-
rect fuse rating for the system concerned.
Components or systems could otherwise be
damaged.
!
Make sure that no moisture can enter the
fuse box when the cover is open.
The electrical fuses disconnect defective cir-
cuits. If a fuse blows, all the connected com-
ponents and their functions will fail.
Blown fuses must be replaced with fuses of
the same rating, which you can recognise by
the colour and fuse rating. The fuse ratings
are listed in the fuse allocation chart
(Y page 210).
If new fuses blow, the cause for this must be
diagnosed and rectified at a qualified spe-
cialist workshop.
Preparing the vehicle to change a fuse
X
Apply the parking brake.
X
Switch off all electrical consumers.
X
Turn the key to position u in the ignition
lock and remove it.
X
Check whether all indicator lamps in the
instrument cluster are off.

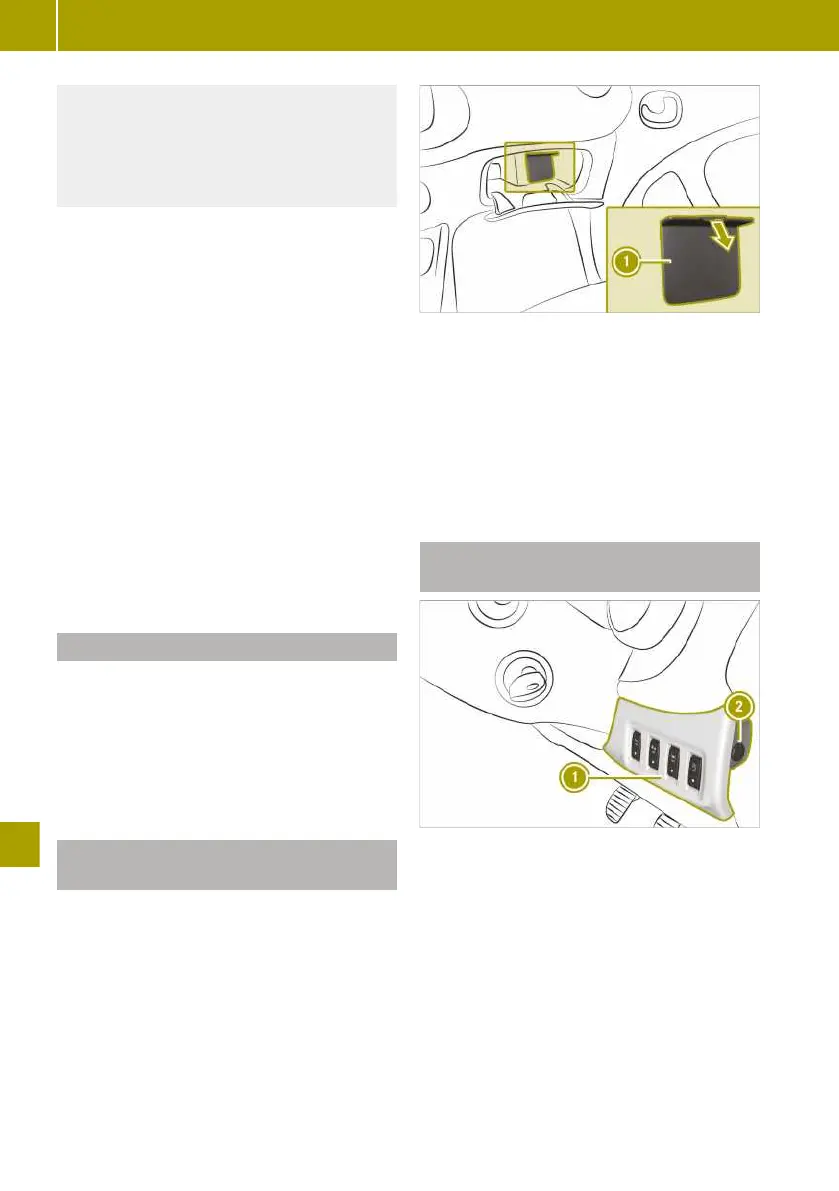

Replacing a fuse (left-hand drive vehi-
cle)
!
Do not use a pointed object such as a
screwdriver to open the cover in the dash-
board. You could damage the dashboard or
the cover.
X
Open the front-passenger door.
X
Open the glove compartment.
X
To open: open cover : in the direction of
the arrow.
X
Replace the faulty fuse.
X
To close: insert and fold in cover : until it
engages.
X
Close the glove compartment.
Replacing a fuse (right-hand drive
vehicle)
X
Open the driver’s door.
X
To open: turn quick-release fastener ; by
90° using a suitable object.
X
Fold down cover :.
X
Replace the faulty fuse.
X
To close: close cover :.
X
Close quick-release fastener ;.
182
Changing fuses
