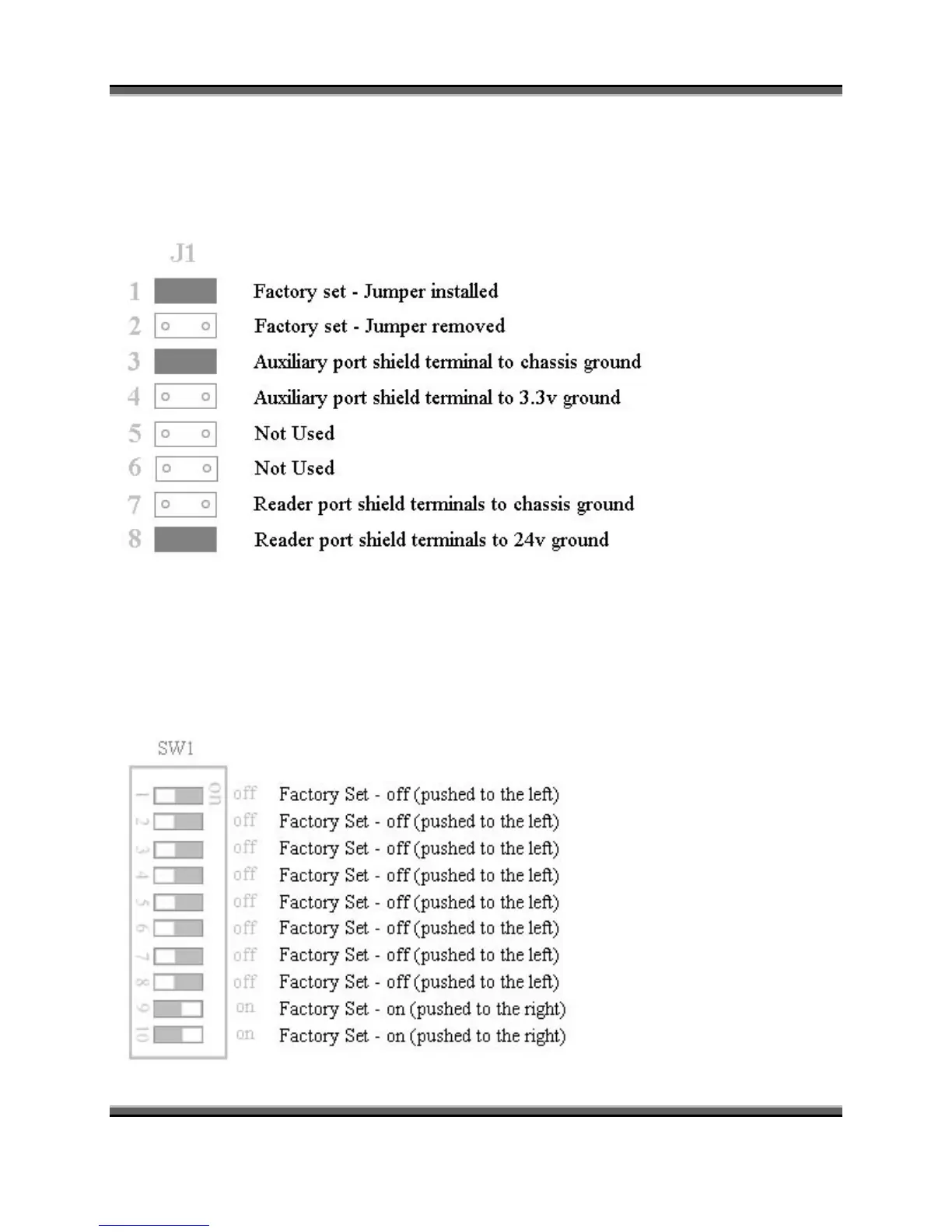

7.2.1 S-netx Jumper Block J1 – Shield Termination Select
Jumper block J1 is used to select the shield termination for the reader port and auxiliary port.
Jumper block J1 is located near the bottom left-hand side of the S-netx CPU/Reader interface
board. The default settings are as shown.
7.2.2 S-netx Switches SW1 – Auxiliary Port Configuration
Switch block SW1 is located near the bottom left-hand side of the S-netx CPU/Reader interface
board. Switch block SW1 controls the setup for the Auxiliary Port. The setup selection for SW1
is factory set and must not be changed.
