7.2.3 S-netx Switches SW2, SW3, SW4, SW5 and SW6 – Not Used

Theses switches are either not used or set through software configuration only. Their settings on

the board are not recognized.

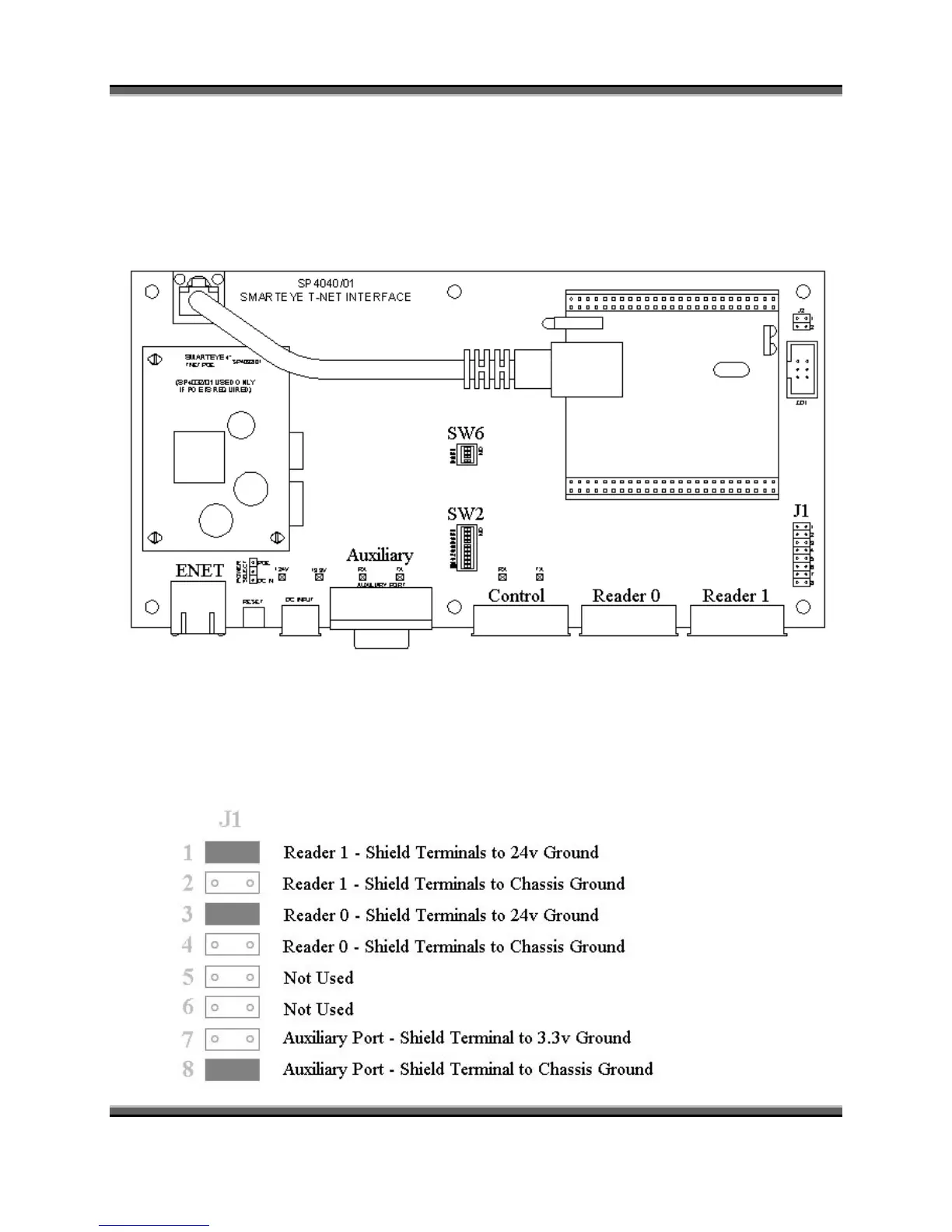

7.3 T-netx Switch and Jumper Diagram

7.3.1 T-netx Jumper Block J1 – Drain Termination

Jumper block J1 is located in the lower right-hand corner of the T-netx CPU/Reader

Interface board. This jumper block is used to select how the shield is terminated for each

of the three ports (two reader ports and auxiliary port). The factory defaults are shown.
