SMC Networks Barricade SMC7904WBRA - Confirm

S
ETUP
W
IZARD
4-7
Confirm

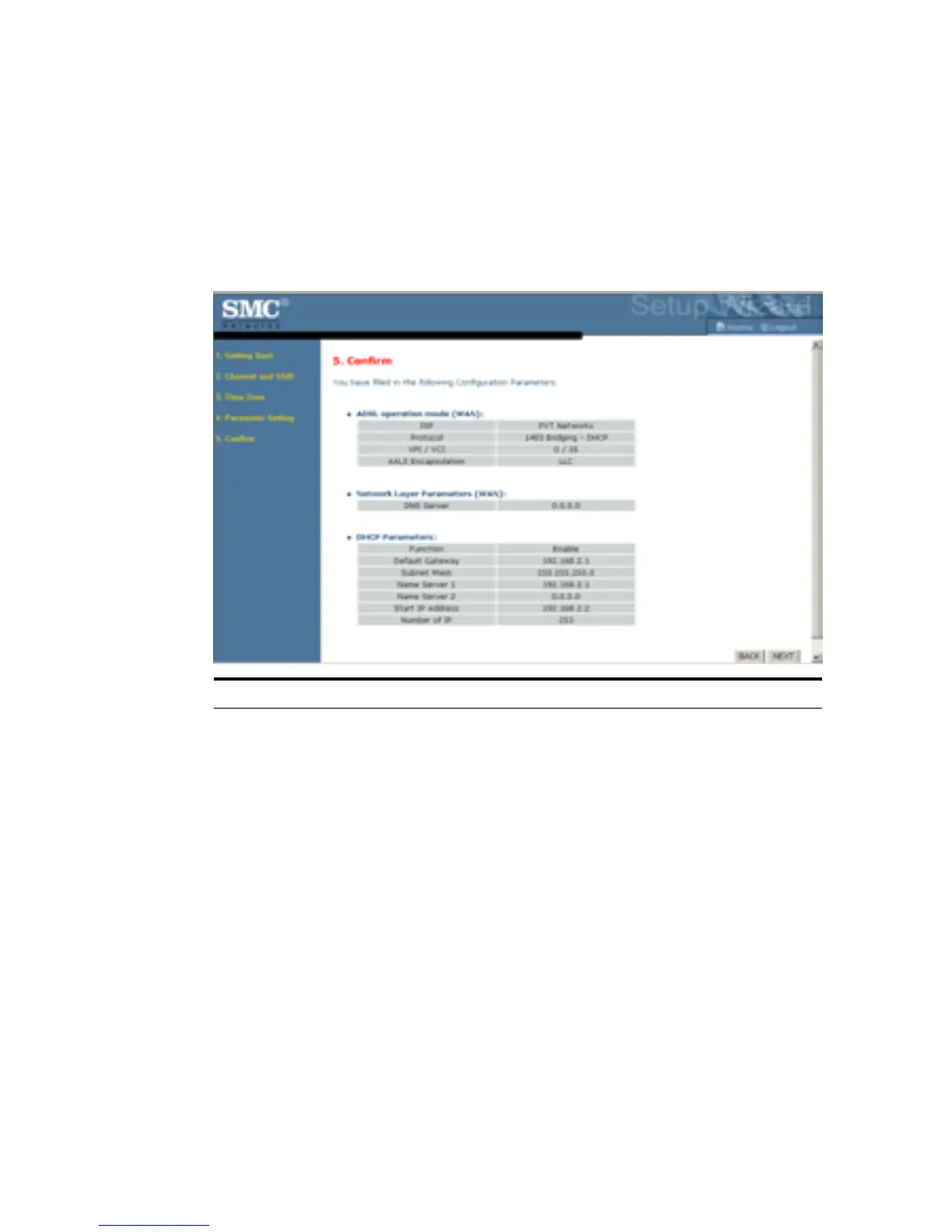

The Confirm page shows a summary of the configuration parameters.
Check ADSL operation mode (WAN), Network Layer Parameters (WAN)
and ISP parameters are correct.
Parameter Description
ADSL Operation Mode
(WAN)
ISP The type of ISP you have selected.
Protocol Indicates the protocol used.
VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI).
AAL5 Encapsulation Shows the packet encapsulation type. Go to page 4-23 for
a detailed description.
Network Layer
Parameters (WAN)
IP Address WAN IP address (only displayed if you have static IP).
Subnet Mask WAN subnet mask (only displayed if you have static IP).
Default Gateway WAN gateway (only displayed if you have static IP).
DNS Server The IP address of the DNS server.
