A
DVANCED
S
ETUP
4-37

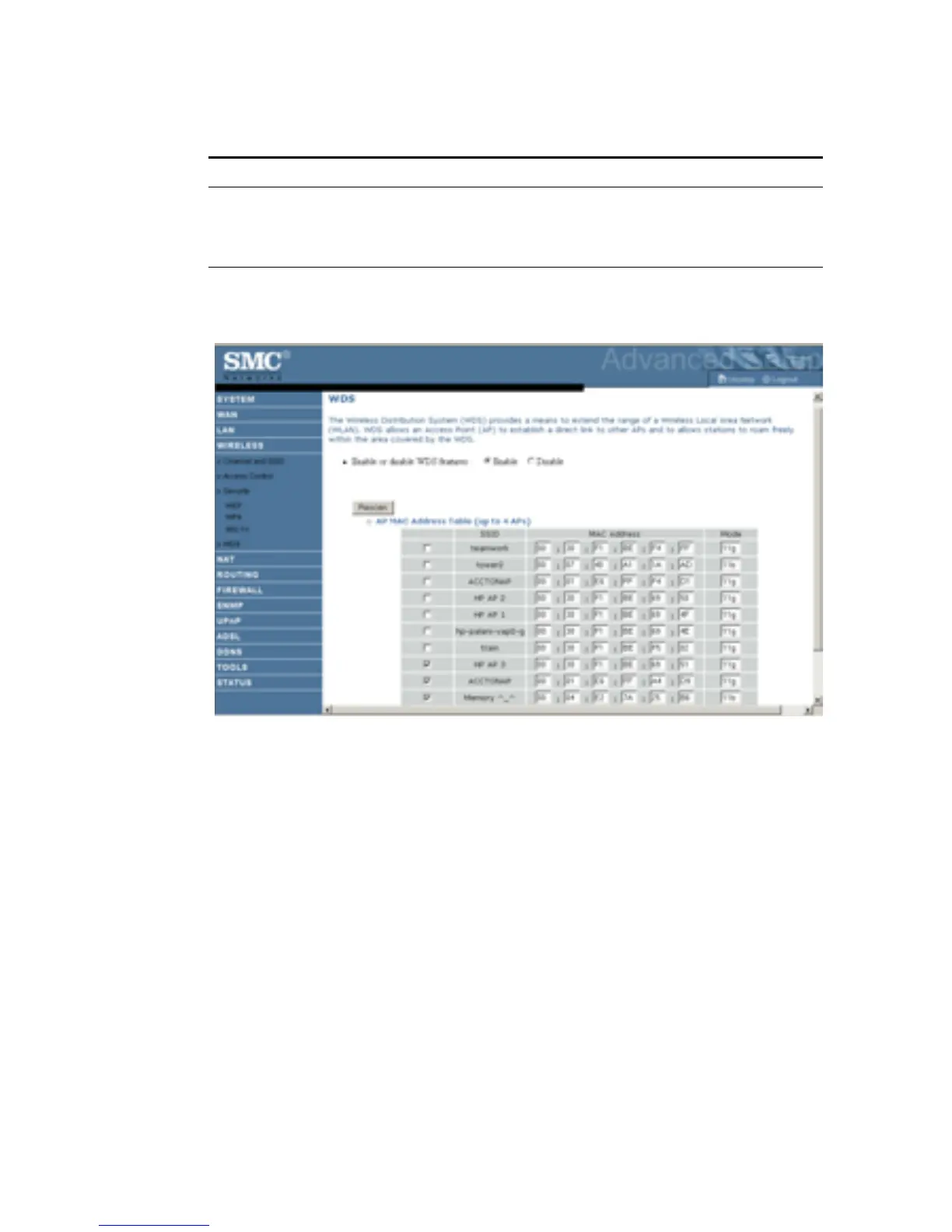

WDS (Wireless Distribution System)
The WDS provides a means to extend the range of a Wireless Local Area
Network (WLAN). WDS allows an access point to establish a direct link to
other access points, and stations to roam freely within the area covered by
the WDS. (Default: Enable or disable WDS features - Disable)
Notes: 1. Be sure that all access points with the same WDS links should
use the same operation “Mode” (802.11b or 802.11g) and radio
“Channel” number.
2. Choosing “Auto” of the communication channel is not
suggested for using WDS. (See “Channel and SSID” on page
4-32.)
Secret Key The secret key shared between the authentication server and its
clients.
NAS-ID Defines the request identifier of the Network Access Server.
Parameter Description
