LED Indicators
The power and port LED indicators on the front panel are illustrated by
the following figure and table.

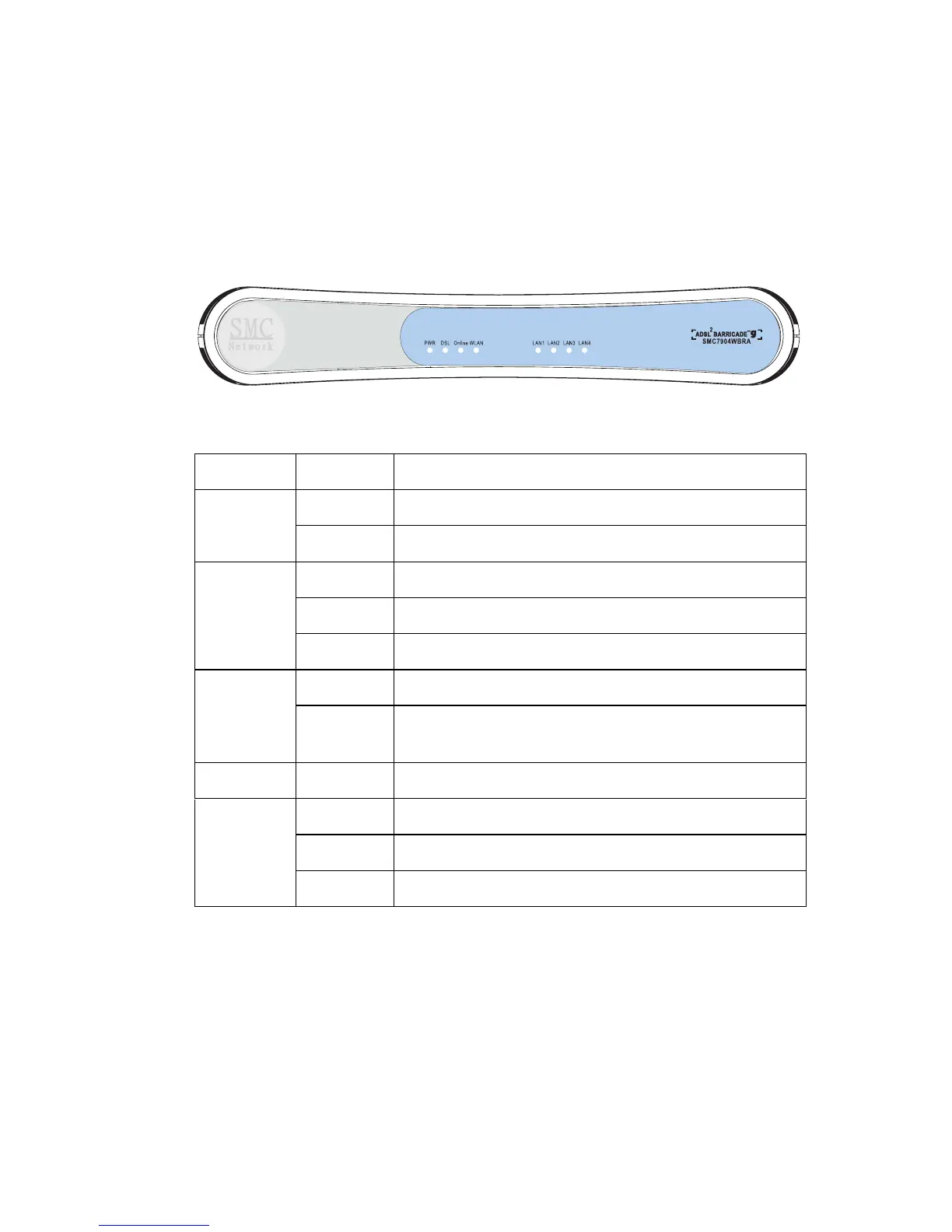

Figure 2-2. Front Panel
LED Status Description
PWR On The Barricade is receiving power. Normal operation.
Off Power off or failure.
DSL On ADSL connection is functioning correctly.
Flashing The Barricade is establishing an ADSL link.
Off ADSL connection is not established.
Online Flashing PPPoE/PPPoA line is sending or receiving data.
Off There is no data transmission on the PPPoE/PPPoA
connection.
WLAN Flashing The WLAN port is sending or receiving data.
LAN
(4 LEDs)
On Ethernet connection is established.
Flashing The indicated LAN port is sending or receiving data.
Off There is no LAN connection on the port.
