ADSL C
ABLE
B-5
ADSL Cable
Use standard telephone cable to connect the RJ-11 telephone wall outlet to
the RJ-45 ADSL port on the Barricade.
Caution: Do not plug a phone jack connector into an RJ-45 port.
Specifications
Wiring Conventions
For ADSL connections, a cable requires one pair of wires. Each wire is
identified by different colors. For example, one wire might be red and the
other, red with white stripes. Also, an RJ-11 connector must be attached to
both ends of the cable.
Each wire pair must be attached to the RJ-11 connectors in a specific
orientation. The following figure illustrates how the pins on the RJ-11
connector are numbered. Be sure to hold the connectors in the same
orientation when attaching the wires to the pins.

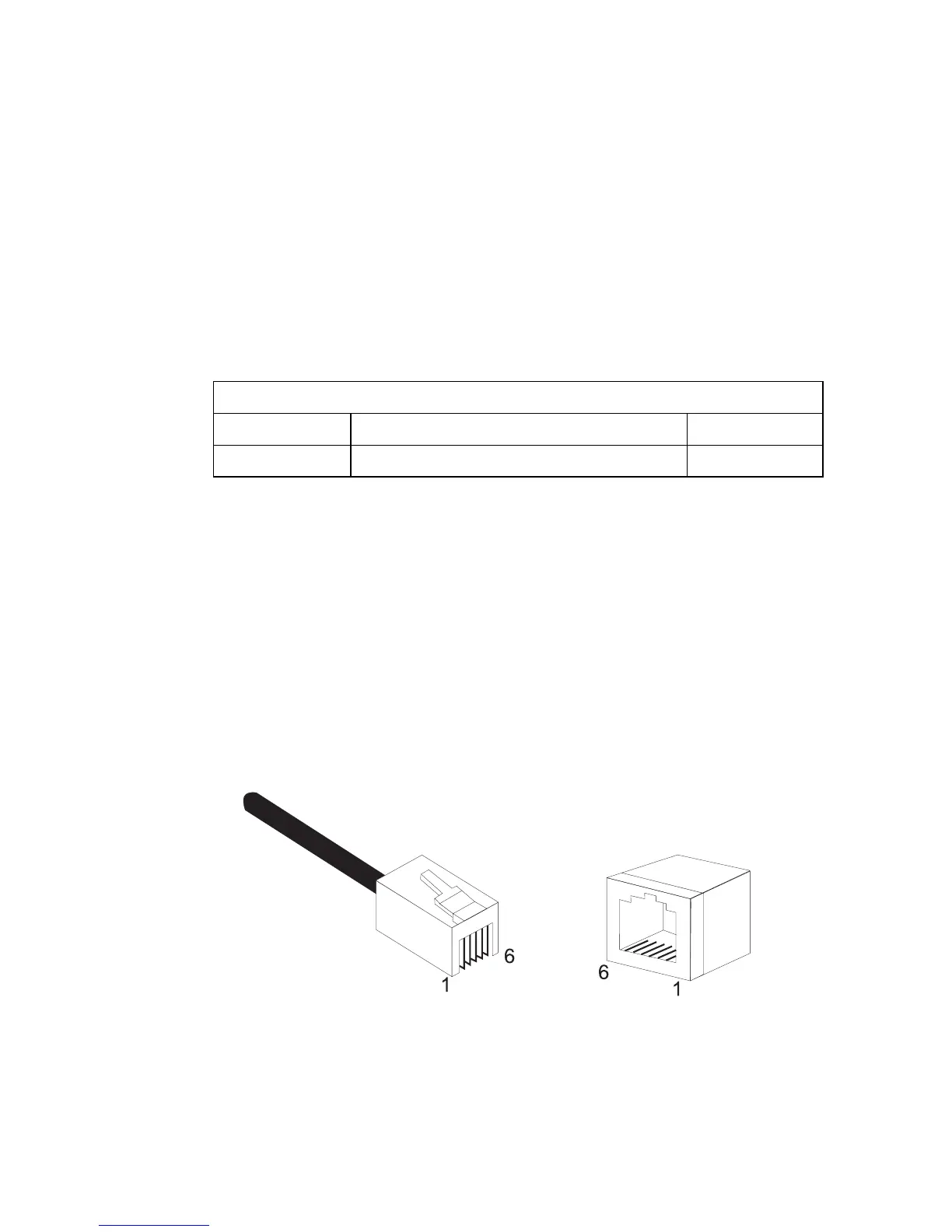

Figure B-2. RJ-11 Connector Pin Numbers
Cable Types and Specifications
Cable Type Connector
ADSL Line Standard Telephone Cable RJ-11
