C
ABLES
B-6

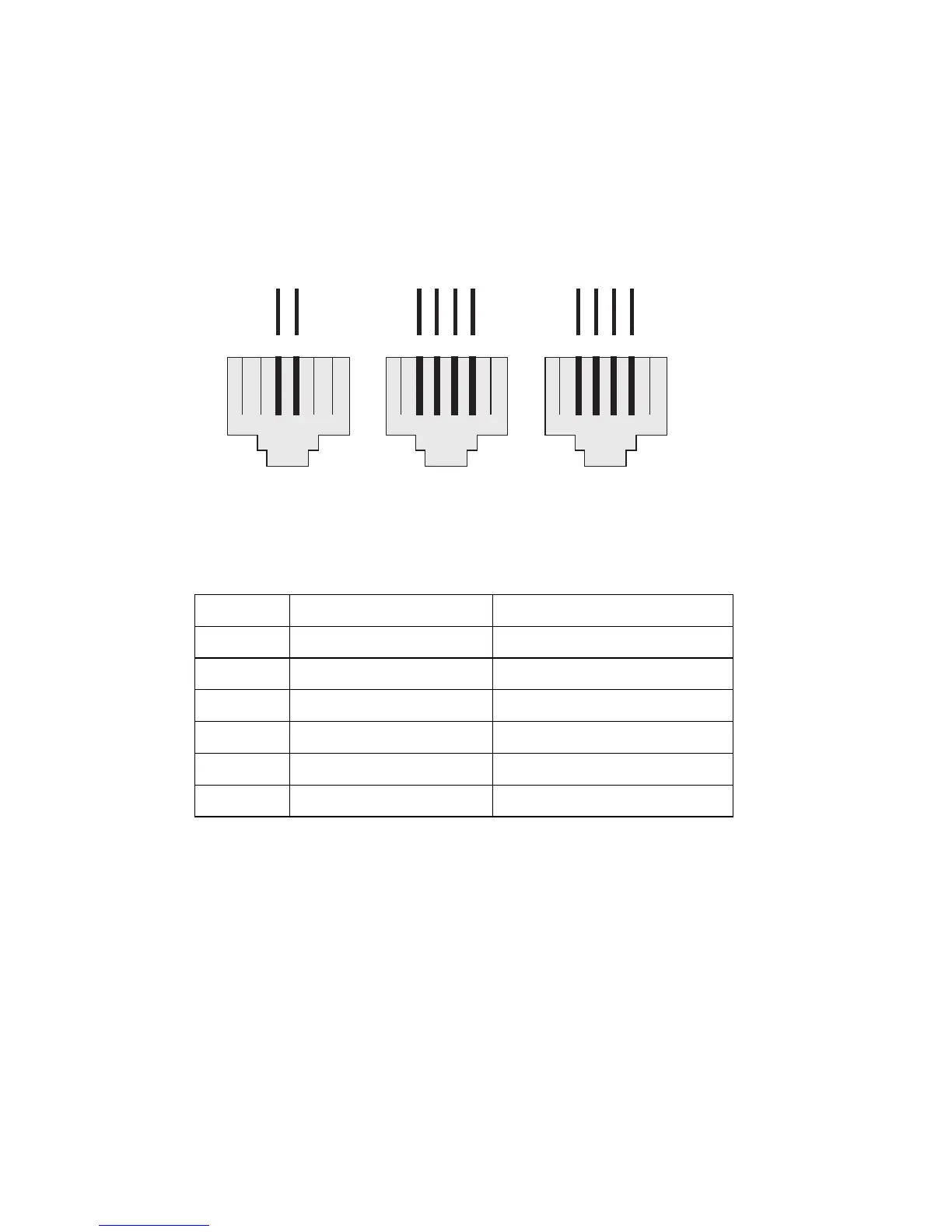

Figure B-3. RJ-11 Pinouts
Pin Signal Name Wire Color
1Not used
2 Line 2 Tip Black or White/Orange
3 Line 1 Ring Red or Blue/White
4 Line 1 Tip Green or White/Blue
5 Line 2 Ring Yellow or Orange/White
6Not used
123456
Blue/White
White/Blue
R1 T1
123456
Red
Green
R1 T1 R2T2
Black
Yellow
123456
Blue/White
White/Blue
R1 T1 R2T2
White/Orange
Orange/White
6x2 Jack 6x4 Jack6x4 Jack
T = Tip R = Ring
