-11-

No.EX##-OMN0036

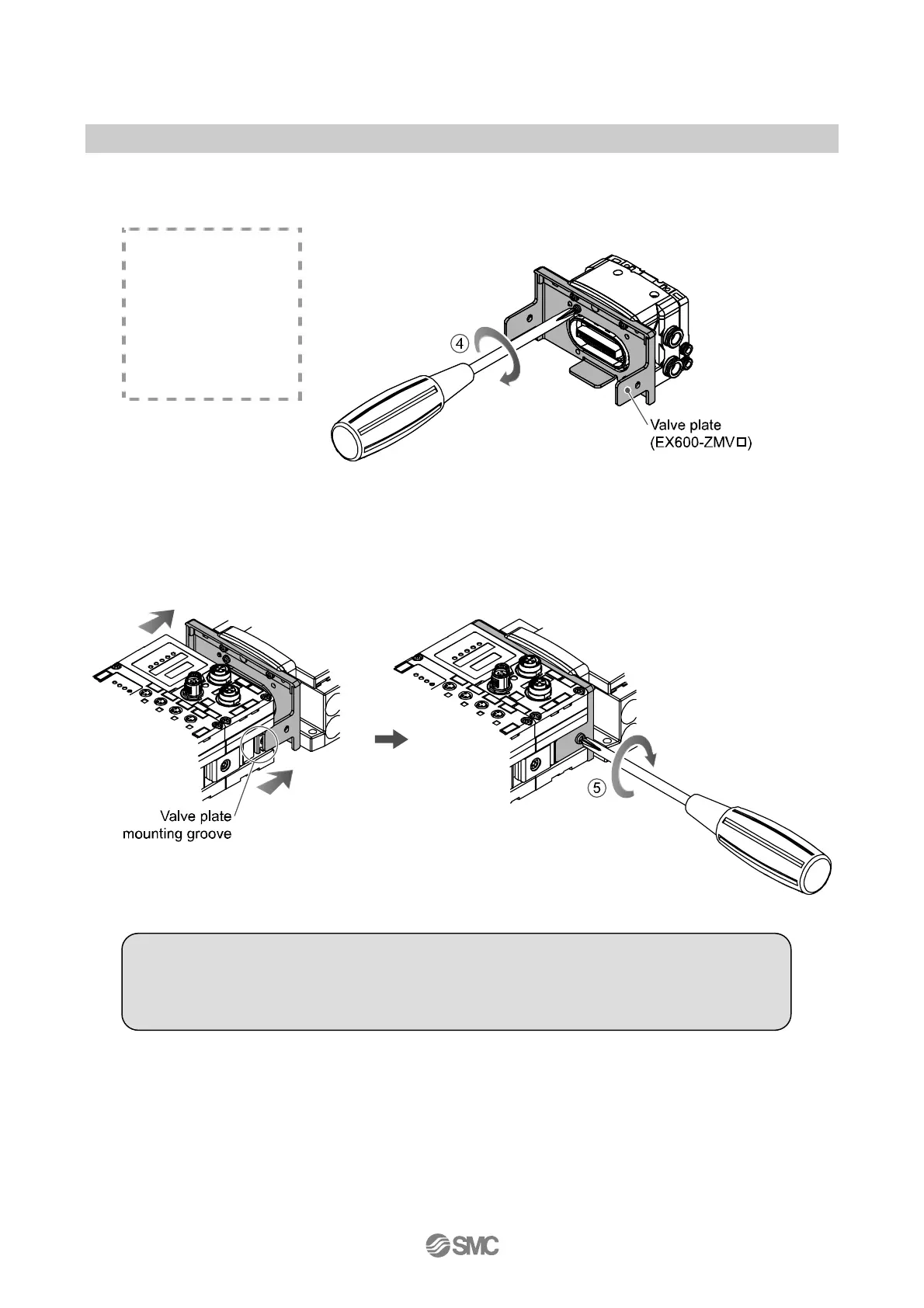

(4)Mounting the valve plate.

Mount the valve plate (EX600-ZMV□) to the valve manifold using the valve set screws. (M3x8)

Apply 0.6 to 0.7 Nm tightening torque to the screws.

Screw

mounting

place

SV : 2 places

S0700 : 2 places

VQC1000: 2 places

VQC2000: 3 places

VQC4000: 4 places

SY : 2 places



(5)Connect the SI unit and the valve manifold.

Insert the valve plate to the valve plate set groove on the side of SI unit.

Then, tighten it with the valve plate set screws (M4x6) to fix the plate.

Tightening torque for set screws 0.7 to 0.8 Nm.

●Precautions for handling

•Please do not connect the unit while the power supply is active. It will cause equipment

damage.

•Take care not to drop the nuts of Joint bracket.
