SMC Networks EX600-DX Series User Manual

-48-
No.EX##-OMN0036
Mounting and Installation
■Wiring

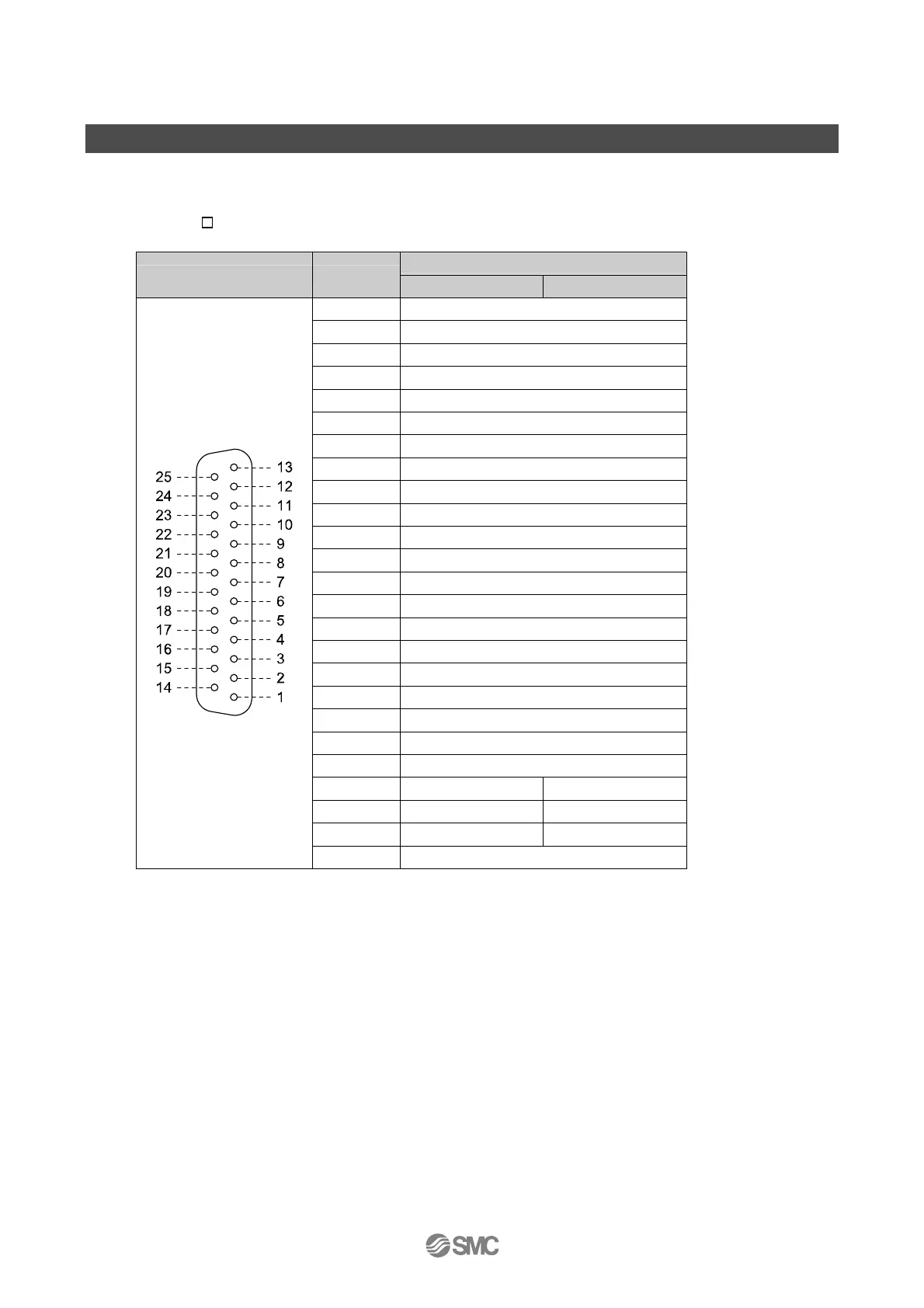

○Connector pin assignment and circuit diagram
(1)EX600-DM E
•Connector pin assignment
Signal name
Configuration Pin number
EX600-DMPE EX600-DMNE
1 Input 0
2 Input 1
3 Input 2
4 Input 3
5 Input 4
6 Input 5
7 Input 6
8 Input 7
9 24 V (Control and input)
10 24 V (Control and input)
11 0 V (Control and input)
12 0 V (Control and input)
13 FE
14 Output 0
15 Output 1
16 Output 2
17 Output 3
18 Output 4
19 Output 5
20 Output 6
21 Output 7
22 0 V (Output) 24 V (Output)
23 0 V (Output) 24 V (Output)
24 0 V (Output) 24 V (Output)
25 FE
