SMC Networks EX600-DX Series User Manual

-46-
No.EX##-OMN0036

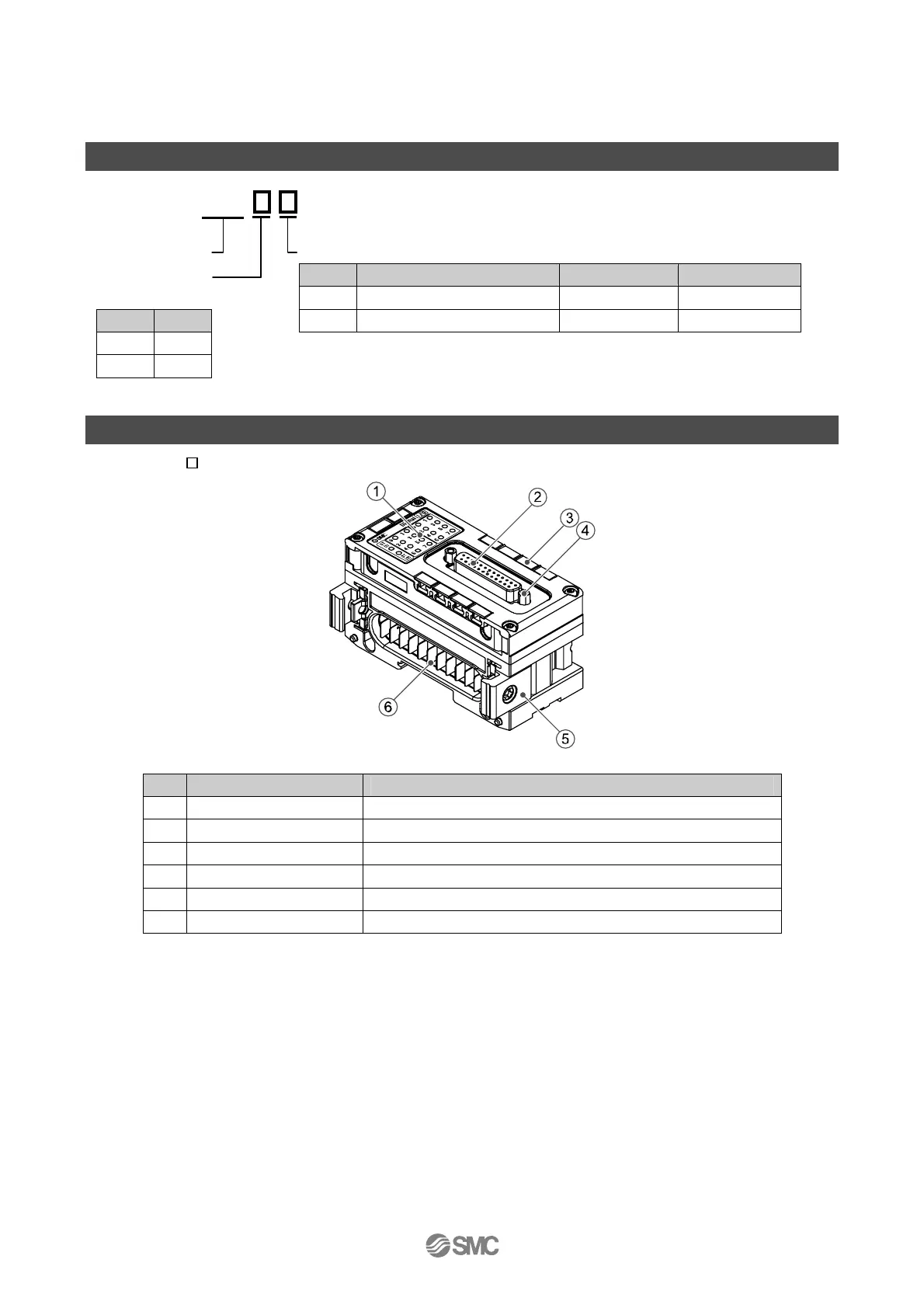

Digital I/O unit
Model Indication and How to Order

EX600-DM
Digital I/O Connector and number of I/O
Symbol Connector Number of inputs Number of outputs
Input and
Output type
E D-sub connector (25 pin) 8 inputs 8 outputs
Symbol Content F Spring type terminals (32 pin) 8 inputs 8 outputs
P PNP
N NPN
Names and Functions of Product
•EX600-DM E
No. Description Function
1 Status display LED Displays the status of the unit.
2
Connector (
I/O
)
Connector for input and output devices.
3 Marker groove Groove to mount a marker.
4 Lock screw Fixes D-sub connector. (No.4-40 UNC)
5 Joint bracket Bracket for joining to adjacent units.
6 Unit connector (Plug) Transmits signals and power supplies to adjacent units.
