SMC Networks EX600-DX Series - Dimensions

-31-
No.EX##-OMN0036
•Input signal assignment (EX600-DX F )
Group 0 1 2 3 4 5 6 7
Terminal position
Pin 2 Bit 0 Bit 2 Bit 4 Bit 6 Bit 8 Bit 10 Bit 12 Bit 14
Input signal
Pin 3 Bit 1 Bit 3 Bit 5 Bit 7 Bit 9 Bit 11 Bit 13 Bit 15

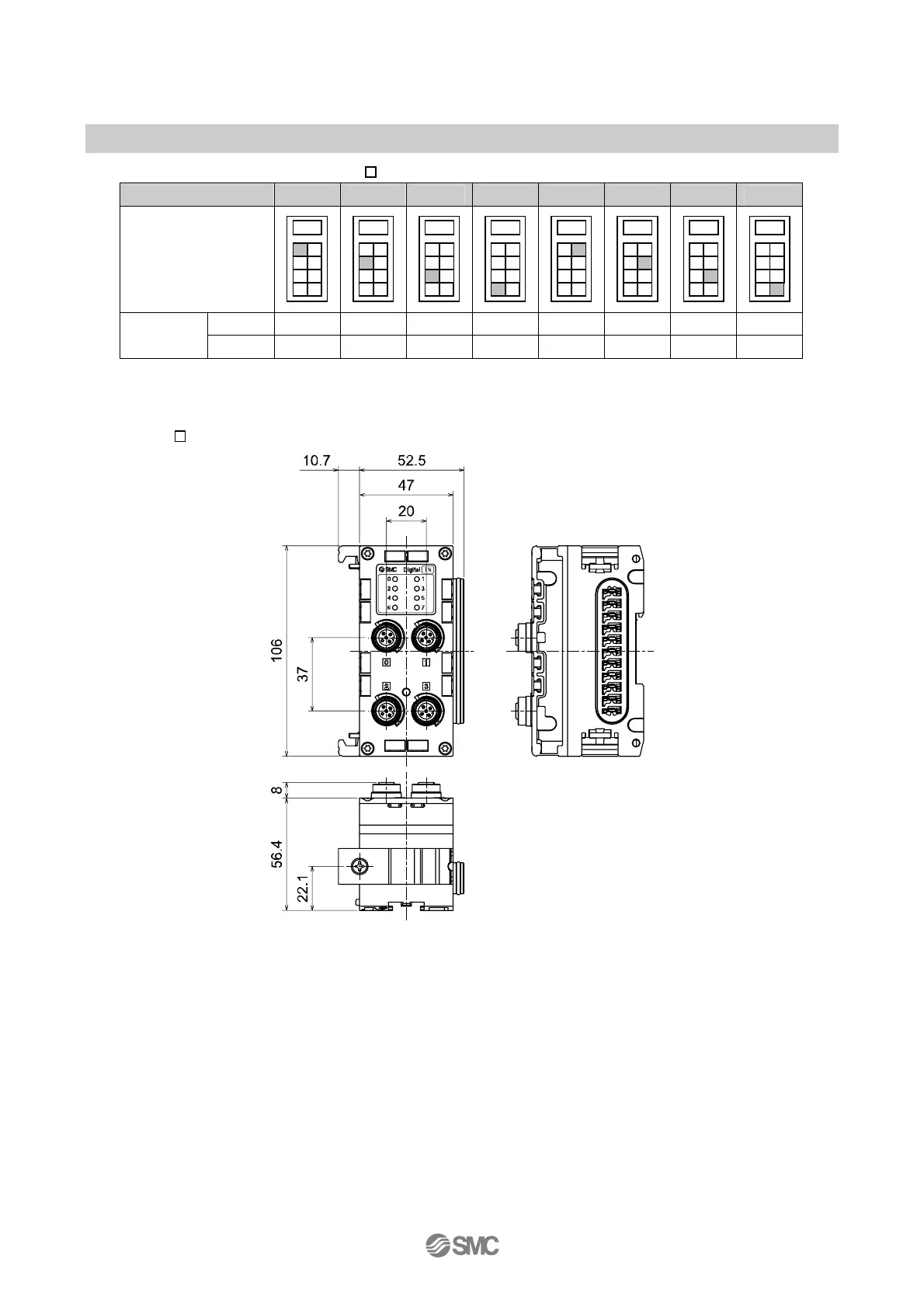

■Dimensions
•EX600-DX B

