(2) Positioning operation

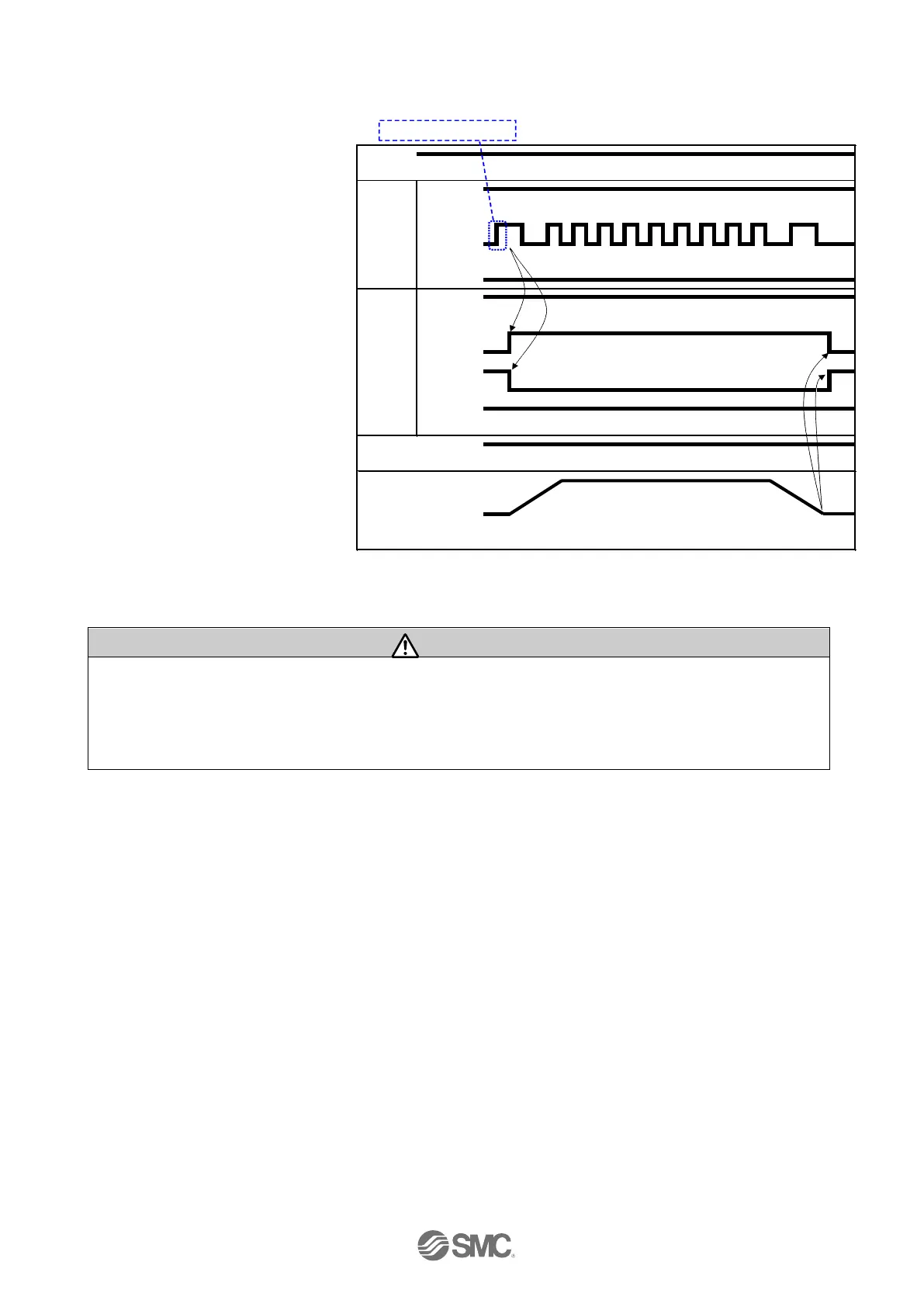

-Timing chart Positioning operation-
- Procedures-
(1) Input pulse signal
↓
(2) BUSY output turns ON
INP output is OFF
(Positioning starts)
↓
(3) If pulse signal is not input for
10ms or longer, INP signal is
ON when the difference
becomes smaller than
"positioning width" BUSY
signal is OFF when the electric
actuator completes its
operation.
Caution
. Do not input normal (CW) and reversed (CCW) pulse signal simultaneously.
Keep 10ms or more interval to input reversed pulse signal when changing the electric actuator
direction (motor direction). Minimum interval depends on the operating speed and load.
It should not be shortened more than necessary.
Power
SVON
PP-
NP-
SETON
BUSY
INP
SVRE
Extermal Lock
Electric actuator
Output
Input
Positionig
operation
Speed
24V
0V
ON
OFF
ON
OFF
ON
OFF
0mm/s
･
･
・
・
Start of pulse input
・
・
・
・
・
・
