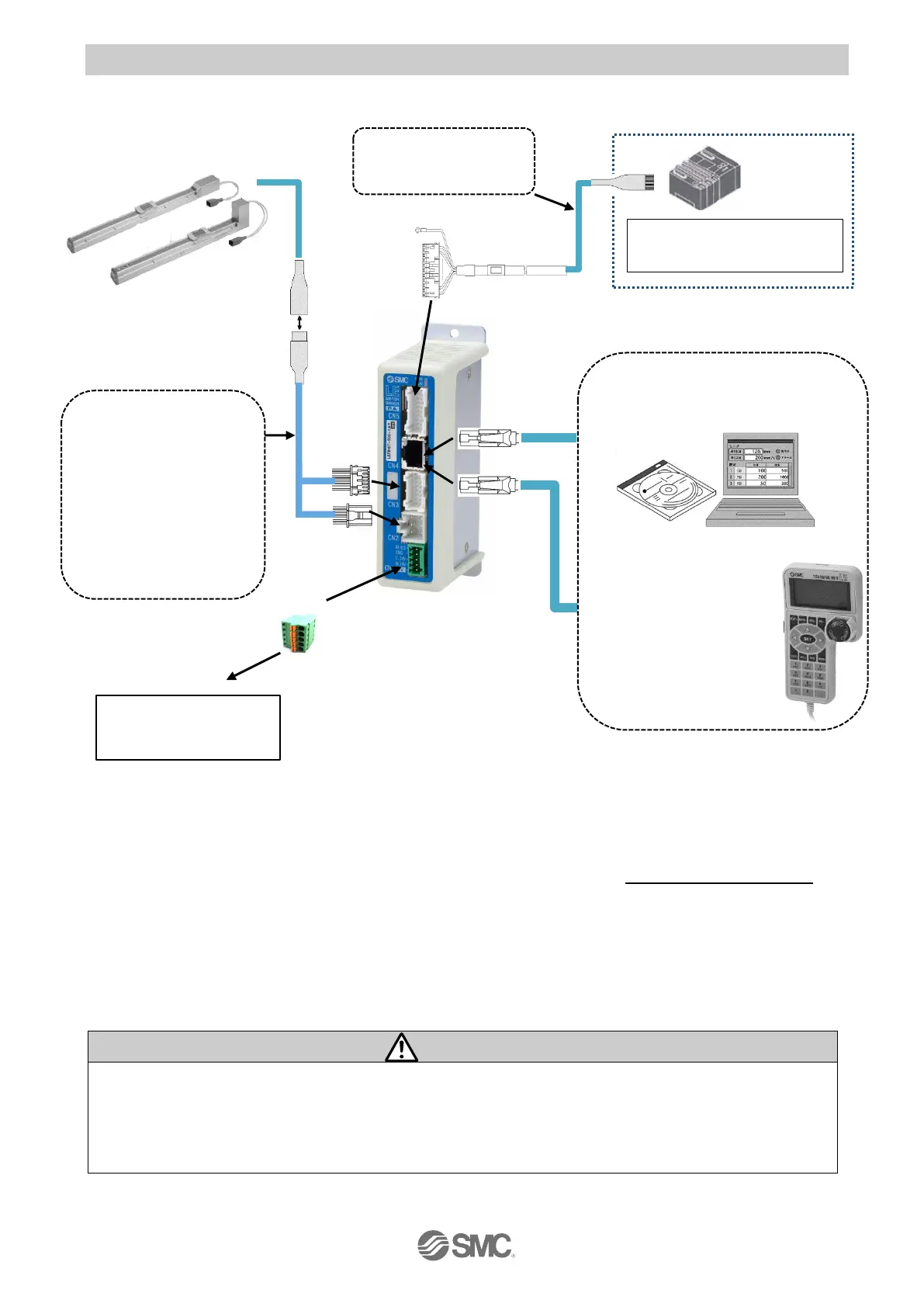

2.2 Product configuration
The product configuration of this driver is as follows.
*6)
Prepared by user
●Electric actuator
*1)
Connect the ground
Driver
*5)
*1) *6)
●Actuator cable
Part No：LE-CP-□-S
LE-CP-□-B-S
(Standard cable)
LE-CP-□
LE-CP-□-B
(Robotic type cable)
*3)* 4 )
●Power supply plug (accessory)
Applicable cable size
AWG20(0.5mm
P2P
)
*1) These items are included when ordered using the part number for an actuator set.
*2) The controller setting software must use the latest version.
For version information and upgrade, please refer to the SMC website. http://www.smcworld.com/
*3) When conformity to UL is required, the electric actuator and driver should be used with a UL1310 Class
2 power supply.
*4) 24 VDC power supply for driver input and 24 VDC power supply for I/O signal should be separated.
*5) PC is prepared by the user.
*6) Optional.
Warning
Refer to section “4. External Connection for wiring”.
Refer to “13. Precautions for wiring and cables” when handling the wiring and cables.
Do not connect the teaching box directly to the Personal computer.
Do not use LAN cable to connect to the driver, it will cause damage to the personal computer.
Power supply for driver
24 VDC
PLC
*3) *4)
Power supply for I/O signal
24 VDC
To CN1
To CN4
To
CN5
●I/O cable
Part No: LEC-CL5-□
To CN3
To CN2
●Controller setting kit
*2) *5)
Part No: LEC-W2
●Teaching box
(With 3m cable)
Part No: LEC-T1-3□G□
