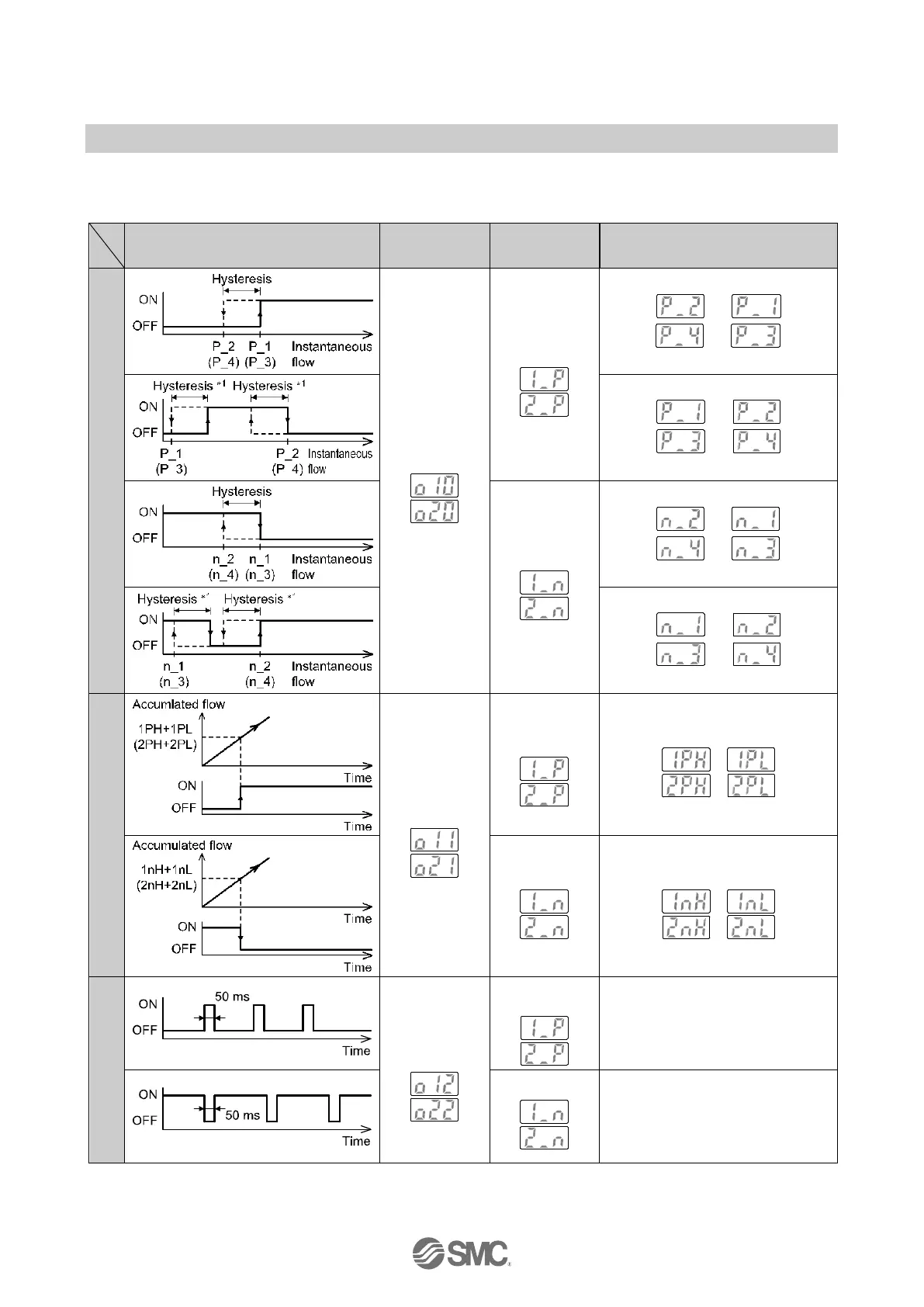

■List of outputs
Find the diagram of the output required in the table below. Perform settings following the Set value column
on the right. Characters in ( ) are for OUT2.
Switch output diagram
Output mode
Switch
operation
Set value
Instantaneous flow
Instantaneous
output mode
( )
Non-Reverse
output
( )
Set point 2 Set point 1
≦
2z
( ≦ )
Hysteresis mode
Set point 1 Set point 2
＜
( ＜ )
Window comparator mode
Reverse output
( )
Set point 2 Set point 1
≦
2
( ≦ )
Hysteresis mode
Set point 1 Set point 2
＜
( ＜ )
Window comparator mode
Accumulated flow
Accumulated
output mode
( )
Non-Reverse
output
( )
Upper 3 digits Lower 3 digits
+
( + )
Reverse output
( )
Upper 3 digits Lower 3 digits
+
( + )
Accumulated pulse
Accumulated
pulse output
mode
( )
Non-Reverse
output
( )
No Set value input
Reverse output
( )
No Set value input
1: In window comparator mode, the hysteresis is fixed at 3 digits. When setting, allow 7 digits or more between Set point 1 and Set point 2
(Set point 3 and Set point 4).
2: When Set point 1 = Set point 2 (Set point 3 = Set point 4), chattering may occur.
