Press the button. SI unit only
The product with unit selection function

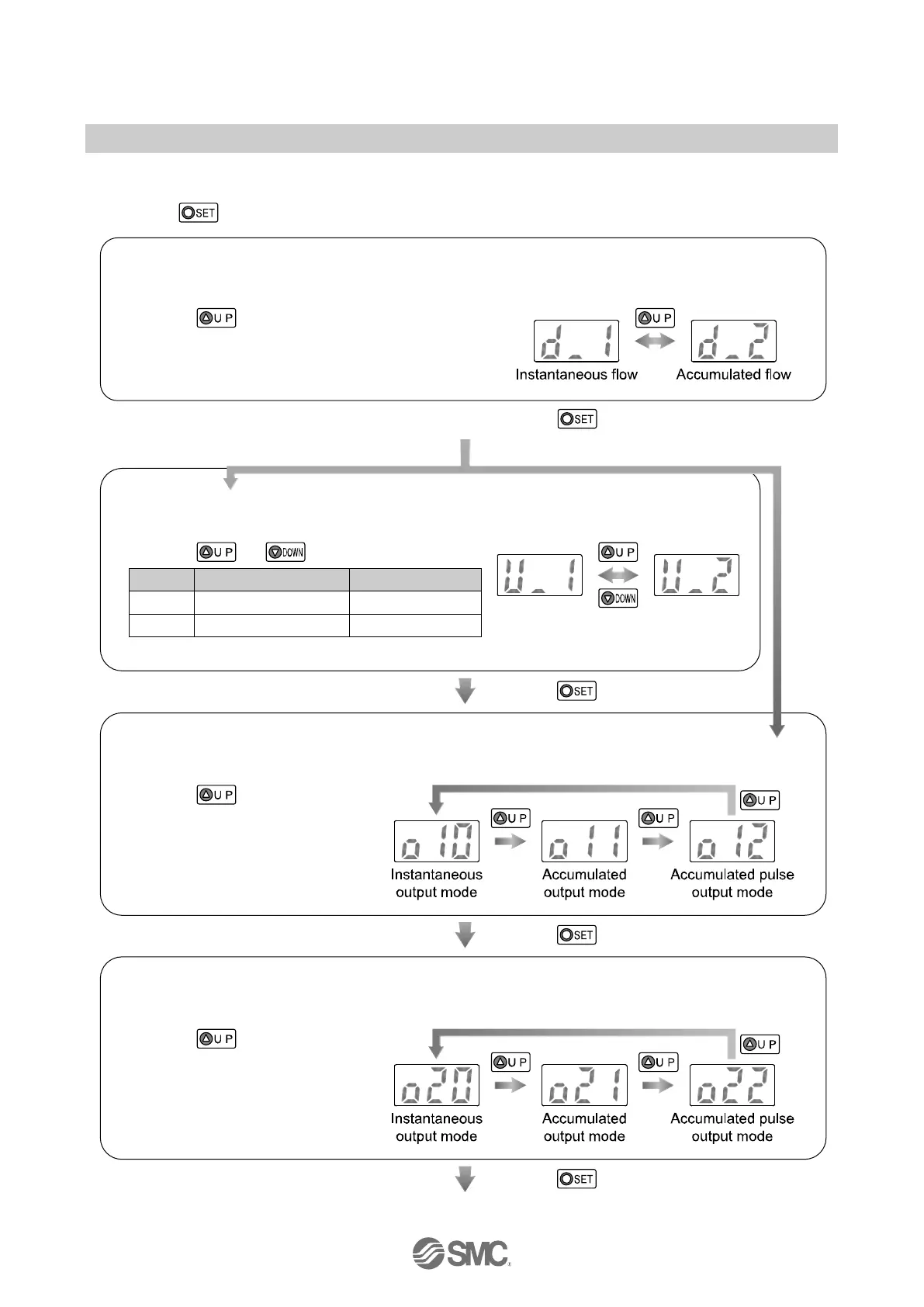

■Setting procedure of initialize mode
<Operation>
Press the button for 2 seconds or longer during measurement mode.
Selection of display mode
Select the display of instantaneous flow or accumulated flow.
Press the button to select.
[d_1]: display instantaneous flow
[d_2]: display accumulated flow
Selection of unit selection function
Display unit can only be selected for products with unit selection unction.
Press the or button for selection.
Display
Instantaneous flow
Accumulated flow
[U_1]
L/min
L
[U_2]

gal(US)/min
gal(US)
: Refer to page 25 for the flow rate when [U_2] is selected.
Press the button.
Selection of output mode (OUT1)
Select the switch output mode required referring to the list of outputs (page 21).
Press the button to select.
[o10]: Instantaneous output mode
[o11]: Accumulated output mode
[o12]: Accumulated pulse output
mode
Press the button.
Selection of output mode (OUT2)
Select the switch output mode required referring to the list of outputs (page 21).
Press the button to select.
[o20]: Instantaneous output mode
[o21]: Accumulated output mode
[o22]: Accumulated pulse output
mode
Press the button. (continued)
