LED I
NDICATORS
5
LED Indicators
The Wireless AP includes three status LED indicators, as
described in the following figure and table.

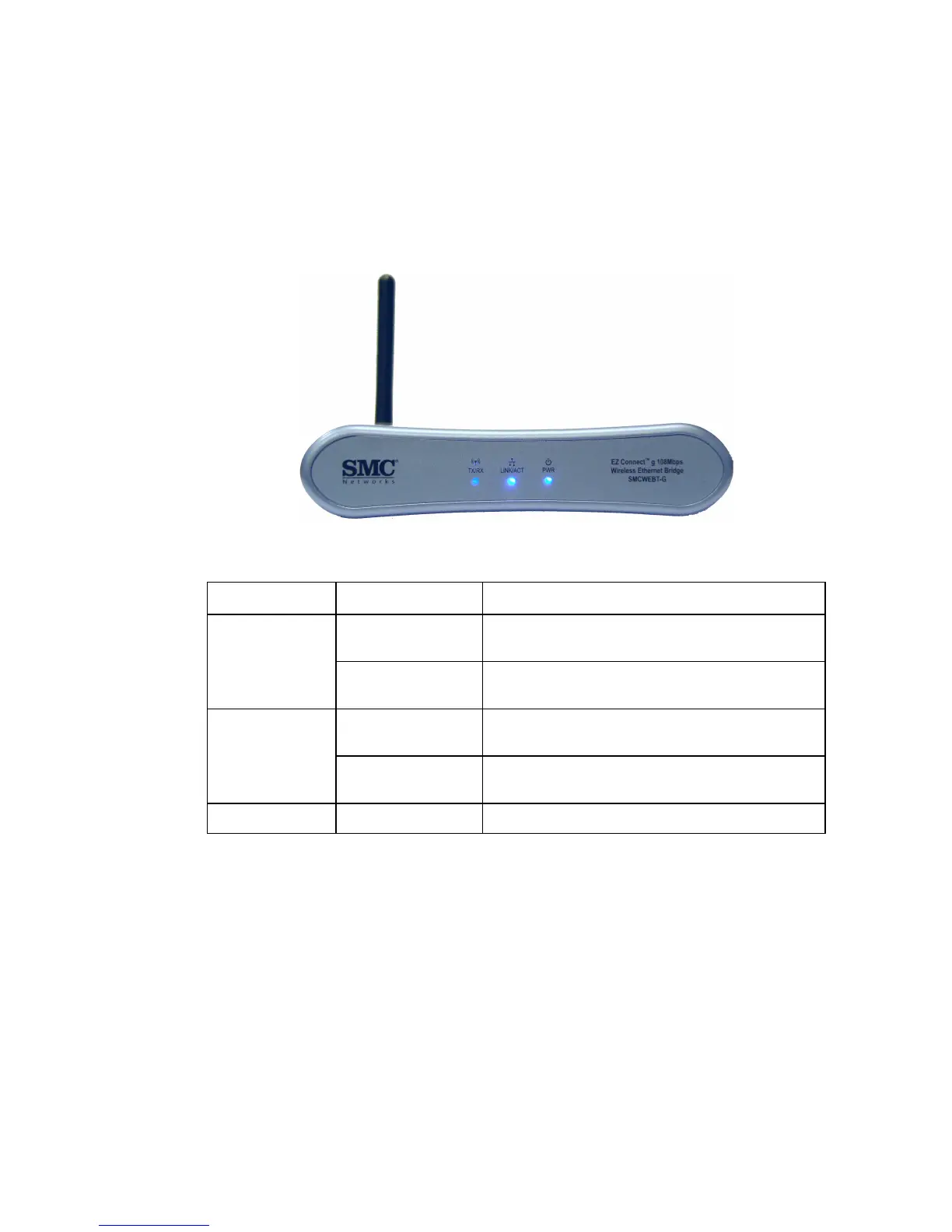

Figure 2. Front Panel
LED Status Description
TX/RX
(wireless)
On (Blue) The device has established a valid wireless
link.
Flashing (Blue) The device is transmitting or receiving data
via wireless.
LINK/ACT
(WAN)
On (Blue) The device has established a valid
100 Mbps Ethernet link.
Flashing The device is transmitting or receiving data
on the Ethernet LAN.
PWR (power) On (Blue) Power is being supplied.
