1-5
100BASE-FX port

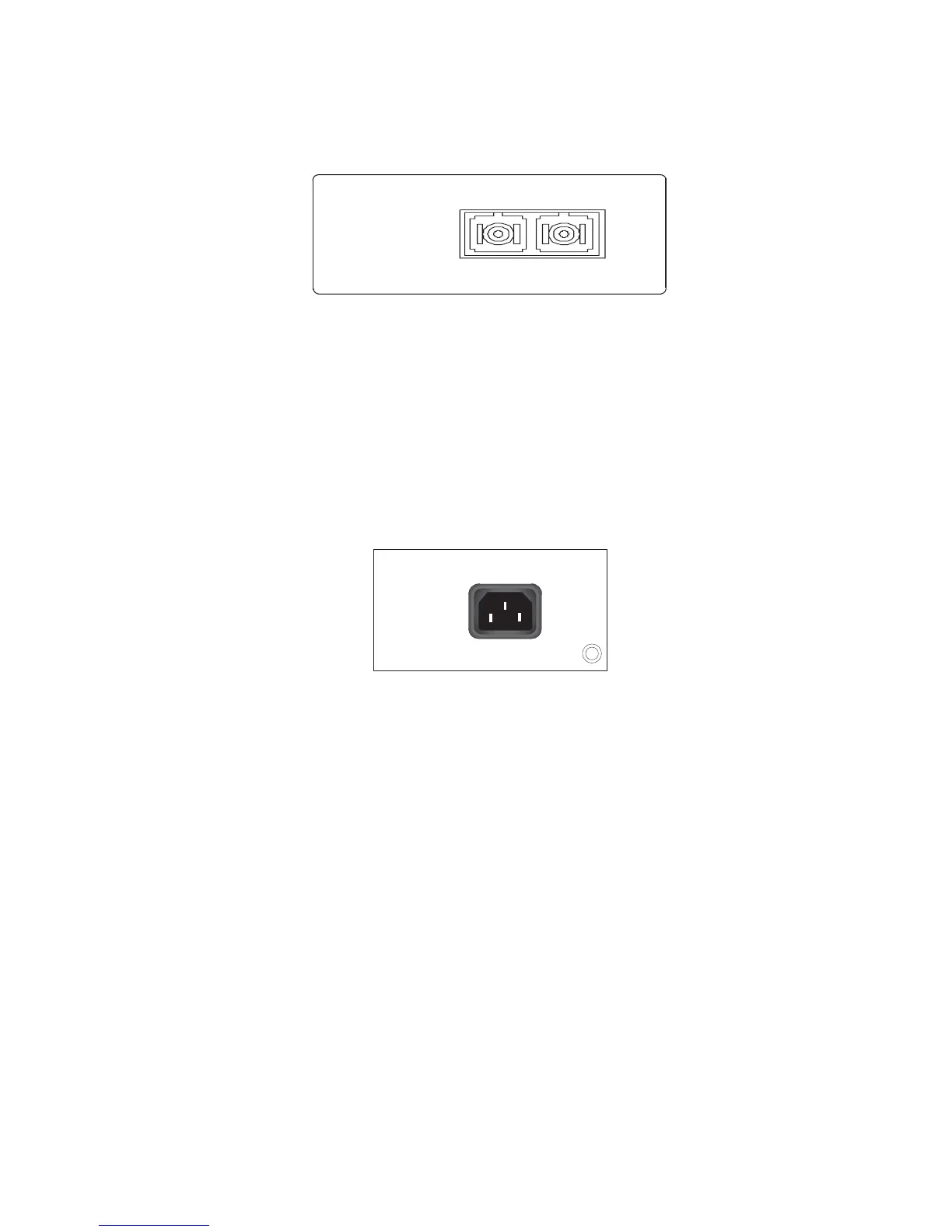

Figure 1-2. 100Base-FX MMF fiber port
The 100BASE-FX MMF SC port with support for full-duplex mode and
flow control can be connected to a remote site up to 2Km (6561 ft) away.
Power Supply Receptacle
There is a power receptacle on the rear panel of the switch for the AC
power cord.
Figure 1-3. Power Supply Receptacle
Features and Benefits
Connectivity
◆ 8 dual-speed ports for easy Ethernet integration and for protection of
your investment in legacy LAN equipment
◆ Auto-negotiation enables each RJ-45 port to automatically select the
optimum communication mode (half or full duplex) if this feature is
supported by the attached device; otherwise the port can be configured
RX
TX
9
AC 100V
-240V
50-60Hz
