Remote Connections with Fiber Cable
Fiber optic technology allows for longer cabling than any other media
type. A 100 Mbps multimode fiber connector (MMF) link can run up to 2
km. This allows the TigerSwitch 10/100 to serve as a collapsed
backbone, providing direct connectivity for a widespread LAN. The
100BASE-FX MMF connector can be used to interconnect remote Fast
Ethernet segments. The figure below illustrates a TigerSwitch 10/100
connecting multiple segments with fiber cable.

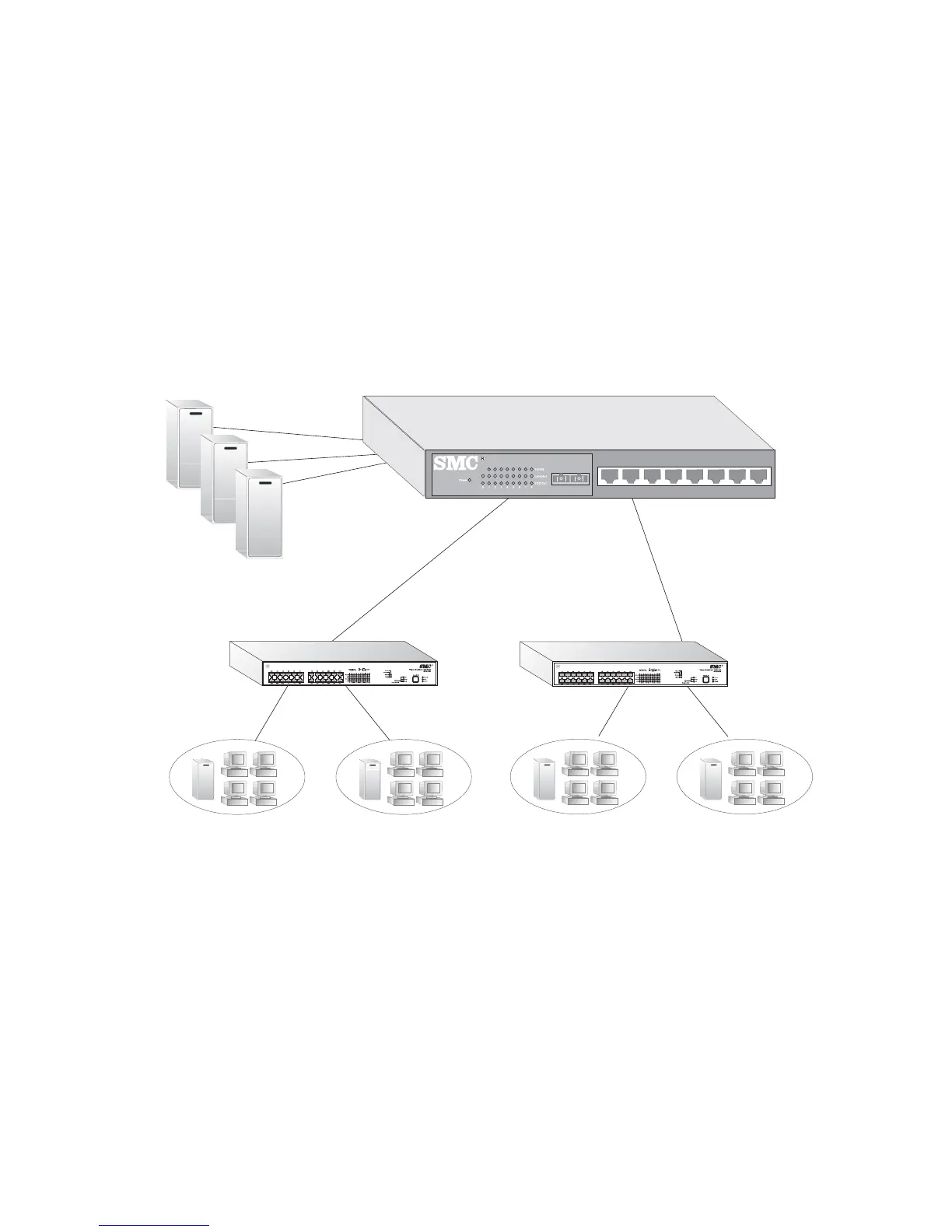

Figure 2-2. Collapsed Backbone Using Fiber Cable
Server Farm
10/100 Mbps Segments
...
...
Remote Switch
4
4
Remote Switch
100BASE-TX port
(100 m)
Headquarters
100BASE-FX MMF
(2 km)
1X
3X
5X 7X
2X
4X
6X
8X
Multi-mode
100M Fiber
TigerSwitch 10/100
6709FL2
