Mounting and Installation
■Installation
○Mounting with bracket
∗: The required tightening torque of the piping port is 7 to 9 N•m.
The required tightening torque of the mounting bracket screws is 0.5 to 0.7 N•m.

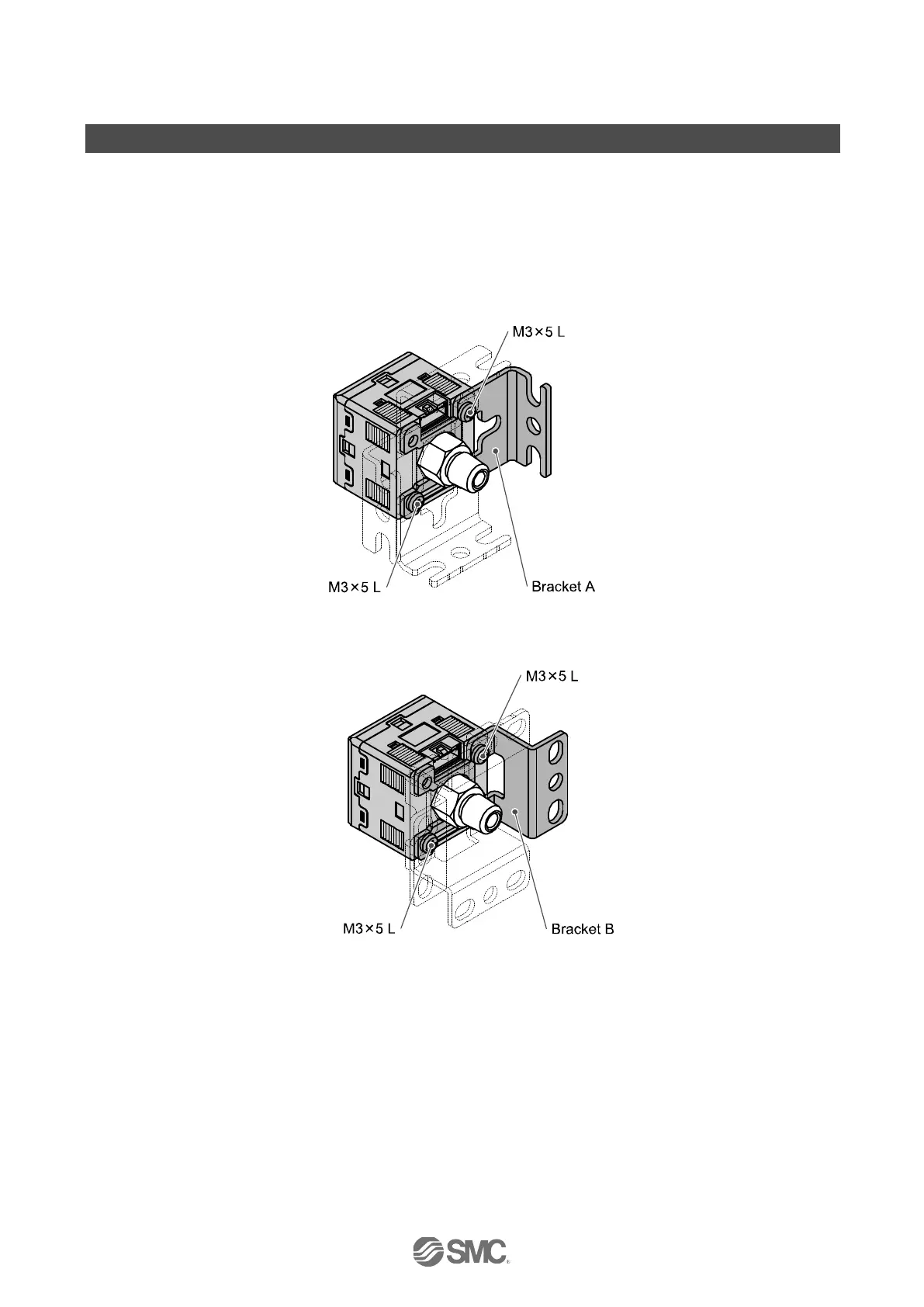

•Fix the bracket to the Pressure switch with the set screws M3×5 L (2 pcs) supplied.
•Bracket A (Model: ZS-38-A1)
•Bracket B (Model: ZS-38-A2)
