-17-
No.PS※※-OML0003-J
■Piping

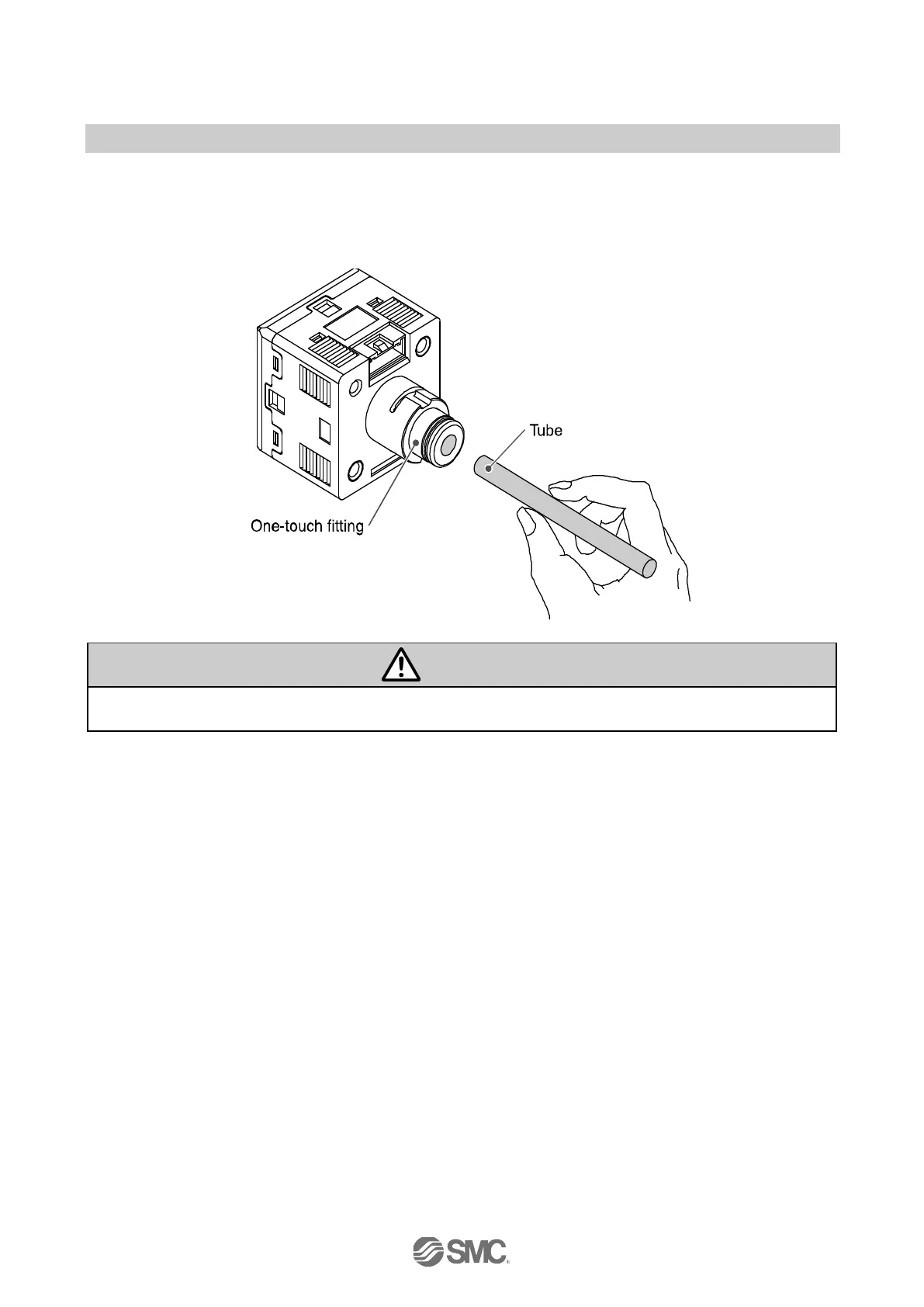

○Connection using One-touch fitting
1. Cut the tube end perpendicular.
2. Hold the tube and insert it into the One-touch fitting slowly until it bottoms out.
■Do not use the Pressure switch in a place where electrical static charge will be a problem.
It can cause an error and damage to the system.
•Allow sufficient tube length to prevent twist and tensile or moment loads from being applied to the fitting
or tube.
•When using a tube manufactured by a company other than SMC, check that its outside diameter
tolerance satisfies the following values:
1) Nylon tube: ±0.1 mm maximum
2) Soft nylon tube: ±0.1 mm maximum
3) Polyurethane tube: +0.15 mm/-2 mm maximum
