-16-
No.PS※※-OML0003-J

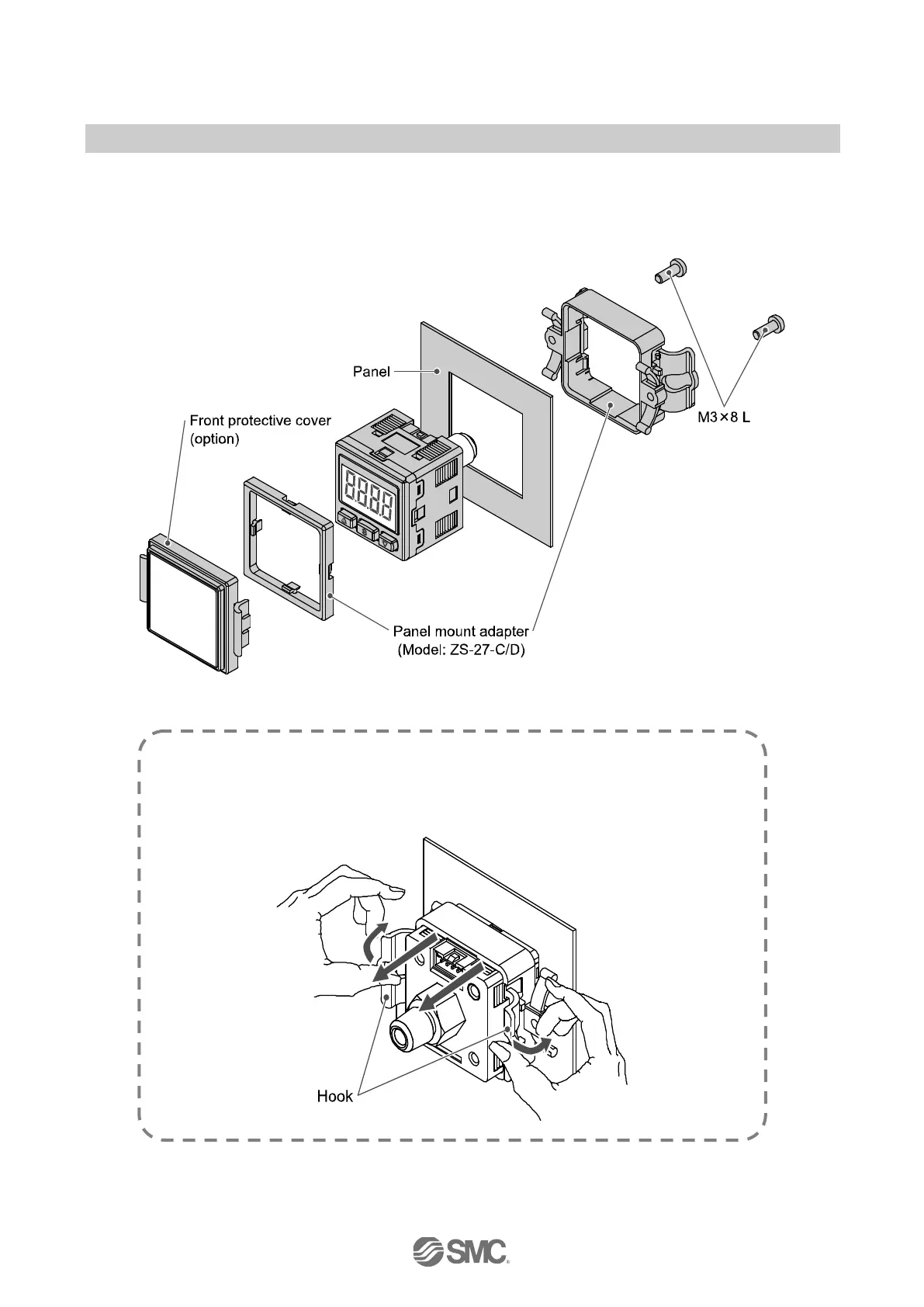

○Mounting with panel mount adapter
•Fix the panel mount adapter to the Pressure switch with the set screws M3×8 L (2 pcs) supplied.
•Panel mount adapter (Model: ZS-27-C)
Panel mount adapter + Front protective cover (Model: ZS-27-D)
∗: The panel mount adapter can be rotated by 90 degrees for mounting.
Note when removing the switch
•The Pressure switch with panel mount adapter can be removed from the installation
by removing 2 screws and releasing the hooks at the sides, as illustrated.
Take care not to damage the Pressure switch and panel mount adapter.
