Snap-On PLASMA60i User Manual

12

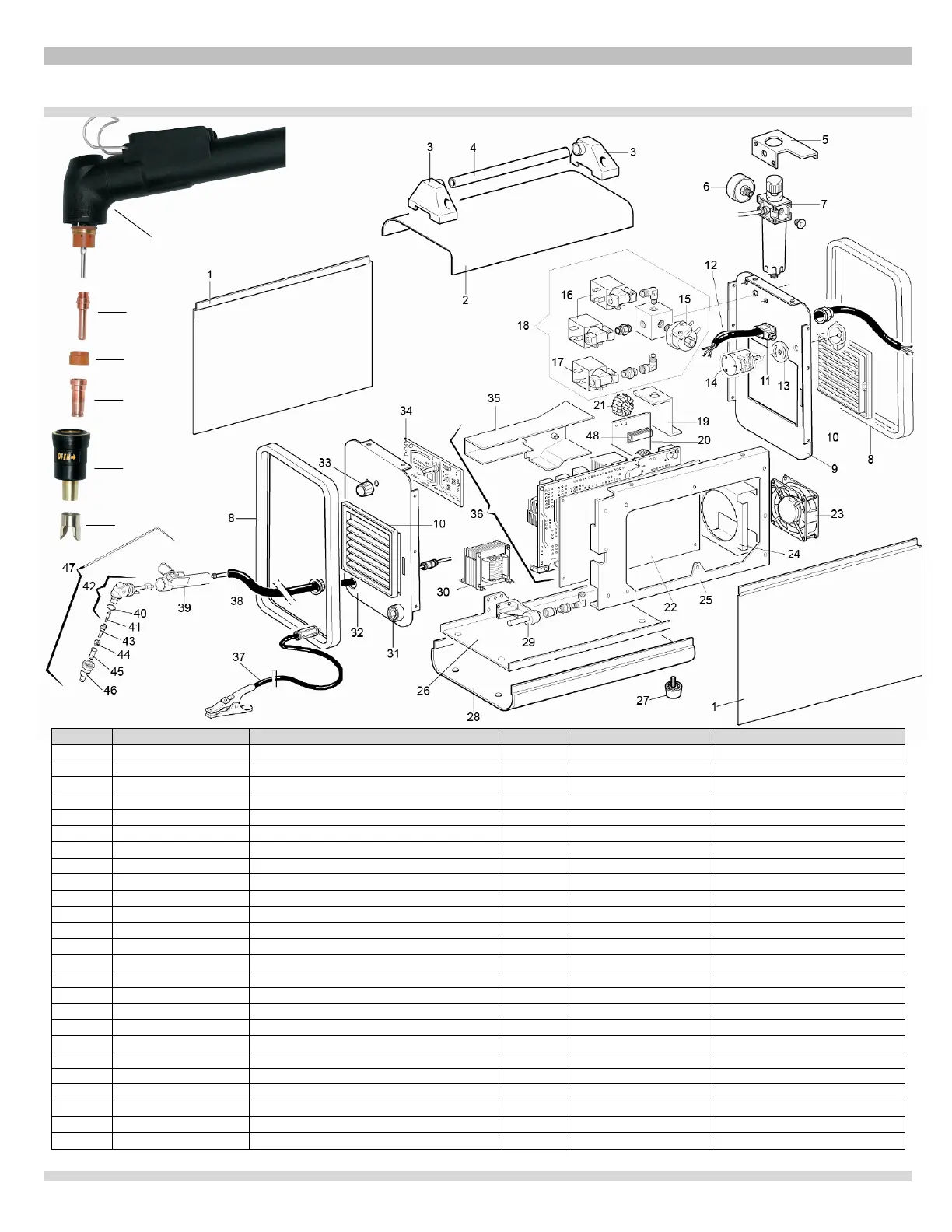

WHEN ORDERING SPARE PARTS PLEASE STATE THE MODEL NUMBER AND SERIAL NUMBER AND PART NUMBER NEEDED.
42
43
44
45
45A
46
49
POS.
PART NUMBER
DESCRIPTION
POS.
PART NUMBER
DESCRIPTION
1
CKSP6001
FIXED SIDE PANEL
26
CKSP6026
INSIDE BAFFLE
2
CKSP6002
COVER
27
CKSP6027
FOOT
3
CKSP6003
HANDLE SUPPORT
28
CKSP6028
BOTTOM
4
CKSP6004
HANDLE
29
CKSP6029
TERMINAL BOARD
5
CKSP6005
PRESSURE REDUCER SUPPORT
30
CKSP6030
CHOKE
6
CKSP6006
GAUGE
31
CKSP6031
SOCKET
7
CKSP6007
PRESSURE REDUCER
32
CKSP6032
FRONT PANEL
8
CKSP6008
FRAME
33
CKSP6033
KNOB
9
CKSP6009
BACK PANEL
34
CKSP6034
PANEL CIRCUIT
10
CKSP6010
FINNED PANEL
35
CKSP6035
COVER
11
CKSP6011
STRAIN RELIEF
36
CKSP6036
POWER CIRCUIT
12
CKSP6012
POWER CORD
37
CKSP6037
EARTH CABLE
13
CKSP6013
PROTECTION
38
CKSP6038
TORCH CABLE
14
CKSP6014
SWITCH
39
CKSP6039
HANDGRIP
15
CKSP6015
PRESSURE SWITCH
40
CKSP6040
O.RING
16
CKSP6016
SOLENOID VALVE
41
PLASMA5005
DIFFUSER
17
CKSP6017
SOLENOID VALVE
42
PLASMA5006
TORCH BODY (HEAD)
18
CKSP6018
AIR ASSY
43
PLASMA5004
ELECTRODE (5 PK)
19
CKSP6019
SUPPORT
44
PLASMA5003
SWIRL RING (2 PK)
20
CKSP6020
CHOKE SUPPORT
45
PLASMA2502
NOZZLE Ø 0.9mm (5 PK)
21
CKSP6021
PFC CHOKE
45A
PLASMA5002
NOZZLE Ø 1.1mm (5 PK)
22
CKSP6022
INSULATION
46
PLASMA5001
NOZZLE HOLDER
23
CKSP6023
MOTOR WITH FAN
47
PLASMA5007
COMPLETE TORCHE
24
CKSP6024
FAN SUPPORT
48
CKSP6048
RESISTANCE
25
CKSP6025
CIRCUIT BOARD SUPPORT
49
PLASMA2504
TWO POINT SPACER
REPLACEMENT PARTS – PARTS LIST
