Forward Neutral Reverse
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.

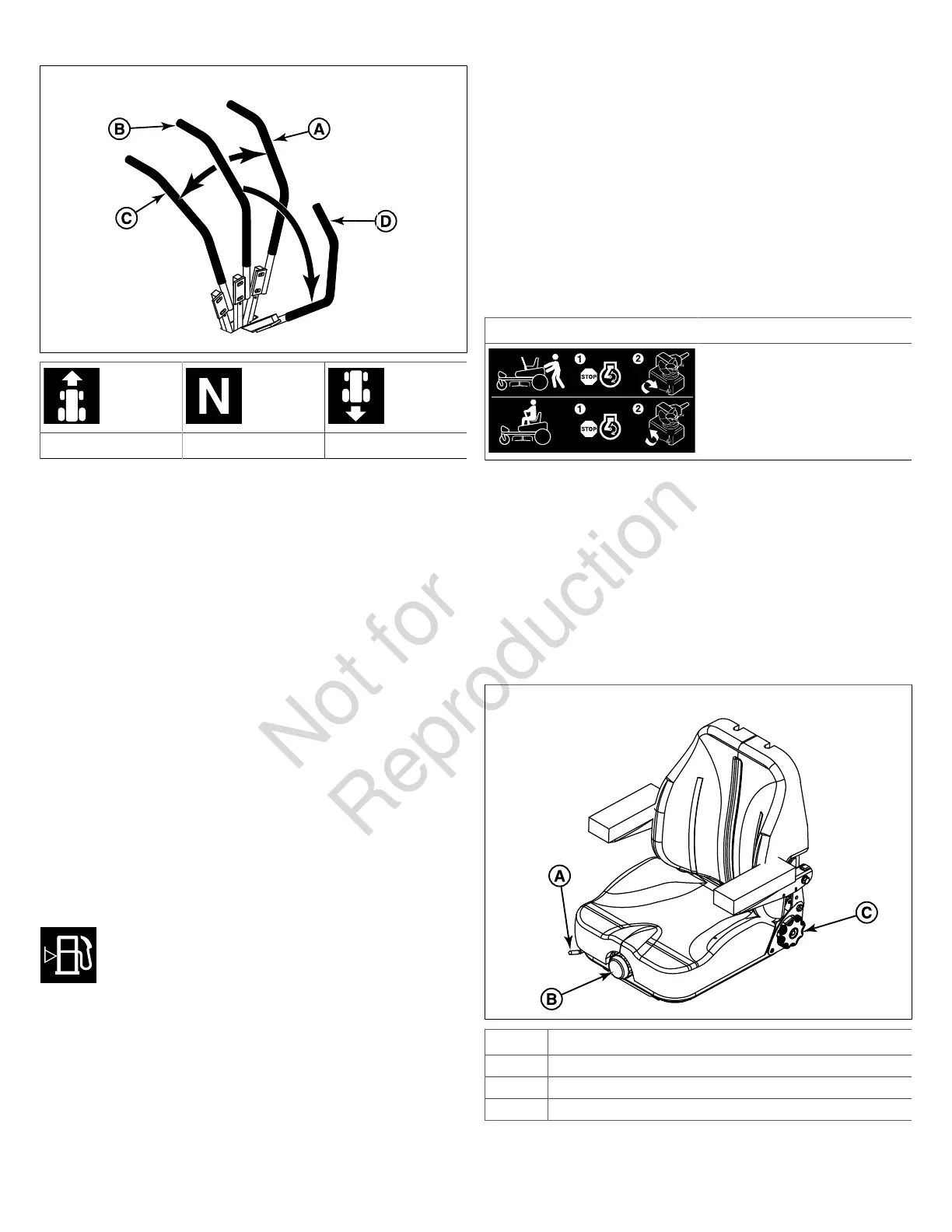

Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving the levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL LOCKOUT position.
Note:The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Riding Mower Driving Practice section for
steering instructions.
Fuel Selector Valve: Turning the handle to the desired
position determines which tank will be supplying fuel. With
the handle pointing LEFT, it will draw fuel from the left-hand
tank. With the handle pointing RIGHT, it will draw fuel from
the right-hand fuel tank. With the handle pointing towards the
operator, it will shut off fuel flow to the engine.
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Fuel Level Gauge: Displays the fuel level in the
tank.
Seat Adjustment Lever: The seat can be adjusted forward
and back. Move the lever towards the left, position the seat as
desired, and release the lever to lock the seat in position.
Removable Floor Plate: The floor plate can be removed for
easy access to the mower deck. To remove the plate, remove
the retainer hardware and tilt the floor pan up and then
remove from the unit. Reverse the process for re-installation.
Retractable Seat Belt: The seat belt is used to secure the
operator to the seat.
The seat belt should always be worn when the Roll Bar is in
the raised position. The seat belt should never be worn when
the Roll Bar is in the down position.
Transmission Oil Fill: Transmission oil is added through the
hydraulic oil tanks. It also serves as extra holding capacity
for oil as the transmissions heat up and the hydraulic oil
expands. See Check / Fill Transmission Oil for oil level check
and fill procedures.
Hydraulic Actuators:
Icon Control Name
Hydraulic Actuators
Each transmission on this unit is equipped with a hydraulic
actuator. The hydraulic actuators deactivate the transmission
so that the unit can by pushed by hand. Both hydraulic
actuators must be in the same position whether you are
driving the unit or pushing it by hand. See Pushing the Unit by
Hand for operational information and control location.
Suspension Seat (Select Models):
Select models of this series of mower are equipped with a
suspension seat.
8
Callout Control Name
A Seat Adjustment Lever (Forwards / Backwards)
B Seat Adjustment Knob (Suspension)
C Seat Adjustment Knob (Recline)
Seat Adjustment Lever (Forwards / Backwards): The
seat can be adjusted forward and back. Move the forwards /
