17
backwards seat adjustment lever, position the seat as
desired, and release the lever to lock the seat in position.
Seat Adjustment Knob (Suspension): The suspension
adjustment knob adjusts the suspension of the seat (ride
comfort). Turn the adjustment knob until the display scale has
a reading that matches the weight of the operator.
Seat Adjustment Knob (Recline): The recline adjustment
knob adjusts the amount of the angle of recline for the
seat back to a maximum of 14 degrees. Turn the recline
adjustment knob until the desired amount of recline is
achieved.

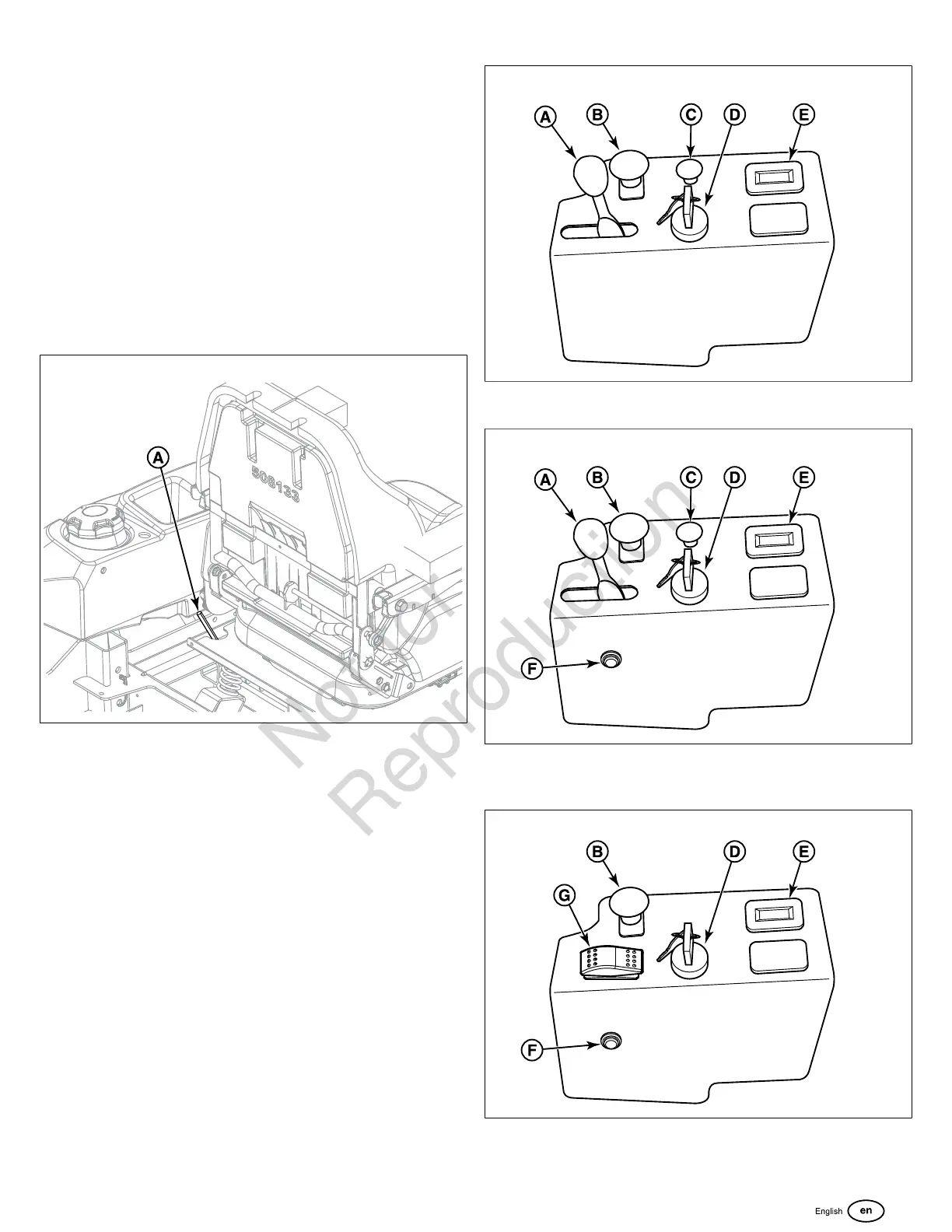

Seat Latch:The seat latch (A, Figure9) secures the seat
plate to the frame of the unit
9
To raise the seat plate, release the latch by moving the seat
latch towards the front of the unit and then raise the seat
plate.
The seat latch is spring loaded. When the seat plate is
lowered back into place the seat latch will lock the seat plate
into place.
Instrument Control Panel
Models with Carbureted Engines:
10
Models with Fuel Injected Engines:
11
Models with Fuel Injected Engines and Electronic
Throttle Control:
12
A. Throttle Control
B. Power Take Off (PTO) Switch
