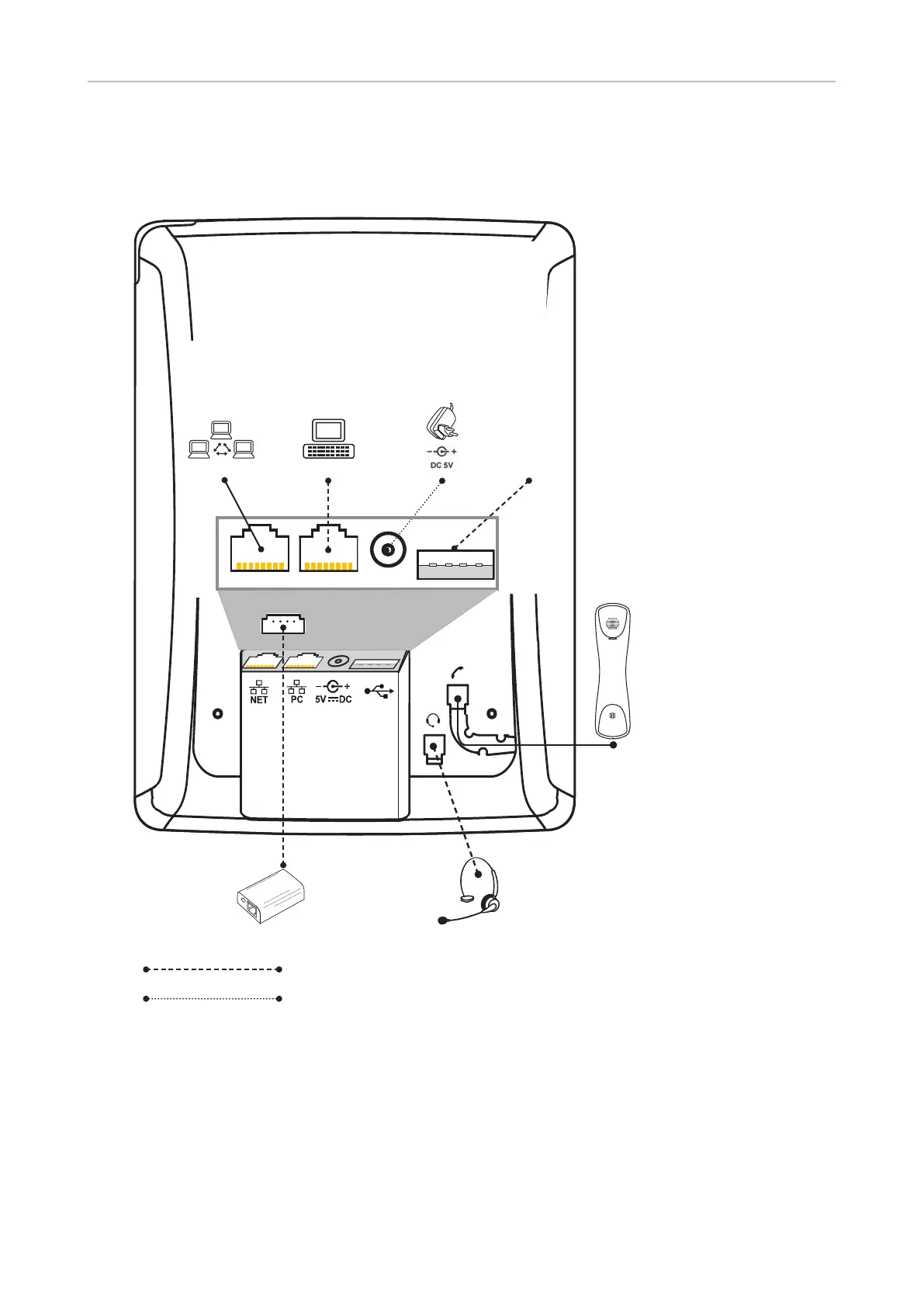

D745 User Manual Setting up the Phone
Connecting the phone
Optional
Optionnel
Opzionale
Opcional
Optional
Optionnel
Opzionale
Opcional
If no PoE available
Wenn PoE nicht verfügbar
S'il n'y a pas de PoE
Si no se dispone de PoE
Se non disponibile PoE
Not included in delivery
Nicht im Lieferumfang enthalten
Non inclus
Non incluido
Non incluso
USB 2.0
Type/Typ A
Optional
Optionnel
Opzionale
Opcional
Optional
If PoE not available - power adapter not included in delivery
The phone can be operated with Power over Ethernet (PoE) provided via the network cable or, if PoE
is not avaible in your network, with the separately available 5V DC Snom power adapter A6, Snom PN
00004325 (EU)/Snom PN 00004326 (US).
• Plug the Ethernet (network) cable into the RJ45 connector labeled “NET”, and plug the other end
into the network side to establish a data link.
If PoE is not available, insert the plug of the A6 power supply into the connector labeled "5V DC"
and hook up the plug to the wall outlet.
