A46JRT – 0260996 17
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.
Diagnostic Center Displays
Diagnostic center displays are used to monitor the op-
eration of the machine and the engine. Different engine
types use different diagnostic center displays.
The display used with each engine is show below:
• Kubota V1505-TE – Diagnostic Center LCD
• Kubota WG1605 – Dual Fuel Engine Display
Diagnostic Center LCD
The diagnostic center LCD display (refer to Figure 5.1) is
located at the top left of the lower control panel. Kubota
Tier 4 diesel engine machines do not have an LCD diag-
nostic center display.

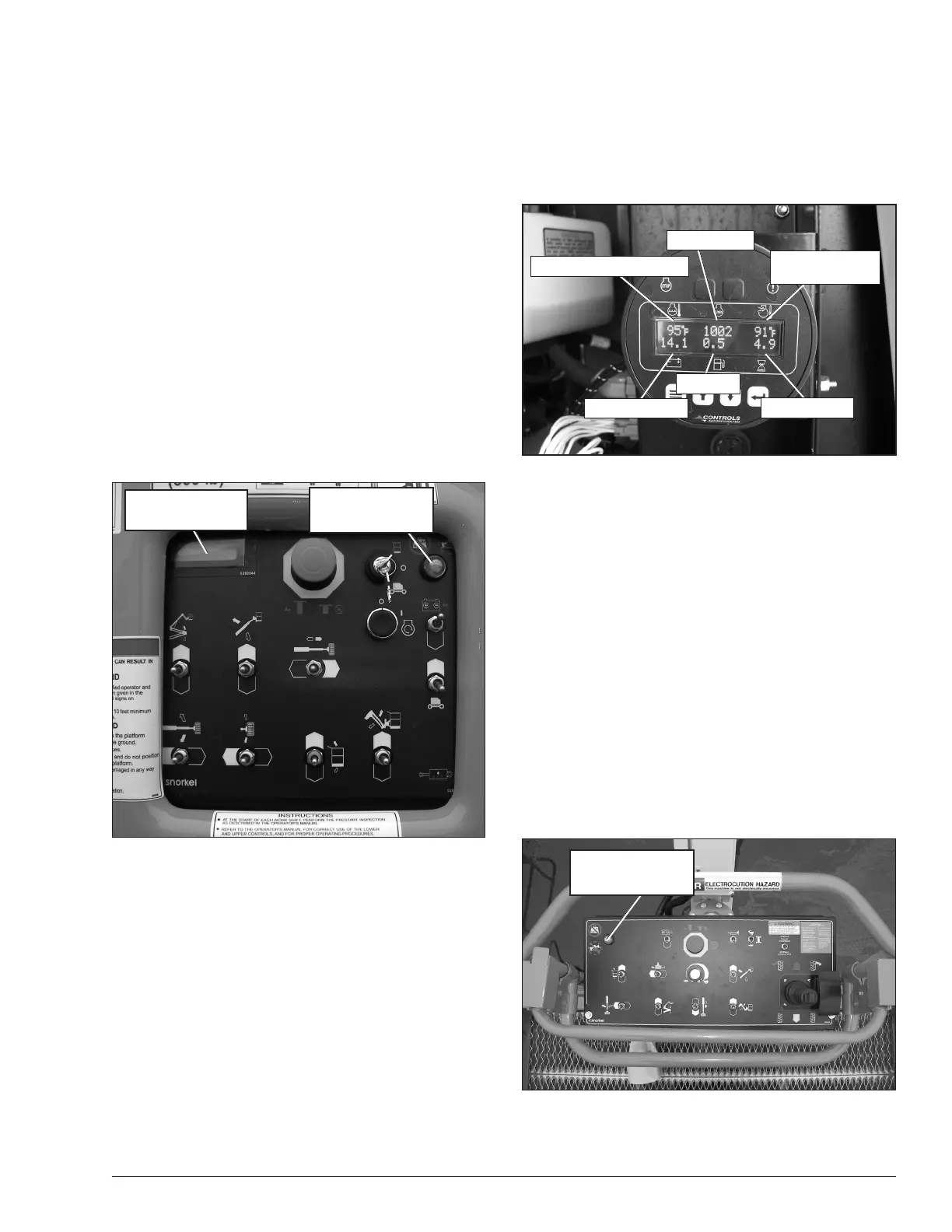

Figure 5.1 – Lower Controls
When the battery disconnect is in the on position and the
emergency stop button is enabled at the lower controls,
the LCD display shows:
• The accumulated aerial platform operating time.
•
“Mode Neutral” is displayed when no functions are
being operated. When the machine is operated, the
display will indicate the name of that function.
This display is also used by service technicians to trou-
bleshoot and diagnose errors that may occur with the
machine operating system.
Dual Fuel Engine Display
The dual fuel engine display (refer to Figure 5.2) is located
behind the front right cowling door, on the left side of the
lower control panel.
Figure 5.2 – Dual Fuel Engine Display
When the engine is running the digital display shows:
• Engine oil temperature
• Engine RPM
• Engine coolant temperature
• Battery voltage
• Accumulated engine hours.
This display is also used by service technicians to trou-
bleshoot and diagnose engine fault errors.
Platform Overload/Tilt Warning Lights
There is a platform overload/tilt warning light on the lower
control panel (refer to Figure 5.1) and on the upper control
panel (refer to Figure 5.3).
Figure 5.3 – Upper Controls
Chapter 5 – Gauges and Displays
Diagnostic Center
LCD Display
Platform Overload/
Tilt Warning Light
Engine Oil Temperature
Engine RPM
Battery Voltage
Engine Hours
Not Used
Engine Coolant
Temperature
Platform Overload/
Tilt Warning Light
