S1930E/S1932E/S2632E – 1360460 15
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.
Hour Meter
The hour meter is located on the lower control panel
(refer to Figure 5.1). It measures the accumulated aerial
platform operating time.

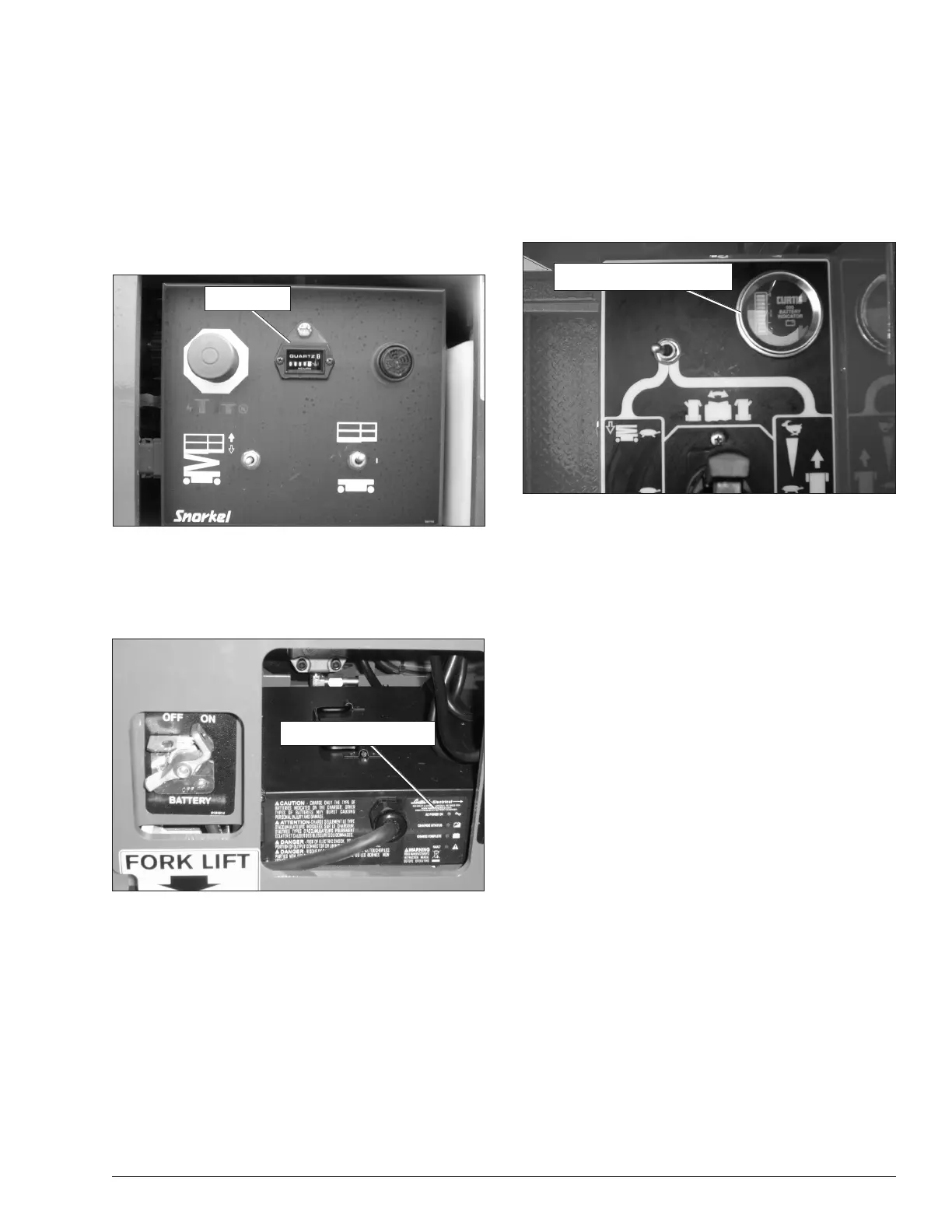

Figure 5.1 – Lower Controls
Battery Charge Indicator
The battery charger has four LED’s (refer to Figure 5.2)
which indicate the charger status.
Figure 5.2 – Battery Charger
The LED’s are visible on the battery tray.
• AC Power On (Blue) – indicates that AC power is
applied to the charger.
• Charge Status (Yellow) – blinks until the batteries
are 80% charged and then remains solid from 80%
to 100% charge.
• Complete Charge (Green) – lights solid when the
batteries are fully charged.
• Fault (Red) – lights solid when there is a battery fault
and blinks when there is a charger fault.
Battery Condition Indicator
The optional battery condition indicator (refer to Figure
5.3) is located on the upper control panel. It displays the
level of available battery power to operate the aerial plat-
form. The number one on the scale indicates full power
and zero indicates no power.
Figure 5.3 – Upper Controls
Chapter 5 – Gauges and Displays
Battery Condition Indicator
Hour Meter
LED Charge Indicators
