socomec COUNTIS E23 User Manual

10 EN
COUNTIS E23/E24 - 545877A - SOCOMEC

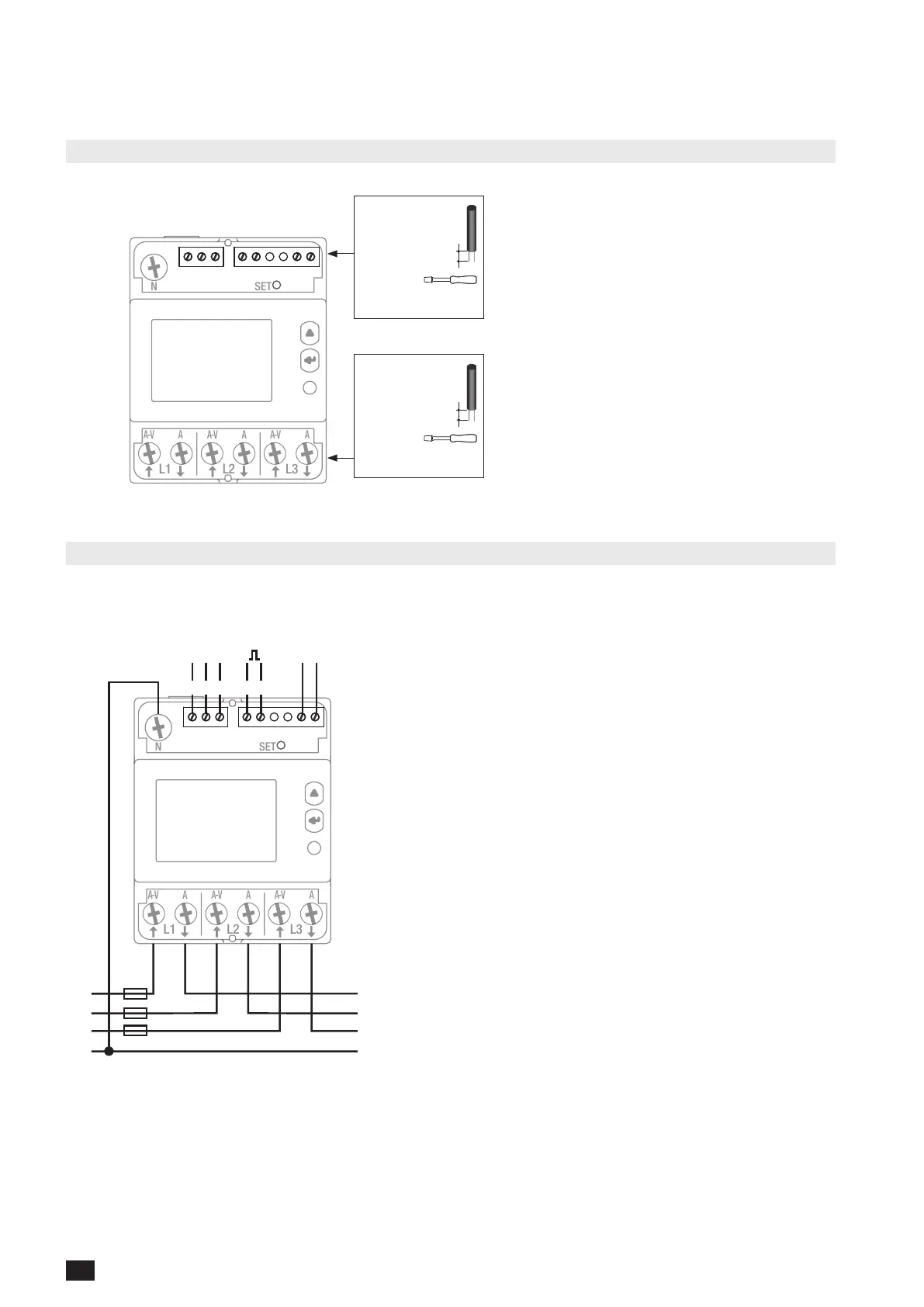

6. CONNECTION
6.1. Connecting the COUNTIS E23/E24
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
1 2 3 4 5 6 7
Fixed / exible
0.14 mm
2
->
2.5mm
2
0.27" / 6.9 mm
PZ2
4.5 lb.in /
0.5 Nm max.
Fixed / exible
1.5 mm
2
->
35mm
2
0.47" / 12 mm
PZ2
17.70 lb.in /
2 Nm max.
6.2. Connection to the electrical network and to the loads
The COUNTIS E23/E24 are intended for three-phase networks with neutral.
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
L1
L2
L3
N
3 x 80A
230/400 VAC 50/60 Hz
1 2 3 4 5 6 7
NC - + - +
COM RS485
MODBUS T1/2
MODBUS
1: NC (not connected). May be used for shielding
continuity.
2: -
3: +
Pulse output
4: -
5: +
Optocoupler pulse outputs
Terminals 4-5 must be supplied with voltage between 5
and 27 VDC (27mA max)
Price list
6-7: Switch tariffs:
0 VAC/DC -> Tariff 1
80-276 VAC/DC -> Tariff 2
Mains
L1 A-V: Phase input
L1 A: Phase output
L2 A-V: Phase input
L2 A: Phase output
L3 A-V: Phase input
L3 A: Phase output
N: Neutral connection
