socomec COUNTIS E23 User Manual

6 EN
COUNTIS E23/E24 - 545877A - SOCOMEC
4. INTRODUCTION
4.1. Introducing the COUNTIS E23/E24
The COUNTIS E23 and E24 are modular active and reactive electrical energy meters that display consumed energy.
They are designed for three-phase networks and allow a direct connection of up to 80 A. They are equipped with a
MODBUS communication Bus.
4.2. Functions
• Measures and displays total and partial energy
• Dual tariff management: T1 / T2
• Electrical parameter measurements: I, U, V, f
• Power, power factor
• RS 485 Modbus communication
• MID version (according to reference)
Description Reference
COUNTIS E23 4850 3050
COUNTIS E24 - Version MID 4850 3051

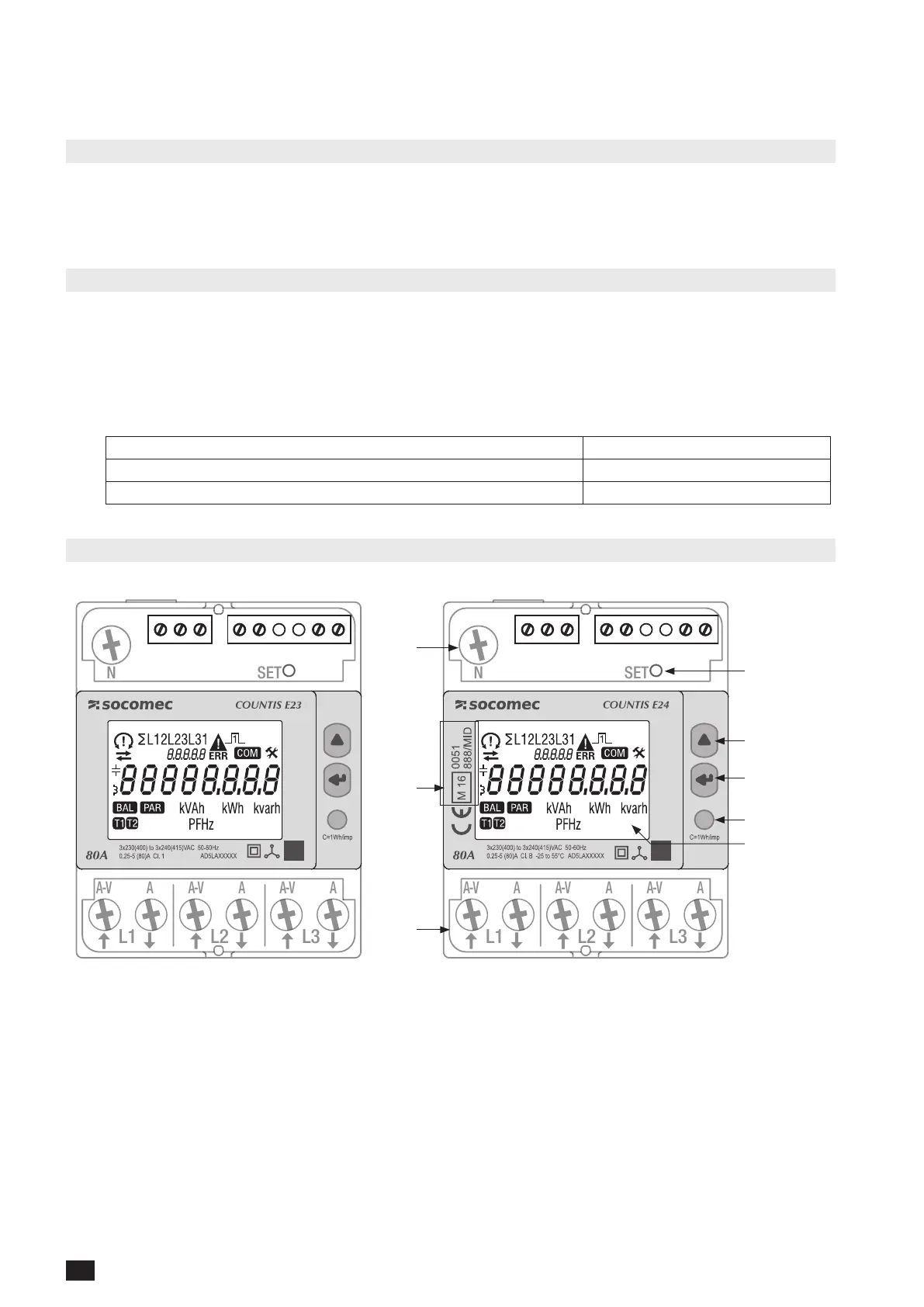

4.3. Front panels
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Three-phase network connection
7. Information relating to MID certification
8. Neutral connection
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
1 2 3 4 5 6 7
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
1 2 3 4 5 6 7
7
6
8
1
2
3
4
5
