COUNTIS ECi - Ref.: 538 470 A

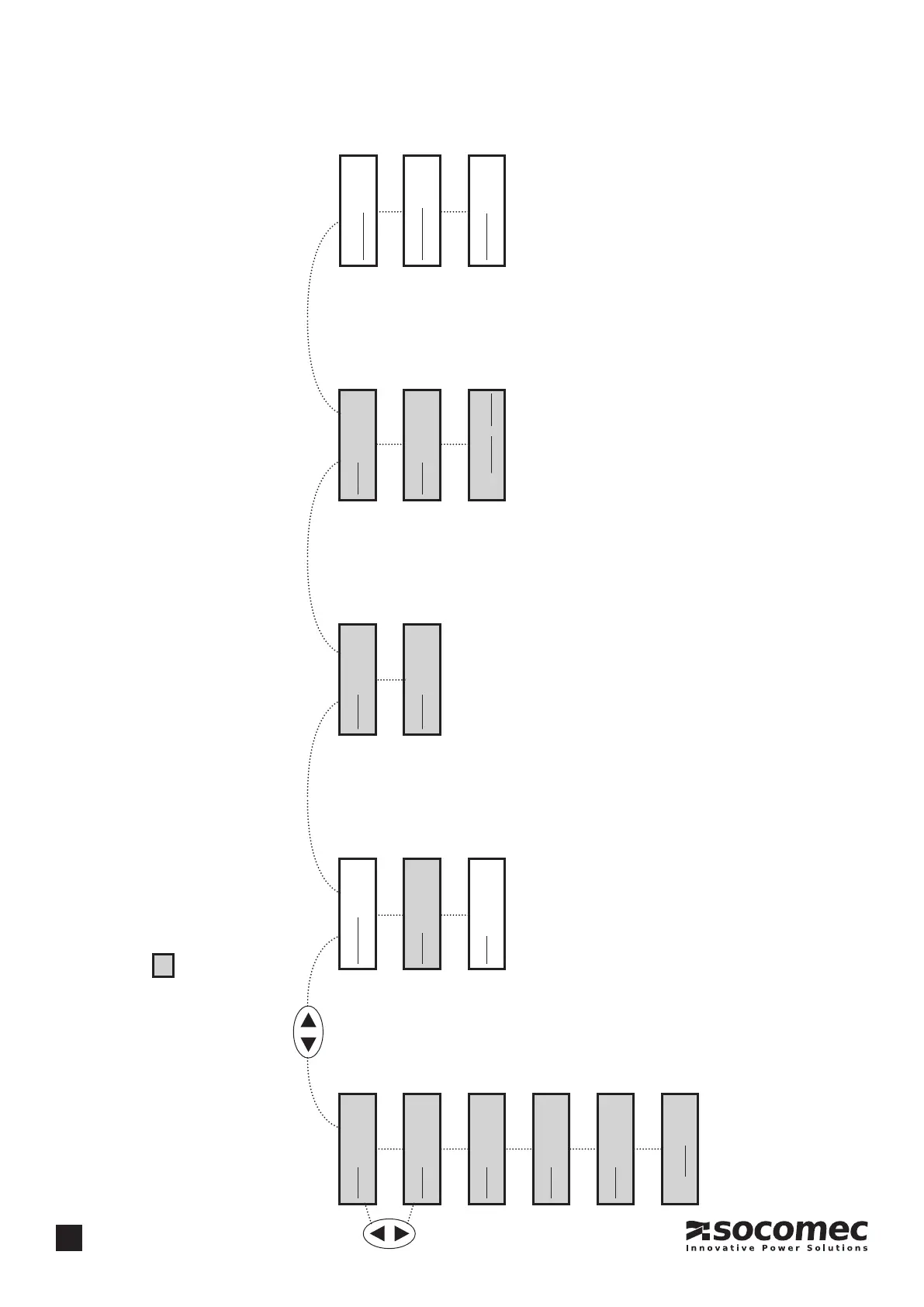

The screens presented in the USAGE / PROGRAMMING charts are not all visible:
their display depends on the version of your COUNTIS ECi and their conguration.
Input 1
Total / Partial
Ana In 1
Rel / Abs
Log. Inputs
Input/State/Pulse
Alarm 1
Type / Sever / State
Date / Time
Total and partial metering Analogue input:
relative value (%) and
absolute value
Digital input:
Logical input, physical status
and presence of pulses
Event 1 information: type,
seriousness, status
Date and time setting
Input 1
Day / Week
Ana In 2
Rel / Abs
Daily and weekly metering Analogue input:
relative value (%) and
absolute value
Input 1
Month / Year
Input 1
Dig. Stat/Phys/Func
Alarm 1
Date / Duration
Top Synchro
Last Top
Monthly and yearly
metering
Inputs 1 to 7
if logical programming
Date and time of start of
event 1 and duration if
completed
Date and time of last sync
signal
Input 1
OnGoing / Custom
Metering since the last
sync signal and personal
metering
Input 1
Tot / Part Cost
Output
Dig. Stat/Phys/Func
Idem Alarm 2 > Alarm 5
Information
Name / Ver / SN
Equivalent in currency of
Total and Partial metering
Logical output and func-
tional status
. Name, software version
and product serial no.
Idem Input 2 >
.
