COUNTIS ECi - Ref.: 538 470 A
A
B
C
D
E
F
G

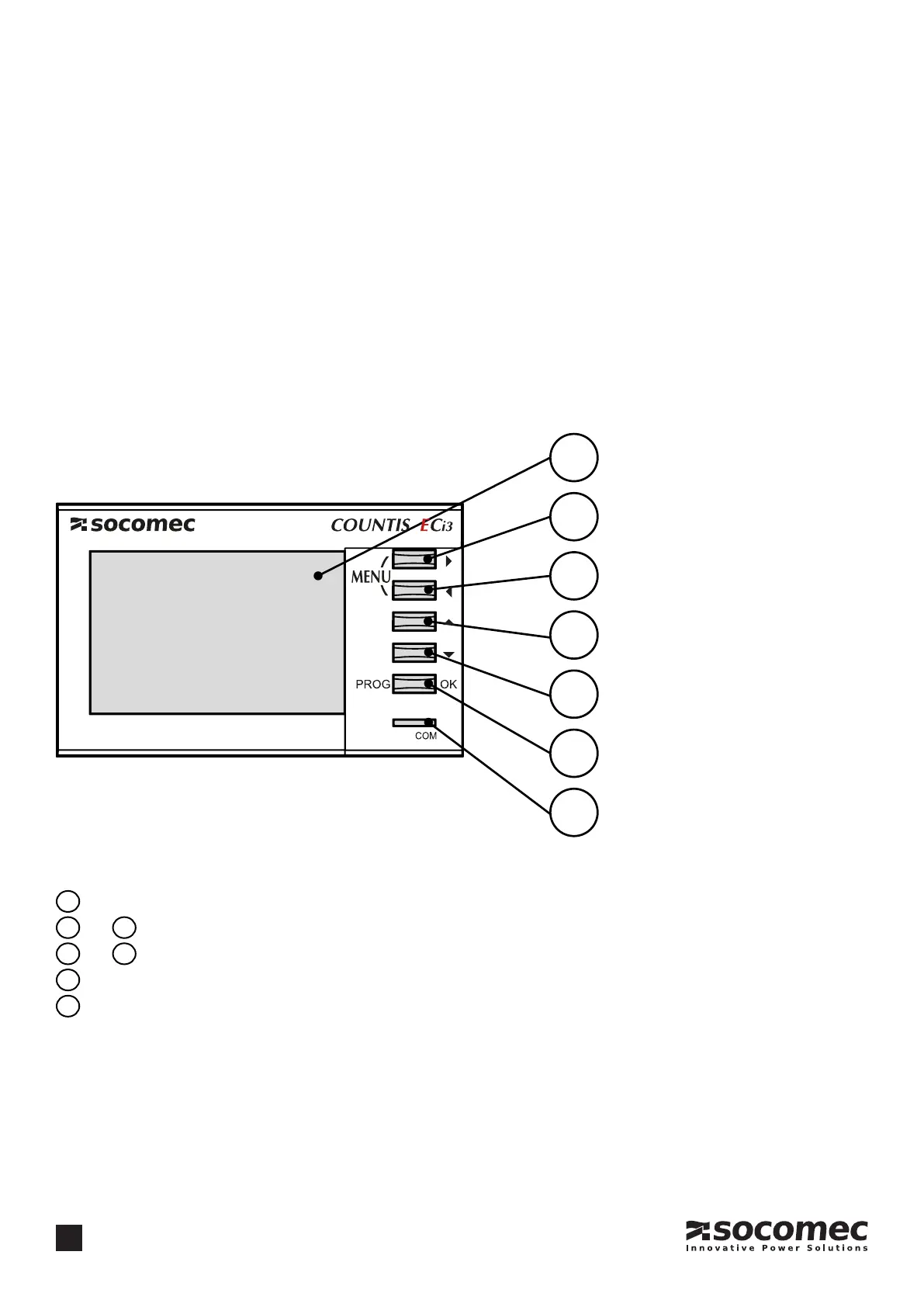

Backlight LCD display
and Keys to scroll through Menu functions (right-left)
and Keys to scroll through Menu sub-functions (top-bottom)
Access key for programming functions (PROG)
LED to indicate communication frame on RS485 port addressed by it
A
B
C
D
E
F
G
The COUNTIS ECi3 has the functionalities of the COUNTIS ECi2.
It also has 2 analogue 0/4-20 mA inputs with the following functionalities:
• Instantaneous relative (%) and absolute (in the chosen unit) values,with direct reading on the display,
• For each analogue input, it memorises values by integrating them over a programmable interval (from 1
to 60 min in 1 min steps) to reconstitute a load graph,
Whatever the chosen integration interval, the "analogue input" load graph is created over a sliding period
of 17 days,
• All information is accessible through JBUS/MODBUS.
