CHAPTER 2: 2 ANALOG OUTPUTS MODULE
The DIRIS A can be fitted with 1 or 2 analogue (0/4–20mA) outputs module. Each module has 2 analogue outputs.
Each output can be assigned to the following values: 3I, In, 3U, 3V, F, P±, Q±, S, PF
L/C
.
On each output, it is possible to configure the value for 0, 4 and 20mA.
2.1- Application:

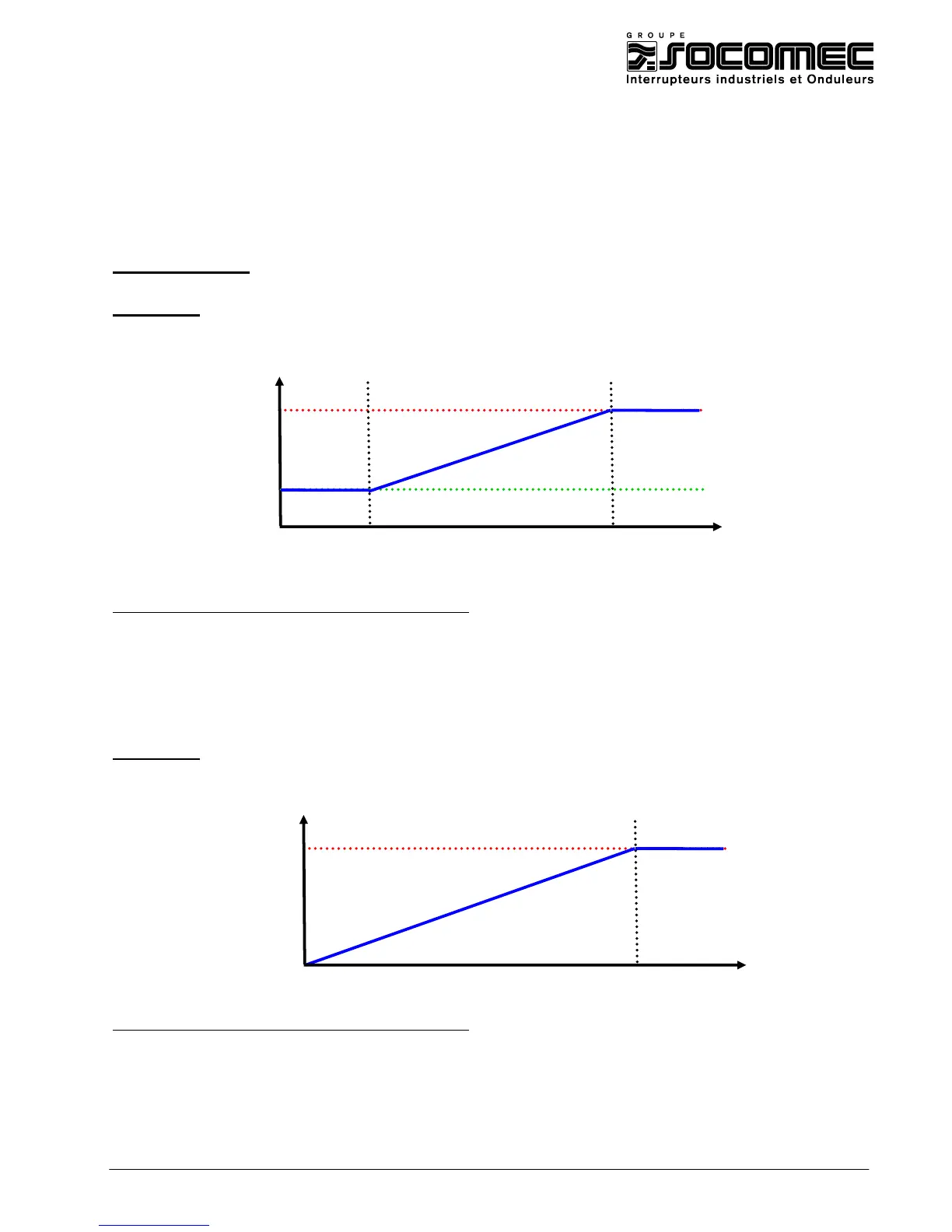

Example 1: Configuration of output 1 on current I1 with 100A at 4mA and 2500A at 20mA.
DIRIS configuration (see instruction manual : 876 586):
 Analogue output type = Out 1 20mA TYPE = 4/20 (4 to 20mA)
 Analogue output allocation = Out 1 20mA PAR = I1 (current phase 1)
 Value at 4mA = Out 1 20mA LV = 0100 / A (100A)
 Value at 20mA = Out 1 20mA HV = 2500 / A (2500A)
Example 2: Configuration of output 2 on total active power  P with 0kW at 0mA and
1500kW at 20mA.
DIRIS configuration (see instruction manual : 876 586):
 Analogue output type = Out 2 20mA TYPE = 0/20 (0 to 20mA)
 Analogue output allocation = Out 2 20mA PAR = P (total active power)
 Value at 0mA = Out 2 20mA LV = 0000 k W (0kW)
 Value at 20mA = Out 2 20mA HV = 1500 k W (1500kW)
100 A
2500 A
20 mA
4 mA
20mA
0mA
1500kW
0kW
