socomec DIRIS A40 Technical Guide

MAN 06 033774 – technical_guide_ DIRIS_A40_A41_C.doc40/Z41 - B 9/27
3.2- Outputs used as command
This function is used with RS85 JBUS/MODBUS or PROFIBUS-DP communication module. Through the
communication, it is possible to change the status of the Diris outputs.

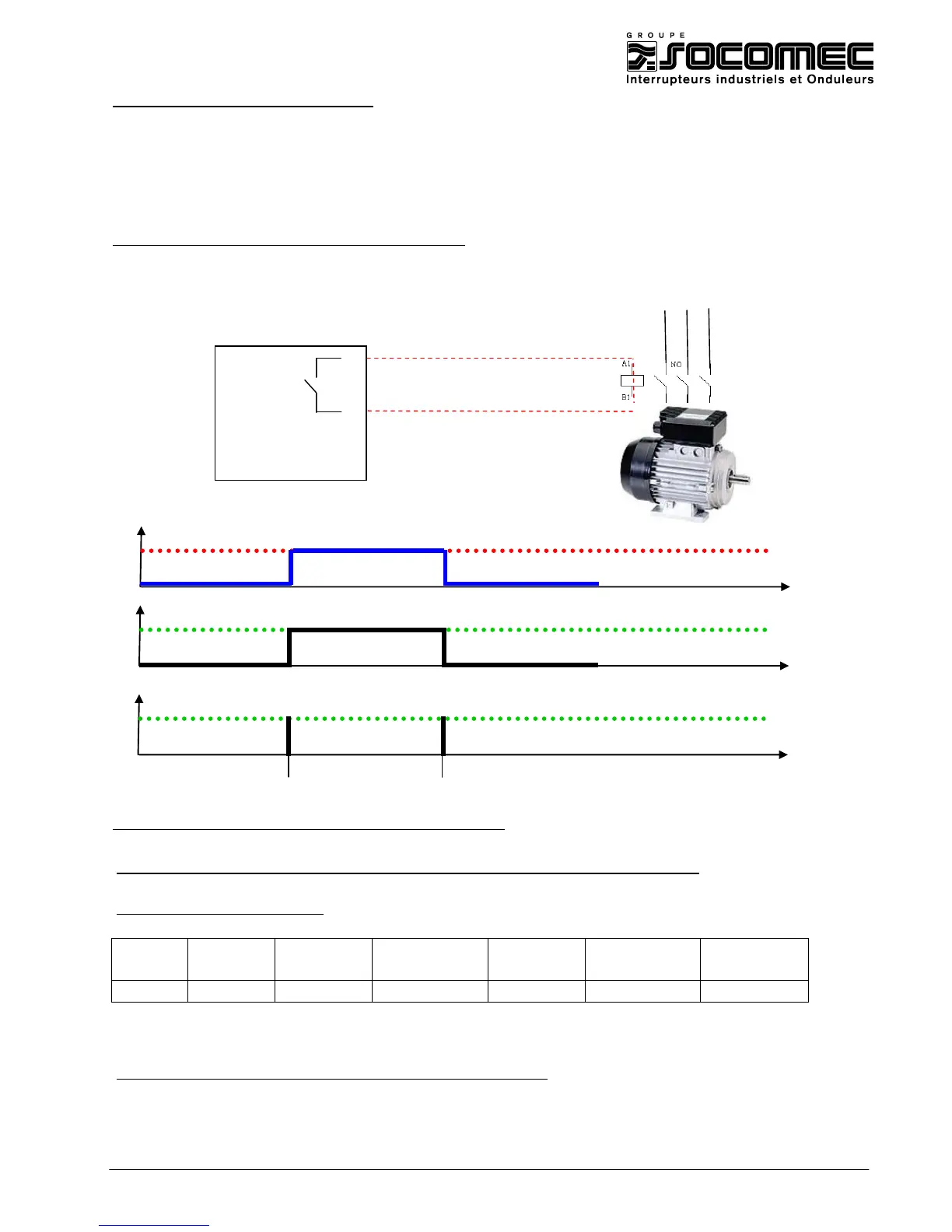

Example 1: Changing the relay 1 status to start an engine remotely.
DIRIS configuration (see instruction manual: 876 587):
 Relay output 1 type = OuT 1 A-Cd TYPE = CdE (Command)
JBUS/MODBUS frame (see instruction manual : CDR27028)
Changing the relay output N°1(addresses Hex. 22E) closed = 1 and opened = 0
Master frame to close the relay:
Slave
Function
Address
Address
Value
Value
CRC16
High-order
High-order
High-order
Low-order
05
06
02
2E
00
01
283F
Closed start
motor
The response of the DIRIS is identical to the request of the Master
9
10
DIRIS A40
OUT 1
Motor
Communication
Address 22E = 1
Address 22E = 0
OFF
ON
OFF
Relay
0
0
1

socomec DIRIS A40 Specifications

General

Type	Multifunction Meter
Display	LCD with backlight
Operating Temperature	-10 to +55 °C
Mounting	Panel mounting
Measurement Parameters	Voltage, Current, Power, Energy, Frequency
Communication	RS485, Modbus RTU
Storage Temperature	-25°C to +70°C
Protection Degree	IP20
Standards	IEC 61557-12
Accuracy	Class 0.5
Dimensions	96 x 96 mm
