iPDU - Ref.: IOMPDUXXXX02-GB 00
2. INTRODUCING iPDU

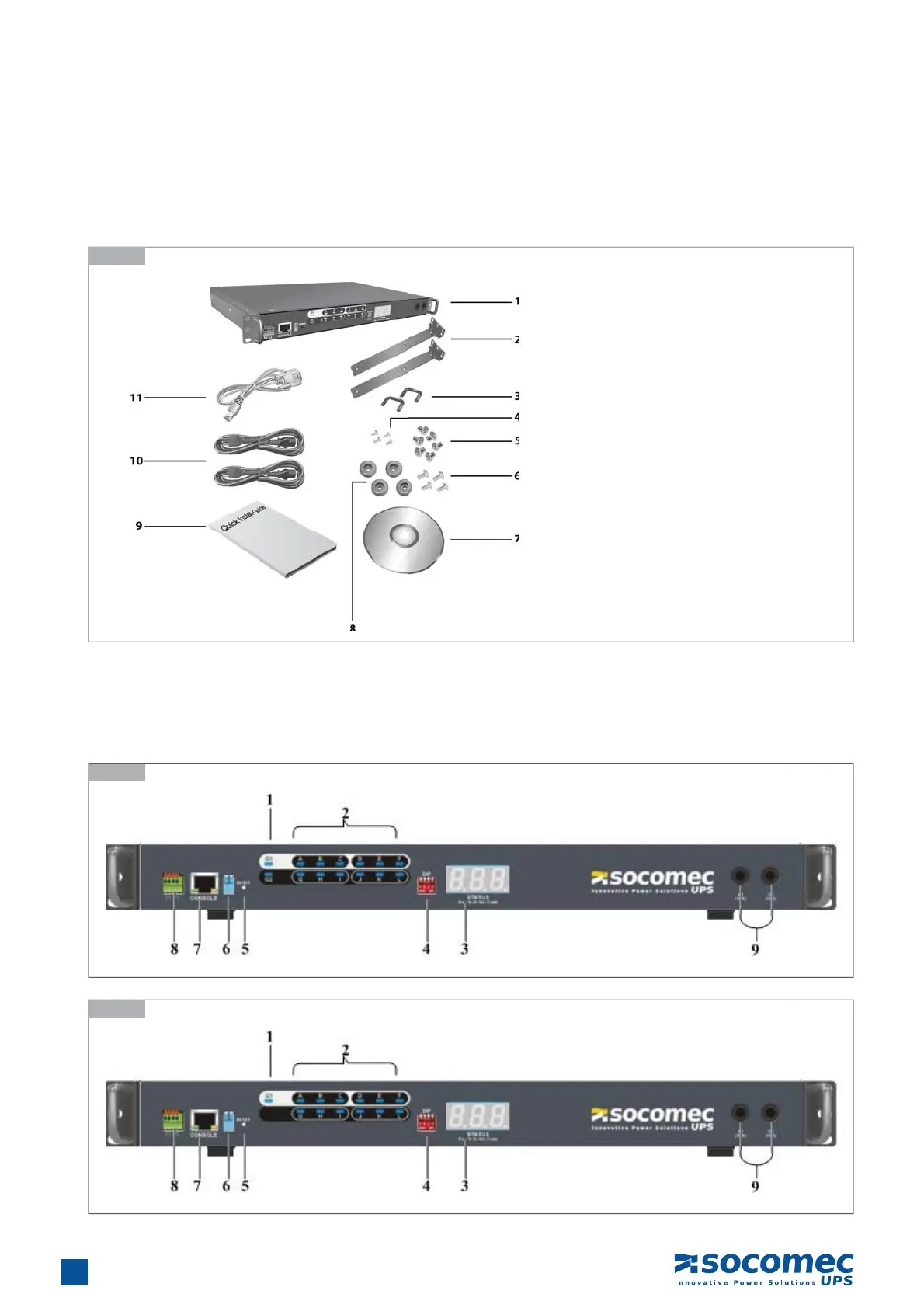

2.2. Package Contents
Make sure the iPDU package has the following items. If any of the items is missing or damaged, contact your nearest service centre
or retailer.
2.2-1
2.3-1
Front Panel of 2-inlet Model
2.3-2
Front Panel of 1-inlet Model
1. iPDU
2. Ears (x2)
3. U-type handles (x2)
4. U-type handle screws (x4)
5. Bracket screws (x6)
6. Feet screws (x4)
7. Software CD
8. Feet (x4)
9. Quick Install Guide
10. Power cable (x2) for 2-inlet model;
Power cable (x1) for 1-inlet model
11. Serial cable
2.3. Hardware Components
Take a moment to familiarise yourself with the iPDU front and rear panels. The following sections provide descriptions of the front
and rear panel components and how to use them.
