MODBUS RTU / MODBUS TCP for Modulys GP 2.0 - ITYS PRO UPS - Masterys GP4 UPS - Masterys BC+ UPS range - Ref.: IOMXXXOPXX00-EN 00
6. MODBUS TABLE MODULYS GP
6.1 UPS architecture
Modular unit
The modular unit has 1 unit, and up to 8 modules plus 1 bypass.
MODBUS allows access to UPS / Unit data and module data.

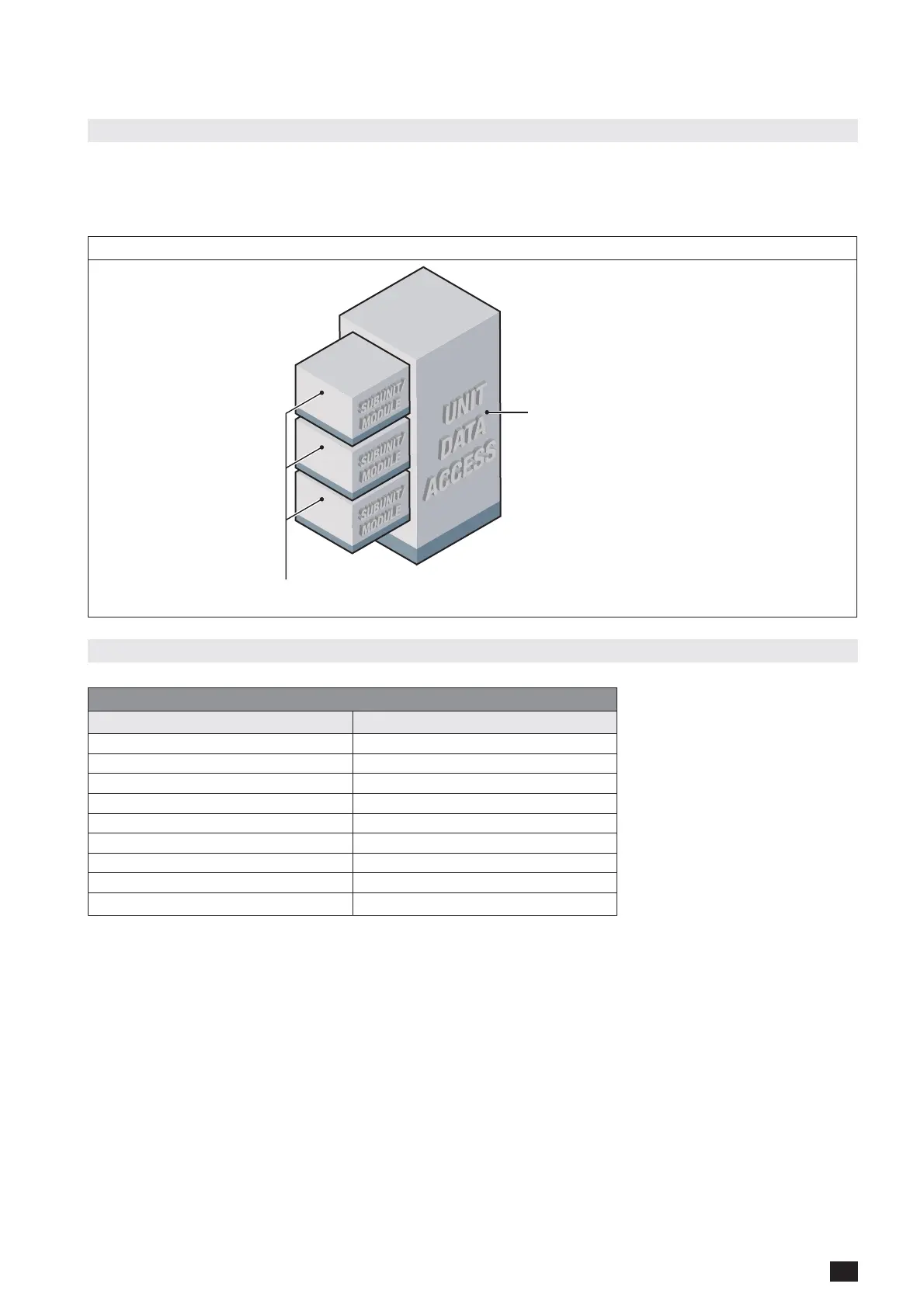

Modular Unit view
Subunit / Module data access
UNIT data access:
summary of module
data
6.2 MODULE access data table mapping
Table of access example
UPS address = UNIT address 0x00nn = 0x10nn
UNIT / Module 1 address 0x11nn
UNIT / Module 2 address 0x12nn
UNIT / Module 3 address 0x13nn
UNIT / Module 4 address 0x14nn
UNIT / Module 5 address 0x15nn
UNIT / Module 6 address 0x16nn
UNIT / Module 7 address 0x17nn
UNIT / Module 8 address 0x18nn
UNIT / Bypass address 0x1Dnn

socomec Masterys BC+ Series Specifications

General

Frequency	50/60 Hz
Efficiency	Up to 96%
Humidity	0-95% non-condensing
Protection Degree	IP20
Topology	Double conversion on-line
Input Voltage	400 V
Output Voltage	400 V
Battery Type	VRLA
Communication	RS232, USB, SNMP
Operating Temperature	0-40 °C
Output Voltage Range	+/- 1%
